Connections
En-16
*
If your TV doesn’t support Audio Return Channel (ARC), you
need to connect an optical digital cable together with the HDMI
cable to the AV receiver.
*
When listening to an HDMI component through the AV
receiver, set the HDMI component so that its video can be seen
on the TV screen (on the TV, select the input of the HDMI
component connected to the AV receiver). If the TV power is off
or the TV is set to another input source, this may result in no
sound from the AV receiver or the sound may be cut off.
Connect your components to the appropriate jacks. The
default input assignments are shown below.
✔: Assignment can be changed (➔ page 52).
See also:
• “Connection Tips and Video Signal Path” (➔ page 89)
• “Using an RIHD-compatible TV, Player, or Recorder”
(➔ page 92)
• “About HDMI” (➔ page 94)
Tip
• To listen to the audio of a component connected via HDMI
through your TV’s speakers, enable “HDMI Through”
(➔ page 66) and set the AV receiver to standby mode.
Note
• In the case of Blu-ray Disc/DVD players, if no sound is output
despite following the above-mentioned procedure, set your Blu-
ray Disc/DVD player’s HDMI audio settings to PCM.
■ Audio Return Channel (ARC) function
The Audio Return Channel (ARC) function enables an
HDMI capable TV to send the audio stream to HDMI OUT
MAIN on the AV receiver.
• This function can be used when:
– Your TV is ARC capable, and
–The TV/CD input selector is selected, and
–“HDMI Control(RIHD)” is set to “On”(➔ page 65), and
–“Audio Return Channel” is set to “Auto” (➔ page 66).
■ MHL (Mobile High-Definition Link)
With its support for MHL (Mobile High-Definition Link),
the AUX (Front) input allows you to deliver high-
definition video from a connected mobile device.

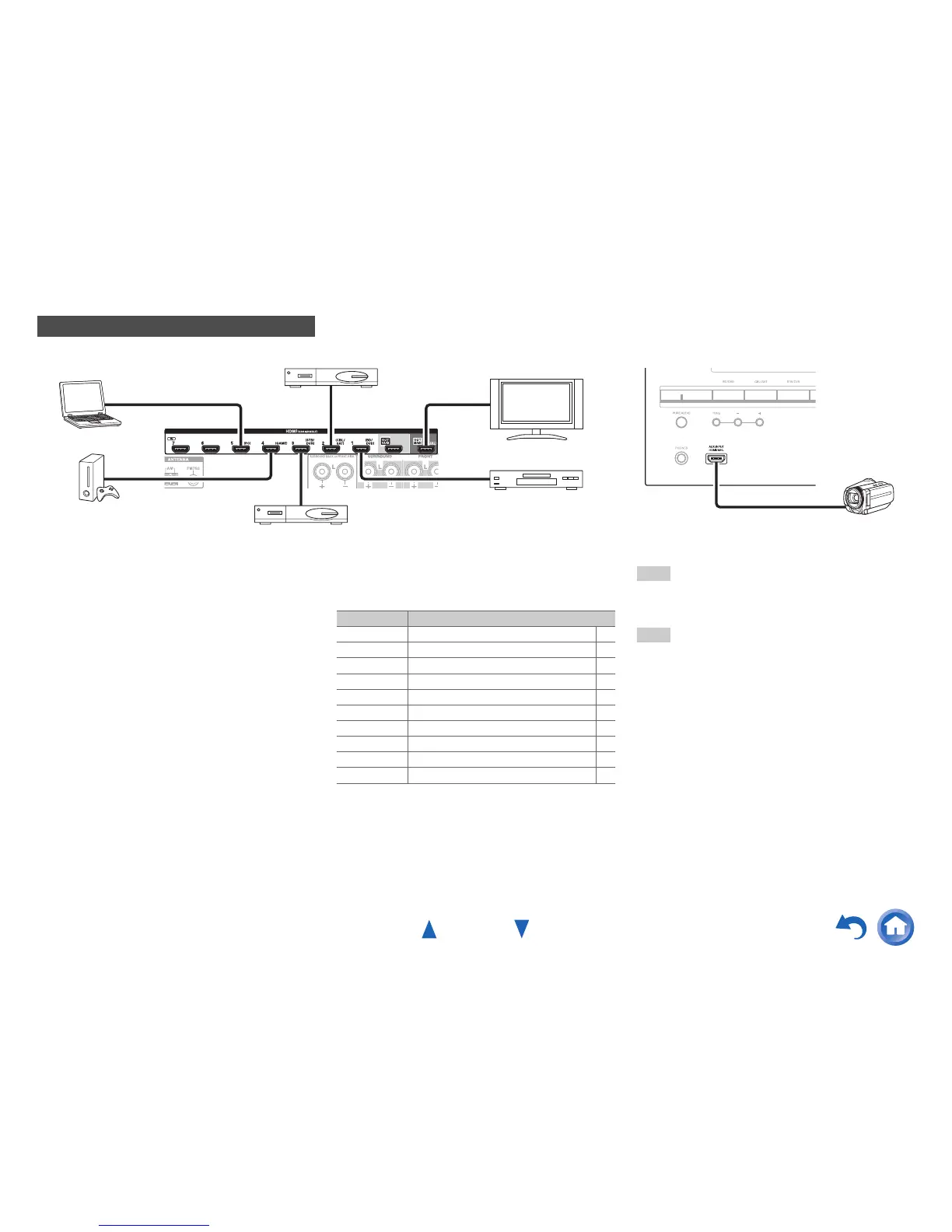

Connecting Components with HDMI
Game console
TV, projector, etc.
Satellite/cable set-top box, etc.
Blu-ray Disc/DVD player
Personal computer
Camcorder, etc.
Set top box/Digital video recorder, etc.
Jack Components
IN1 Blu-ray Disc/DVD player ✔
IN2 Satellite/cable set-top box, etc. ✔
IN3 Set top box/Digital video recorder, etc. ✔
IN4 Game console ✔
IN5 Personal computer ✔
IN6 Other components ✔
IN7 Other components ✔
Front Camcorder, etc.
OUT MAIN TV
OUT SUB Projector, etc.
