Safety Information and Introduction
En-9
s

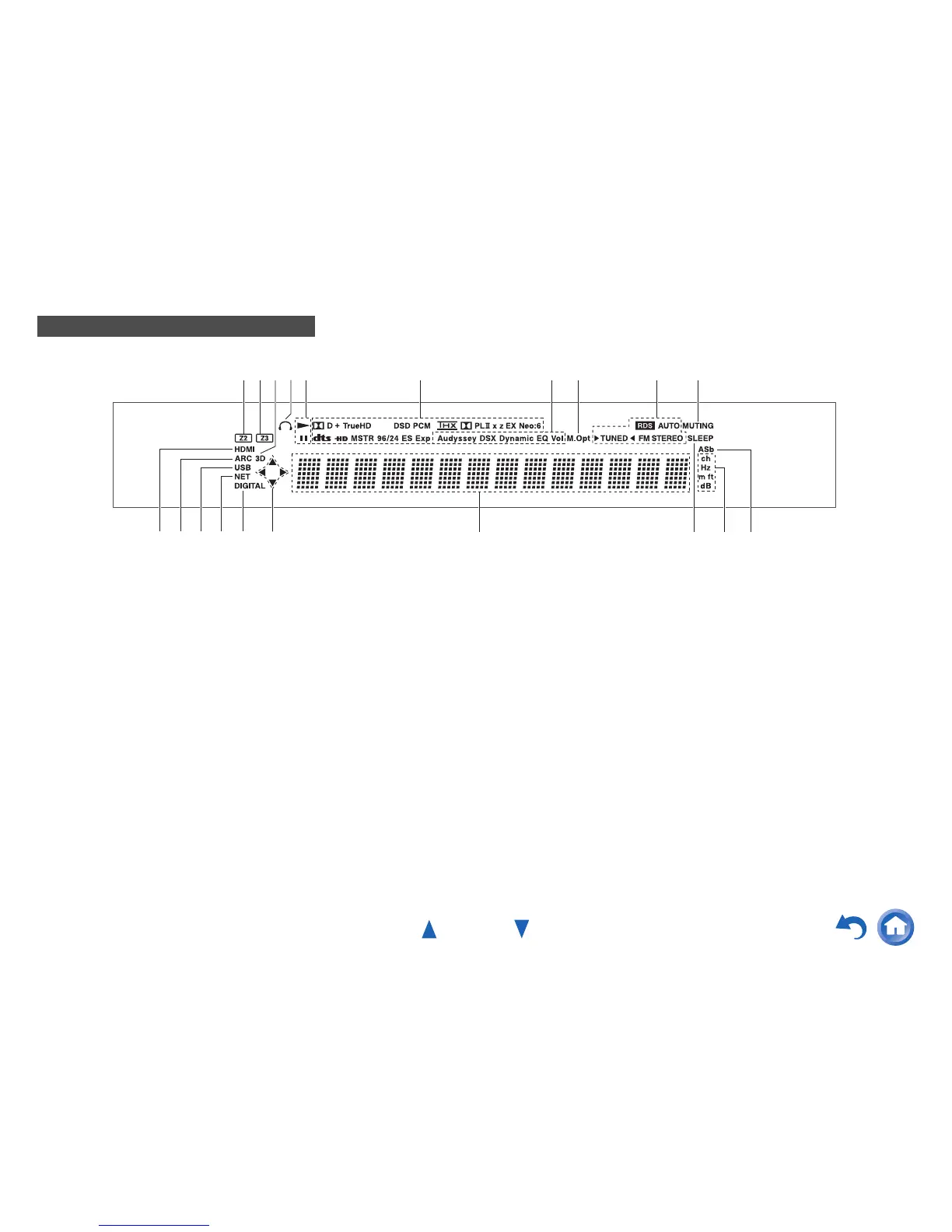

For detailed information, see the pages in parentheses.
a Z2 (Zone 2) indicator (71)
b Z3 (Zone 3) indicator (71)
c 3D indicator
This lights when a 3D input signal is detected.
d Headphone indicator (46)
e 1, 3 and cursor indicators (25)
f Listening mode and format indicators (37)
g Audyssey indicator (34, 59)
Audyssey DSX indicator (41)
Dynamic EQ indicator (59)
Dynamic Vol indicator (59)
h M.Opt indicator (46, 49)
i Tuning indicators
RDS indicator (excluding North American and
Taiwanese models) (32)
AUTO indicator (31)
TUNED indicator (31)
FM STEREO indicator (31)
j MUTING indicator (46)
k Input indicators (90)
HDMI indicator (66)
DIGITAL indicator
l ARC indicator (66)
m USB indicator (25, 26)
n NET indicator (27 to 30, 68)
o Message area
p SLEEP indicator (45)
q Channel/Unit indicators
ch indicator
Hz indicator
m/ft indicator
dB indicator
r ASb indicator (67)
Display
ke o p rln qkm
edf ih
gabcj

Onkyo TX-NR616 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	1
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	620 W
Package weight	13500 g

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	173.5 mm
Weight	11000 g
