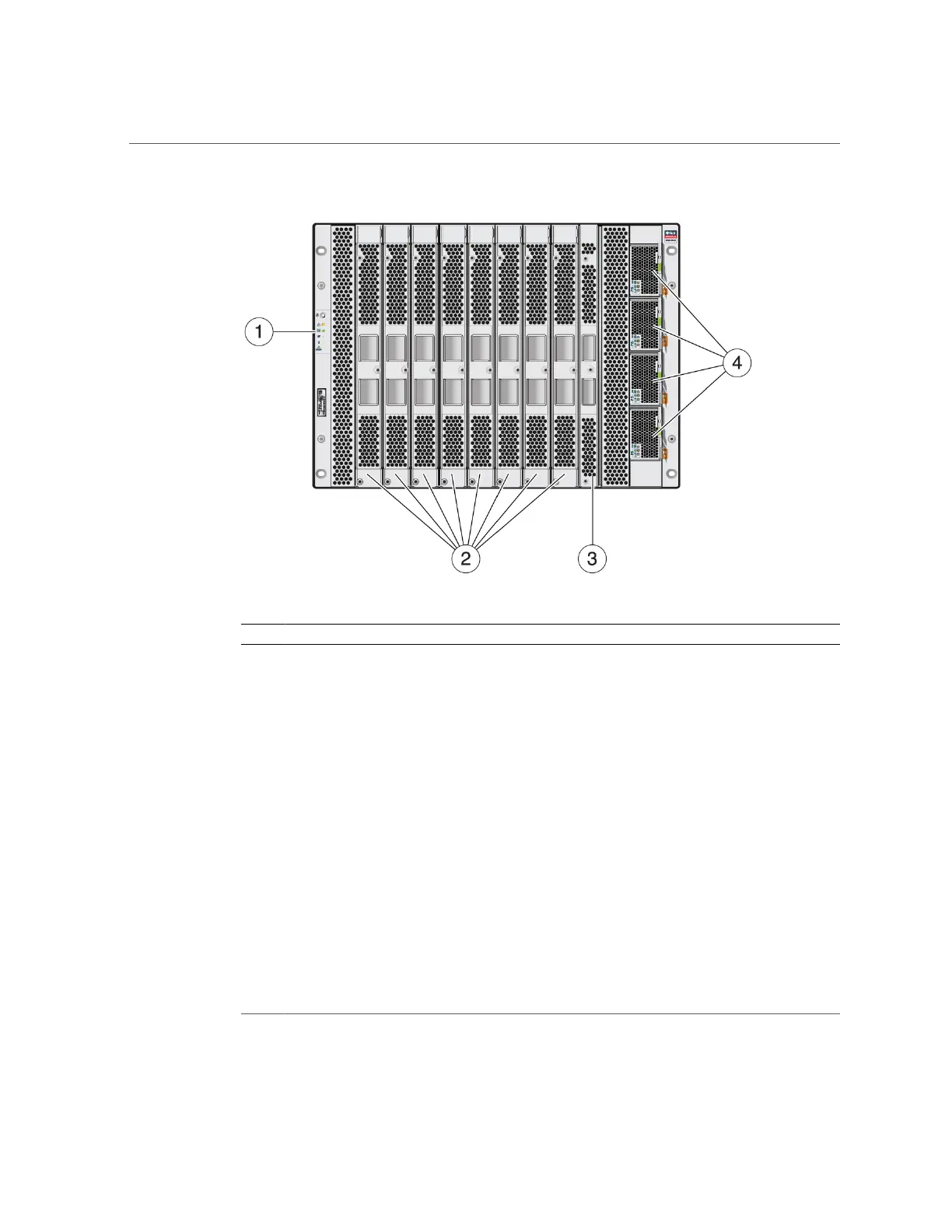

Switch Chassis Front Components (SPARC M7-16)
No. Description Links
1
Front indicator panel (1): FOPNL1
“Servicing the Front Indicator
Panel” on page 217
2 External interconnects, left to right (top CMIOU chassis slot,
switch chassis slot):
■
XI_N_4_B2T_S (slot IT_15, slot IT_6)
■
XI_N_4_B2T_S (slot IT_16, slot IT_8)
■
II_W_4 (slot IT_17)
■
XI_N_4_B2T_S (slot IT_18, slot IT_10)
■
XI_N_4_B2T_S (slot IT_19, slot IT_12)
External interconnects, left to right (bottom CMIOU chassis slot,
switch chassis slot):
■
XI_N_4_T2B_S (slot IT_0, slot IT_7)
■
XI_N_4_T2B_S (slot IT_1, slot IT_9)
■
II_W_4 (slot IT_2)
■
XI_N_4_T2B_S (slot IT_3, slot IT_11)
■
XI_N_4_T2B_S (slot IT_4, slot IT_13)
“Servicing External Interconnect
Assemblies” on page 305
3 SP internal interconnect (1):
■
II_CMIOU_SP (top CMIOU chassis slot, IT_20)
“Servicing SP Internal Interconnect
Assemblies” on page 285
24 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
