Digital
transmitter*
Center
speaker
Put on a rack or shelf.
Vibration caused by the
speaker can disrupt the
if it
is placed directly
on the
TV.
Main
unit
To
allow for proper ventilation and to maintain
good airflow around the main unit, position it with
at least 5 cm (2") of space on all sides.
e·g·mm
Surround
speakers
-
II
mm
Keep your speakers at least 10 mm
('3132")
away from the system for
proper ventilation.
Setup
example
Place the front, center, and surround speakers at approximately the
same distance from the seating position. The angles in the diagram are
approximate.
* Do not use the wireless system or
the digital transmitter in a metal
cabinet or bookshelf.
e·g·mm
Front
speakers

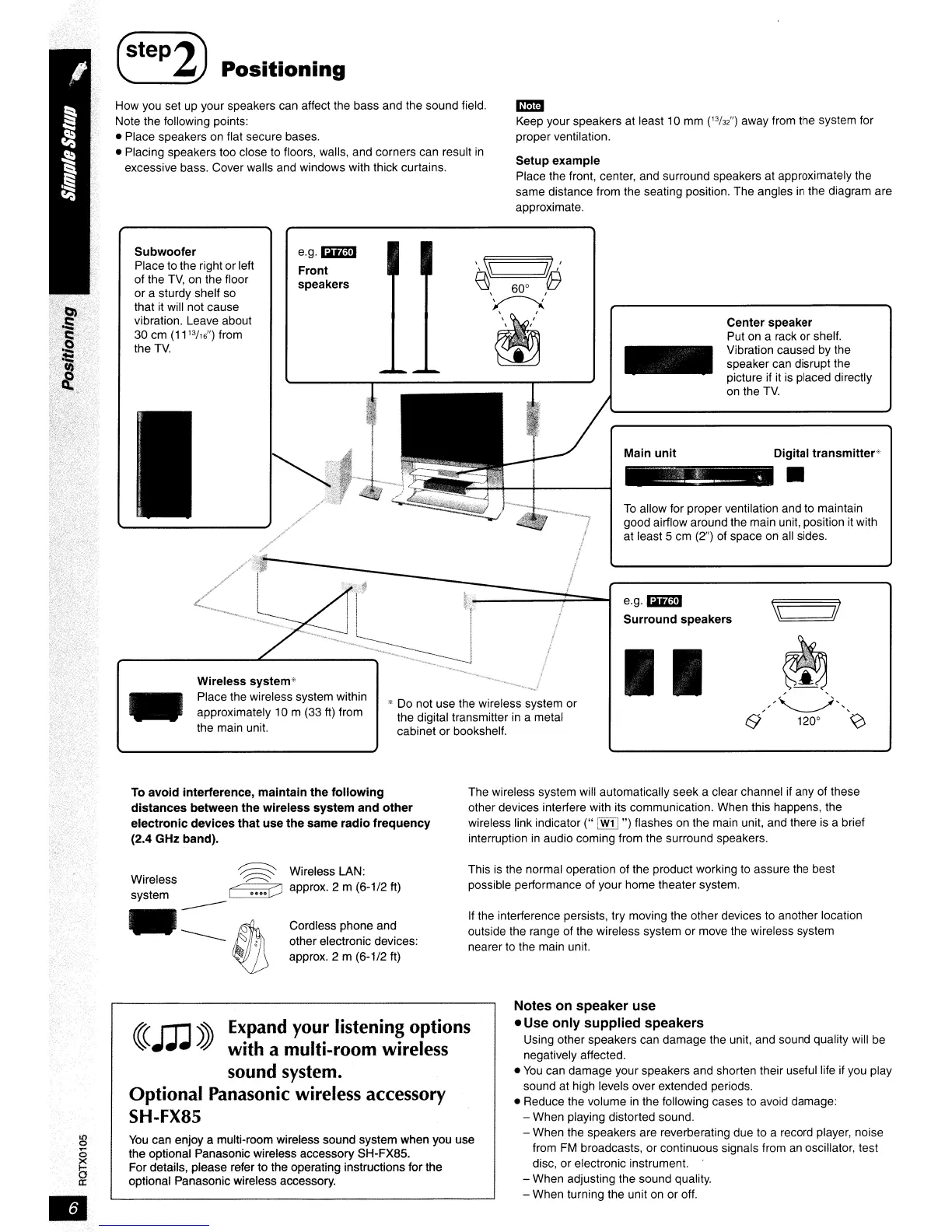

Positioning
Wireless
system'~
Place the wireless system within
approximately
10m
(33 It) from
the main unit.
Subwoofer
Place to the right or lelt
of the
TV,
on the floor
or a sturdy shelf so
that it will not cause
vibration.
Leave about
30 cm
(11
'3
/'6') from
the
TV.
-
How you set up your speakers can affect the bass and the sound field.
Note the following points:
• Place speakers on flat secure bases.
• Placing speakers too close to floors, walls, and corners can result
in
excessive bass. Cover walls and windows with thick curtains.
To
avoid
interference,
maintain
the
following
distances
between
the
wireless
system
and
other
electronic
devices
that
use
the
same
radio
frequency
(2.4 GHz band).
The wireless system will automatically seek a clear channel if any of these
other devices interfere with its communication. When this happens, the
wireless link indicator
("
[!ill")
flashes on the main unit. and there is a brief
interruption
in
audio coming from the surround speakers.
~
Wireless
~
system
~
-==~
Wireless LAN:
approx. 2 m (6-1/2
It)
Cordless phone and
other electronic devices:
approx. 2 m (6-1/2
It)
This is the normal operation of the product working to assure the best
possible performance of your home theater system.
If
the interference persists, try moving the other devices to another location
outside the range of the wireless system or
move the wireless system
nearer
to
the main unit.
•
{(
rn
J!'
Expand your listening options
~
_..
IJ)
with a multi-room wireless
sound system.
Optional Panasonic wireless accessory
SH-FX85
You
can enjoy a multi-room wireless sound system when you use
the optional Panasonic wireless accessory SH-FX85.
For details, please refer to the operating instructions for the
optional Panasonic wireless accessory.
Notes on speaker use
• Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be
negatively affected.
•
You
can damage your speakers and shorten their useful life
if
you play
sound at high levels
over extended periods.
• Reduce the
volume
in
the following cases to avoid damage:
- When playing distorted sound.
- When the speakers are reverberating due to a record player, noise
from
FM
broadcasts, or continuous signals from
an
oscillator, test
disc, or electronic instrument.
- When adjusting the sound quality.
- When turning the unit on or off.
To Next Page
