(Continued on next page)
e.g.
Center speaker
Speaker cable sticker (included)
Attach the speaker-cable stickers to
make connection easier. ~
Push!
Insert the wires, taking care
not to insert beyond the wire
insulation.
Insert fully.
• Be careful not to cross (short circuit) or reverse the polarity of the
speaker wires as doing so may damage the speakers.
Insert the wire fully.
+:White
-: Blue
Main unit
Wireless system
Insert the wires
correctly.

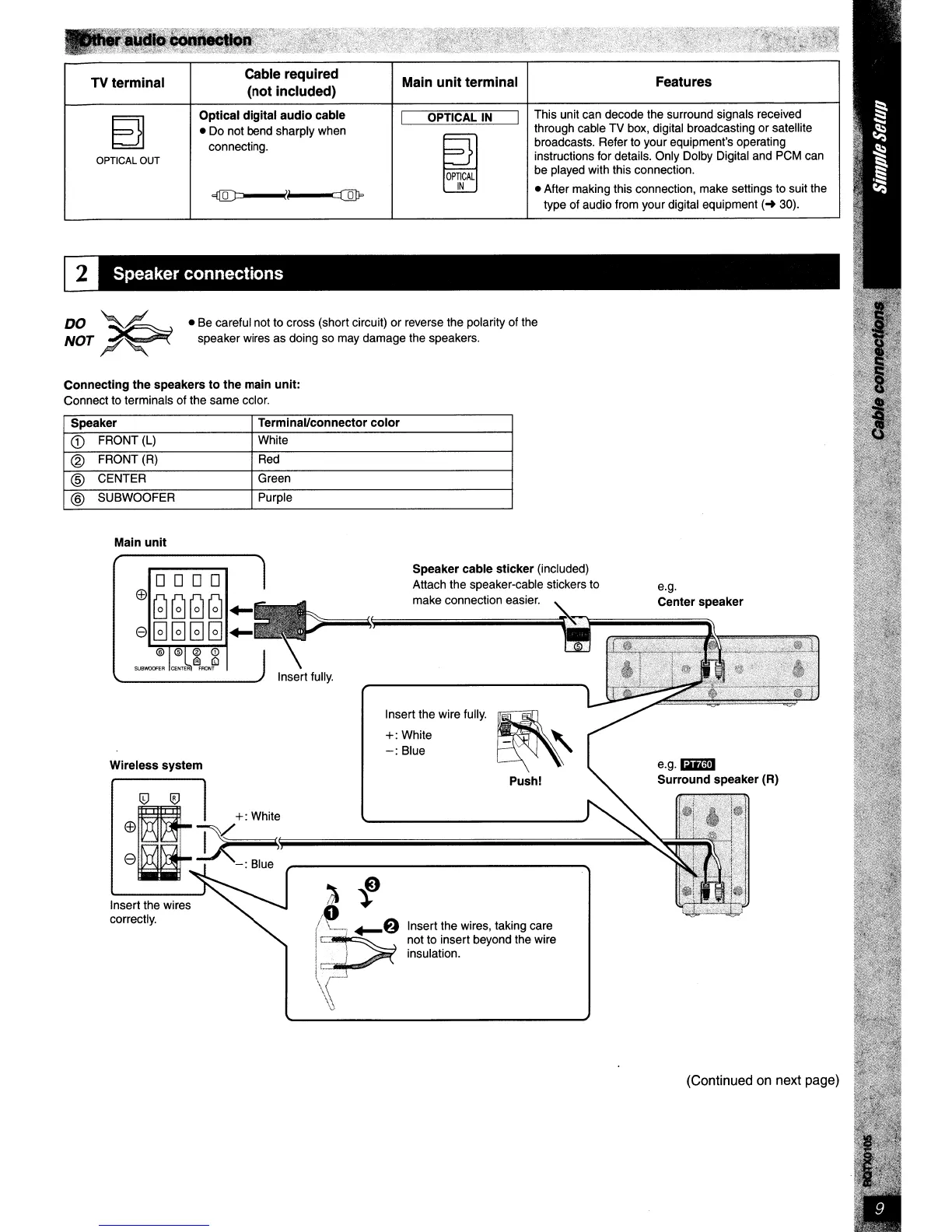

Connecting the speakers to the main unit:
Connect to terminals of the same color.
TV terminal
Cable required
Main unit terminal Features
(not included)
8
Optical digital audio cable
I
OPTICAL IN
I
This unit can decode the surround signals received
• Do not bend sharply when
through cable TV box, digital broadcasting
or satellite
connecting.
broadcasts. Refer to your equipment's operating
OPTICAL OUT
instructions for details. Only Dolby Digital and PCM can
~
be played with this connection.
c@):=
II
:::::(QJP
IN
• After making this connection, make settings to suit the
type
of audio from your digital equipment (~ 30).
Speaker TerminaVconnector color
CD
FRONT (L) White
®
FRONT (R)
Red
@
CENTER Green
®
SUBWOOFER Purple
DO . d
NOrRt
II Speaker connections

Panasonic SC-PT760 Specifications

General

RMS rated power	1000 W
Audio output channels	7.1 channels
Optical disc player type	DVD player
Surround speaker weight	598.6 g
Surround speaker dimensions (WxHxD)	95.2 x 92 x 142 mm
FM antenna	Yes

Weight and Dimensions

Center speaker weight	1315.1 g
Receiver dimensions (WxDxH)	89.6 x 164.3 x 165.1 mm
Subwoofer dimensions (WxDxH)	361.5 x 315.1 x 180.9 mm
Front speaker dimensions (WxDxH)	1123.1 x 234.9 x 251.6 mm
Center speaker dimensions (WxDxH)	93.6 x 95.2 x 269.8 mm
Satellite speaker dimensions (WxDxH)	142 x 92 x 95.2 mm
