20
English
Chapter 2
Installation

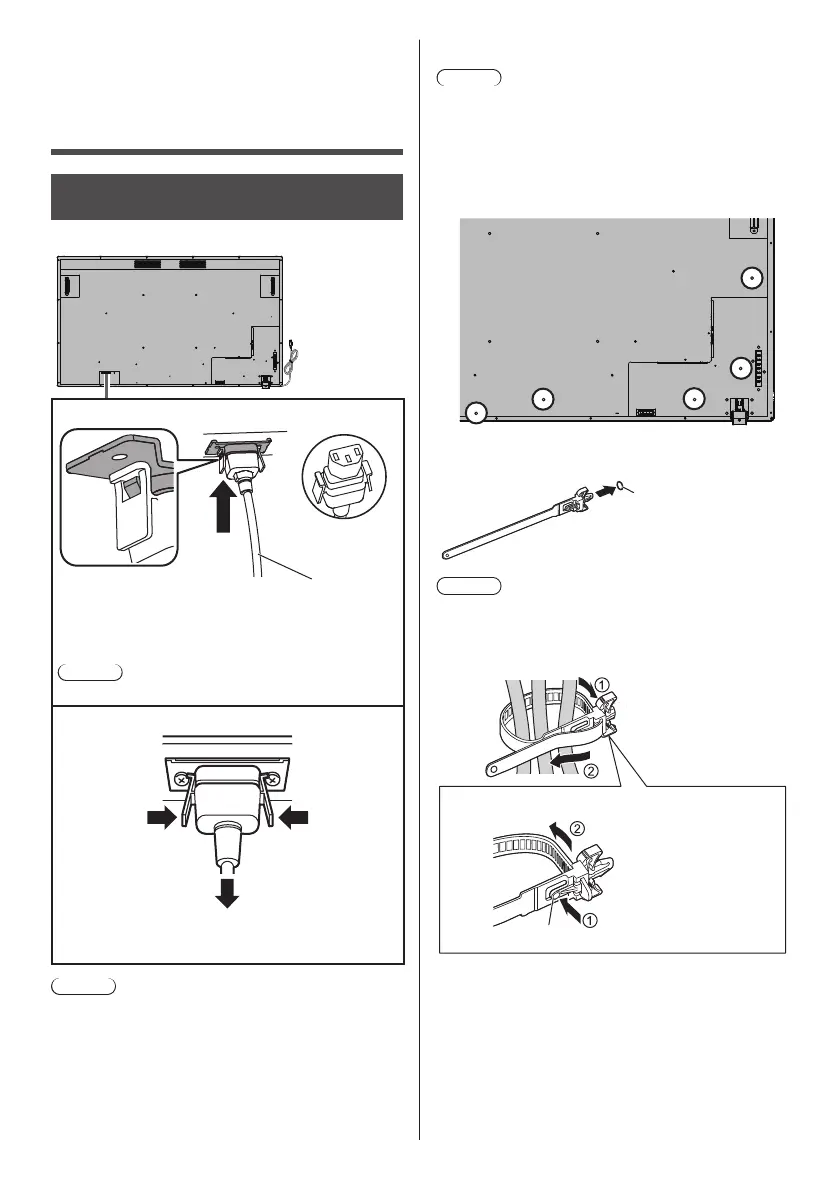

Connecting and fixing the power
supply cord
Back side of the unit
Fixing the power supply cord
Power supply cord (supplied)
Insert the connector in the main unit
Insert until you hear the clicking sound.
Note
●
Check that both sides are locked.
When removing the power supply cord
Remove while pressing the knobs located next to the
connector.
Note
●
When removing the power supply cord, make sure
to first remove the power supply plug on the power
socket side.
●
The power supply cord provided in the accessories is
for exclusively using with the device. Do not use it for
any other purpose.
Fixing the connection cables
Note
●
Three clampers are provided as accessories with
the device. When not using the touch panel, use one
of the clampers to fix the USB cable for touch panel
at the position of A. Moreover, with the other two
clampers, fix the other cables at the position of B. If
you wish to purchase clampers, please contact your
dealer. (Available from the customer service)
A
B
B
B
B
1. Mounting the clampers
Mounting hole
Insert the convex part in the
mounting hole.
Note
●
Once you mount the clampers in the clamper
mounting holes, you will not be able to remove them.
2. Bundling the cables
Pull the tip of the band
while pressing the
knob.
Pass the band and
pull it.
Loosening the band
Knob
To Next Page
