USER MANUAL PANDORA ELITE V2
IMMOBILIZER RADIO TAG
A radio tag is a device used to control a vehicle/system. The tag is also used as an authorization device
for “Immobilizer/Anti-Hi-Jack/Hands Free” modes. It works in the Bluetooth coverage zone. The radio
tag has:
- a control button
for arming/disarming and activating/deactivating service mode;
- a built-in accelerometer allows the tag to go into energy saving mode when there is no movement;
- an LED indicator SEND.

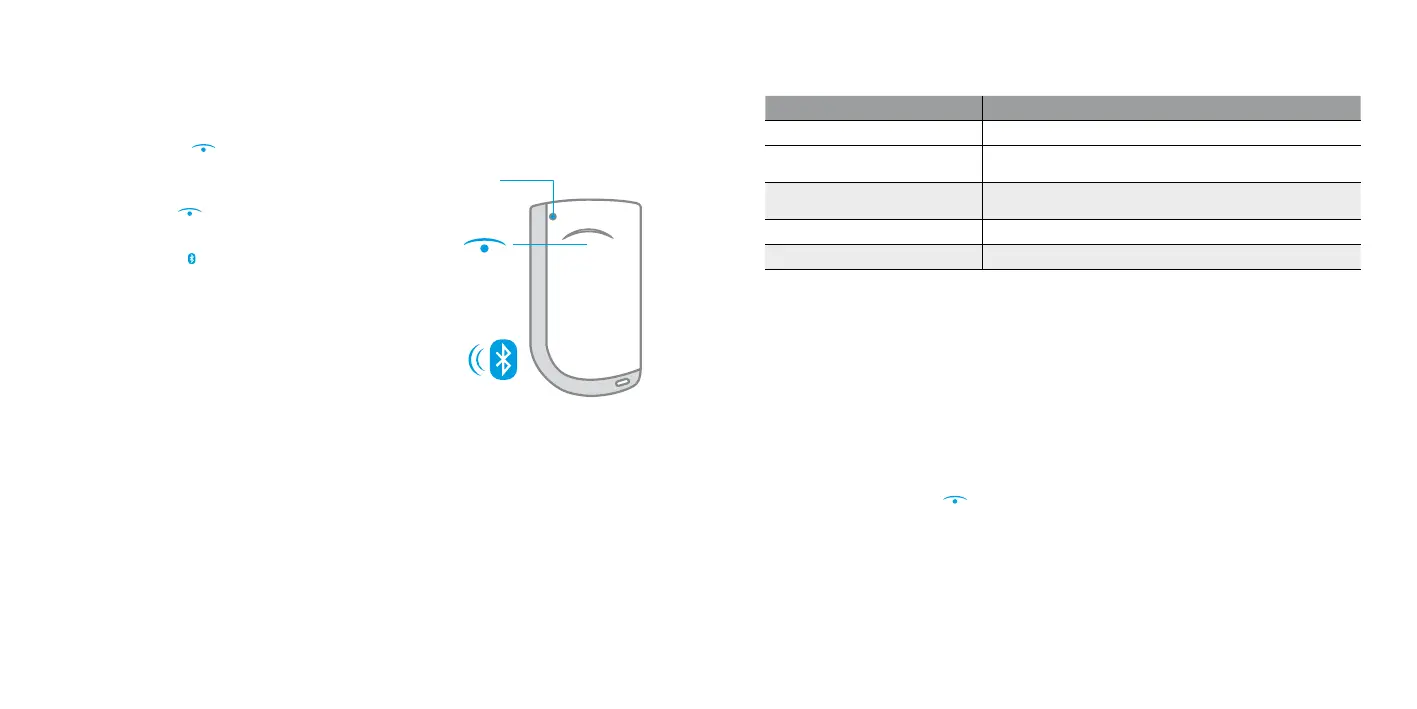

• Control button
for arming/disarming and activating/
deactivating service mode
• LED indicator SEND
• Bluetooth protocol
• Built-in accelerometer
• CR 2032 Battery
Light indication of the SEND indicator when there is a
short press of the button
• No flashes – a battery is discharged
• 1 flash – radio tag operation is correct
Light indication of the SEND indicator when installing a battery
• No flashes – a battery is discharged
• 1 flash – low battery level
• flashes – high battery level
!
AvoId moIstuRe oN the RAdIo tAG. do Not plAce the RAdIo tAG NeAR mAGNets oR pRoducts WIth self-mAGNetIc fIelds
SEND
Functions of the button
ACTION FUNCTION
Short press when ignition is o Arm/disarm
Press and hold for 2 sec when the
system is disarmed
Change the “Main owner’s phone number”
Press and hold for 3 sec when ignition
is on
Activate/deactivate Service mode
Press and hold for 6 sec. Pair a tag with the base unit
Press and hold for 10 sec. Firmware update
Replacing an immobilizer tag battery
Carefully open the cover of the tag’s battery compartment. Extract discharged battery and insert a
new one keeping in mind the correct polarity. Replacing a battery will not cause a loss of tag code
information, as authorization data is stored in the non-volatile memory of the MCU. Carefully close the
cover of the tag’s battery compartment. All elements of construction should be rigidly locked in places.
If it is so, the tag can be operated as usually.
Updating rmware of the tag
• Download the Pandora BT application (for Android or iOS devices equipped with a Bluetooth 4.0 Low
Energy or higher module).
• Open the mobile app Pandora BT.
• Press and hold the button
of the radio tag until the 10th flash of the «SEND» indicator, then
release the button.
• Select the found device and select one of the update option: FILE MANAGER – firmware will be
uploaded from the phone storage (only for Android). INTERNET – firmware will be uploaded by an
internet connection.
