Pentair intellidrive pid20 User Manual

Description 4
Specifications/Ratings
Input Voltage ........... 1-Phase 230VAC Nominal (190–265VAC)
Input Frequency ......................................................... 50/60Hz
Ambient Temperate Range ............ -4 to 122 °F (-20° to 50 °C)
Output Connections ..................3-Phase, 3-Wire/1-Phase or
1-Phase/2-Wire
MaxMotorCableLength .......................................... 1,000 feet
Enclosure .................................................................. NEMA3R
Table 1 - Specifications
Model Motor Type*
HP
Range
Input
Voltage
Maximum
Output
AMPS
Enclosure
Type
PID10
2-WIRE 1-PHASE
0.5–1 HP
190V –
265V
9.5A
NEMA3R
outdoor
3-WIRE 1-PHASE 7.5A
3-PHASE 5A
PID20
2-WIRE 1-PHASE 0.5–1.5 HP 11A
3-WIRE 1-PHASE
0.5–2 HP
13.5A
3-PHASE
8.5A
PID30
2-WIRE 1-PHASE 0.5–1.5 HP 11A
3-WIRE 1-PHASE 0.5–2 HP 13.5A
3-PHASE 0.5–3 HP 11.5A
PID50
2-WIRE 1-PHASE 0.5–1.5 HP 11A
3-WIRE 1-PHASE 0.5–2 HP 13.5A
3-PHASE 0.5–5 HP 18A
* Select drives by S.F. amps of pump motor.
The PENTEK INTELLIDRIVE is specifically designed
to operate 4” submersible pumps and 3-phase
above ground pumps in water well and residential
booster applications. Each Drive is rated for
maximum output amp rating. Any use of Drive
outside of intended design parameters will void
warranty. If Drive is used with above ground motors
not rated for a Variable Frequency Drive, maximize
motor life by limiting lead length to 25 ft. Refer to
pumpOwner’sManualandtheNationalElectrical
Code for proper wire size.
Each carton contains:
• PENTEK INTELLIDRIVE Variable Frequency Drive
•PressureTransducer
•10’PressureTransducerCable
•QuickStartGuide
•Owner’sManual
PENTEK INTELLIDRIVE Model Number Structure
PIDXX
Product Family
PID - PENTEK INTELLIDRIVE
HP Range
10 = up to 1.0 HP
20 = up to 2.0 HP
30 = up to 3.0 HP
50 = up to 5.0 HP
The PID10 will operate a 1-Phase 2-Wire, 1-Phase
3-Wire, and 3-Phase motor up to 1HP.
The PID20 will operate a 1-Phase 2-Wire up to 1.5HP
and a 1-Phase 3-Wire or 3-Phase motor up to 2HP.
The PID30 will operate a 1-Phase 2-Wire up to 1.5HP,
1-Phase 3-Wire up to 2HP or 3-Phase motor up to 3HP.
The PID50 will operate a 1-Phase 2-Wire up to 1.5HP,
1-Phase 3-Wire up to 2HP, or 3-Phase motor up to 5HP.

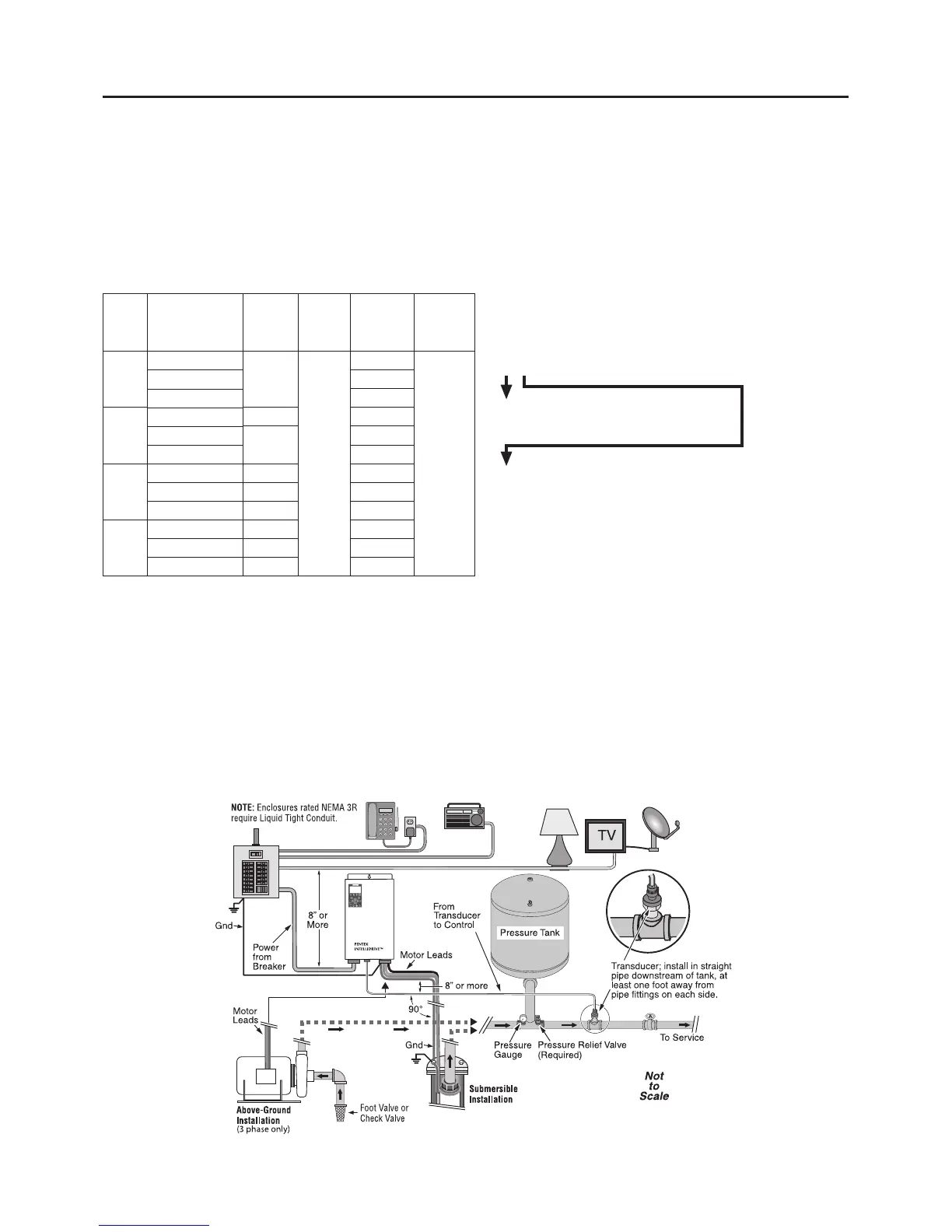

Figure 1 - A typical residential installation layout
