INTELLIFLO
®
VS+SVRS and INTELLIPRO
®
VS+SVRS Variable Speed Pump Installation and User’s Guide
30
INTELLIFLO
®
VS+SVRS and INTELLIPRO
®
VS+SVRS Variable Speed Pump Installation and User’s Guide

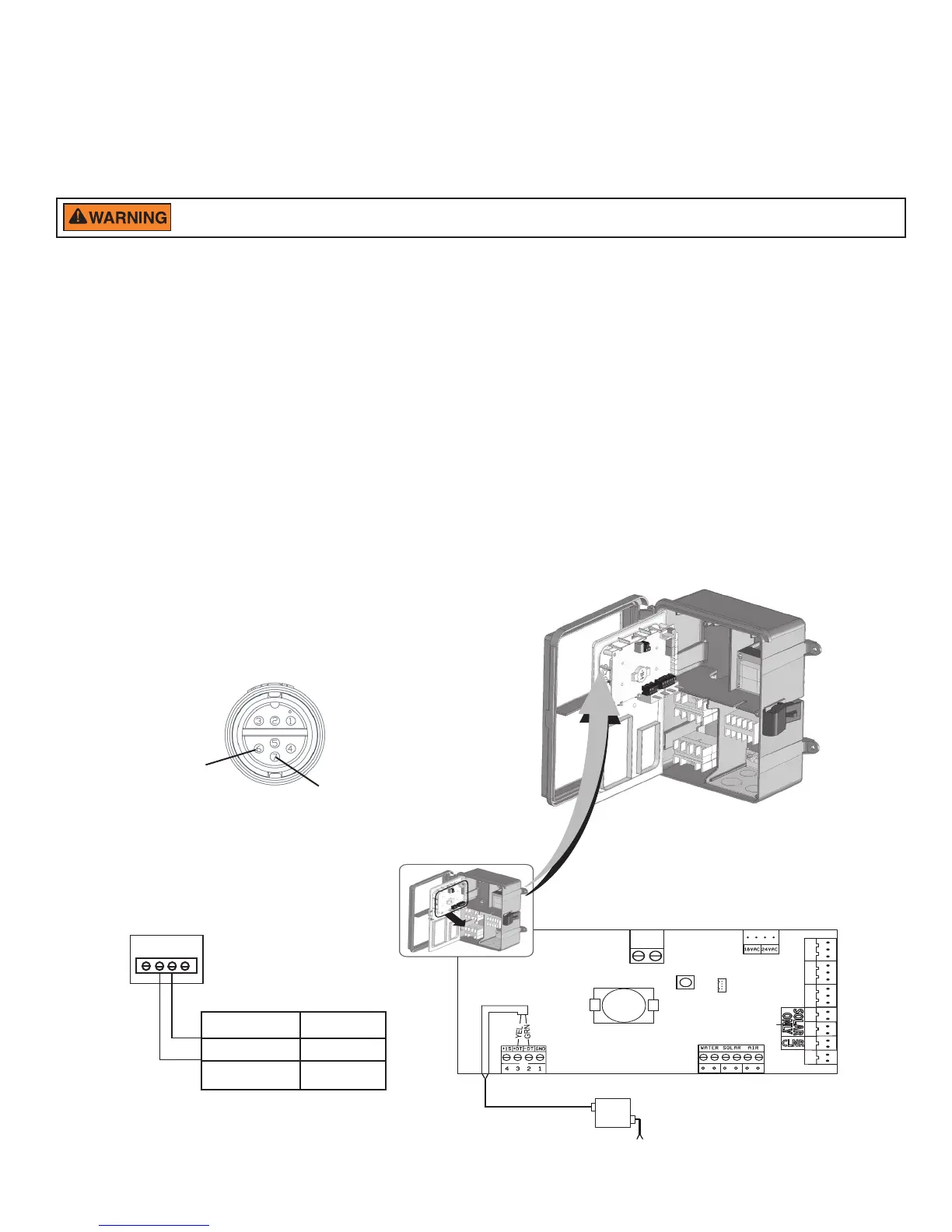

Connecting to a SunTouch
®
Control System
The IntelliFlo
®
VS+SVRS Pump can be controlled by a SunTouch control system via the RS-485
communication cable (P/N 350122). To connect the two wire RS-485 cable from the pump’s drive
assembly to the motherboard located in the SunTouch system Power Center:
Switch OFF main system power to the SunTouch system Power Center before making any connections.
To access the SunTouch system Power Center electronics compartment:
1. Unlatch the front door of the SunTouch system Power Center, and open the door.
2. Loosen the retaining screw on front panel. Open the hinged front panel to access the electronics
compartment.
3. Route the two conductor cable up through the power center grommet opening located on the left
side, and up through the low voltage raceway to the motherboard.
4. Strip back the cable conductors ¼ in. Insert the wires into the screw terminals (provided in the kit).
Secure the wires with the screws. Make sure to match the color coding of the wires; Yellow = +DT,
Green = -DT.
5. Insert the connector on the COMPORT (J11) screw terminal on the motherboard.
6. When the connection is completed, close the control panel and secure it with the retaining screw.
7. Close the front door. Fasten the spring latch.
SunTouch System Motherboard
Pin 6
(Green)
Pin 7 (Yellow)
Pump cable pin conguration
Pin conguration
SunTouch
COM PORT (J11)
screw terminal
VALVE ACTUATORS
COM PORT
INTAKE
RETURN
SOLAR
AUX 3
PUMP
AUX 2
AUX 1
VLV A
VLV B
VLV C
ONLY
SOLAR
CLNR
GAS
HEATER
RESET
RS-485 Communication
Cable (P/N 350122)
Pump
Drive
230 VAC Power to Pump
J11
SunTouch screw
terminal connector
IntelliFlo
(2 -wire cable)
2 (GRN)
3 (YEL)
GRN (Pin 6)
YEL (Pin 7)
