Pump Disassembly (Continued)
9. To unscrew the impeller from
the shaft, twist the impeller
counterclockwise.
10. Remove the rotating portion of
the mechanical seal from the
impeller.
11. Remove the four bolts from the
seal plate to the motor, using a
9/16 inch wrench.
12. Place the seal plate face down
on a at surface and tap out the
carbon spring seat.
13. Clean the seal plate, seal
housing, and the motor shaft.
Pump Reassembly/Seal Replacement
1. When installing the replacement shaft seal, use silicone sealant on the metal portion before
pressing into the seal plate as shown. Note: Use extreme care when applying sealant. Ensure
that no sealant contacts the seal plate surface or the ceramic seal. Allow sealant to cure
overnight before reassembling.
2. Before installing the rotating portion of the seal into the impeller, be sure the impeller is clean.
Use a light density soap and water to lubricate the inside of the seal. Press the seal into the
impeller with your thumbs and wipe off the ceramic and carbon faces with a clean cloth.
3. Remount the seal plate to the motor.
4. Grease the motor shaft thread and screw impeller onto the motor shaft.
5. Screw in the impeller lock screw (counterclockwise to tighten).
6. Remount the diffuser onto the seal plate. Make sure the plastic pins and holding screw inserts
are aligned.
7. Grease the diffuser o-ring and seal plate gasket prior to reassembly.
8. Grease the bolt threads, assemble the motor subassembly to the strainer pot-pump body by
using the two (2) through bolts for proper alignment. Do not tighten the through bolts until all
six (6) bolts are in place and nger tightened.
9. Fill the pump with water.
10. Reinstall the pump lid and plastic clamp. See “Pump Strainer Basket Service” on page 31 for
details
11. Reconnect the RS-485 communication cable to the pump.
12. Prime the pump, see page 19.
Shaft Seal Replacement
The Shaft Seal consists primarily of two parts, a rotating member and a ceramic seal. The pump
requires little or no service other than reasonable care, however, a shaft seal may occasionally become
damaged and must be replaced. Note: The polished and lapped faces of the seal could be damaged
if not handled with care.

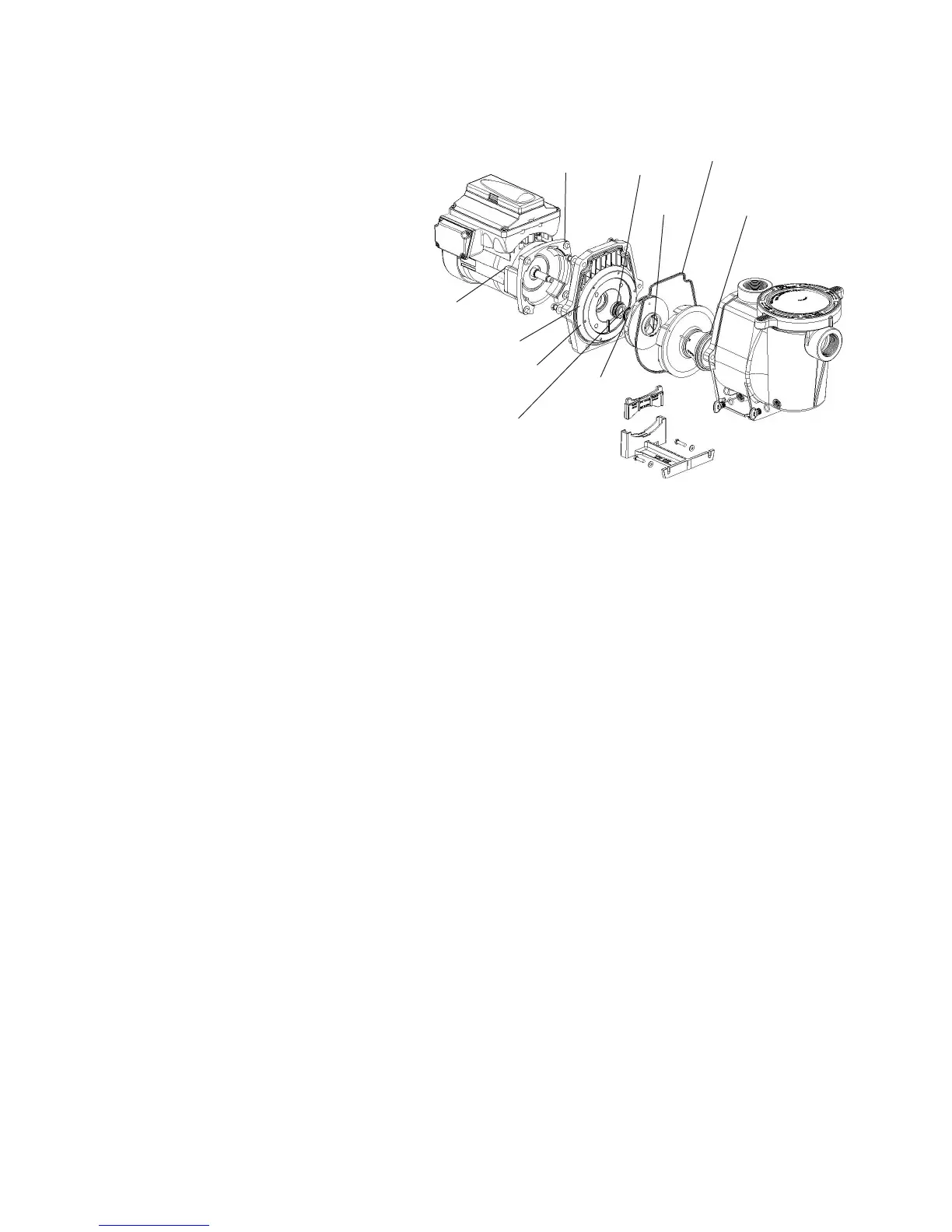

MOTOR
BOLT (4x)
SEAL
SET
SCREW
GASKET
O-RING
MOTOR
BOLT (2x)
SEAL PLATE
IMPELLER
LOCK SCREW SEAL
LOCK
SCREW
