Pentair INTELLIPRO VS+SVRS User Manual

41
INTELLIFLO
®
VS+SVRS and INTELLIPRO
®
VS+SVRS Variable Speed Pump Installation and User’s Guide
40
INTELLIFLO
®
VS+SVRS and INTELLIPRO
®
VS+SVRS Variable Speed Pump Installation and User’s Guide

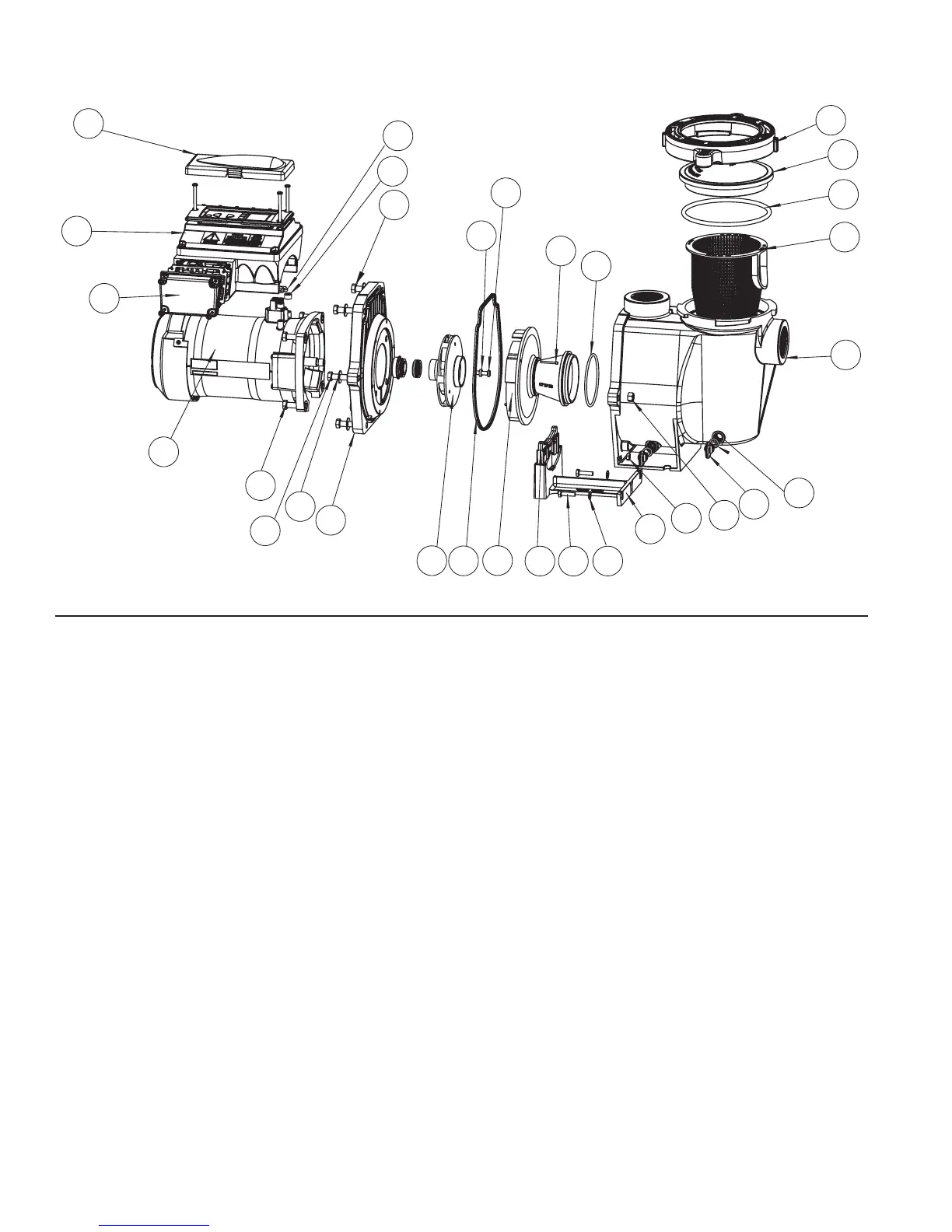

Illustrated Parts List
17
23
1
20
22
29
2
28
26
11
7
5
14
15
18
30
25
4
3
12
21
19
16
10
9
6
13
24
8
27
31
1 070387
2 070429
3 070430
4 070431
5 070927 ALMD 357159 BLK
6 070929 ALMD 357160 BLK
7 071131 ALMD 357161 BLK
8 071403
9 071406
10 355227
11 071652
12 071657
13 071660
14 072183
15 072184
16 072928
17 073131
18 192115
19 075713
20 350013
21 350015 ALMD 357157 BLK
22 350601 ALMD 357290 BLK
23 350105S ALMD 357294S BLK
24 350108
25 350142
26 350201 ALMD 350101 BLK
27 351021 ALMD 353250 BLK
28 357100
29 357151
30 357199 ALMD 357150 BLK
31 350621 ALMD 350310 BLK
32 353200
Item
No.
Pentair Aquatic Systems
(P/N11017)
IntelliFlo
®
VS+SVRS Pump
StaRite
®
(P/N P6E6XS4H-209L)
IntelliPro
®
VS+SVRS Pump
Description
BASKET AQ & WF
BOLT HEX HD, 3/8-16 x 7/8 S/S, (QTY4)
BOLT 3/8-16X 1 1/4 HEX CAP 18-8 S/S (QTY4)
BOLT 3/8-16X2 HEX CAP 18-8 S/S (QTY2)
FOOT WF-PUMP MOTOR SUPPORT
FOOT INSERT WF PUMP
PLUG DRAIN WFE (QTY2)
NUT 3/8-16 BRASS NICKEL PLATED (QTY 2)
NUT 1/4-20 SS HEX (QTY 2)
O-R1NG 2-238
SCREW 1/4-20x1LH, PHILLIPS PAN MS 18-8 SS
SCREW 1/4-20 X 1in HEX CAP 18-8 SS QTY2
SCREW SET 4-40,1-1/8, WFE, SOC, CAP 8-8SS QTY2
WASHER FLAT 1/4x5/8 20 GA THICK 18-8 SS QTY 2
WASHER 3/8 IDX 7/8 OD .05 THICK 18-8 SS
DIFFUSER ASSEMBLY, BLACK
IMPELLER
GASKET FLAT WASHER WFE DRN (QTY 2)
WSHR RUBB WFE PMP
O-RING -436 5.85x0.275 BUNA N60
HOUSING WFE
CONTR0L COVER ASSY
VFD MOTOR
DRIVE GASKET
SPACER CAP (QTY3)
SEAL PLATE ASSY WF
DRIVE VS+ SVRS
GASKET SANTOPRENE MOLDED(not servicable part)
LID SEE THROUGH WF
CLAMP CAM & RAMP WF
COVER KIT INTELLIFLO FWC
SVRS SUCTION GAUGE (Not shown)
