Pump Strainer Basket Service (Continued)
10. Ensure that the lid o-ring is properly placed. Seat the clamp and lid
then turn clockwise until the handles are horizontal as shown.
11. Reconnect the communication cable to the IntelliFlo
®
VS+SVRS
Pump if required.
12. Switch the power ON at the circuit breaker. Reset the pool time
clock to the correct time.
FILTER OPERATES UNDER HIGH PRESSURE. WHEN
ANY PART OF THE CIRCULATING SYSTEM (e.g., LOCK
RING,PUMP, FILTER, VALVES, ETC.) IS SERVICED, AIR
CAN ENTER THE SYSTEM AND BECOME PRESSURIZED.
PRESSURIZED AIR CAN CAUSE THE LID TO SEPERATE
WHICH CAN RESULT IN SEVERE INJURY, DEATH, OR
PROPERTY DAMAGE. TO AVOID THIS POTENTIAL HAZARD,
FOLLOW THESE INSTRUCTIONS AND THE INSTRUCTIONS
THAT CAME WITH AND THAT ARE ON THE FILTER.
13. Open the manual air relief valve on top of the lter.
14. Stand clear of the lter. Press the Start button on the pump.
15. Bleed air from the lter until a steady stream of water comes out.
16. Close the manual air relief valve.
Motor Service
1. Protect from heat:
• Shade the motor and controller from the sun.
• Any enclosure must be well ventilated to prevent overheating. Particular attention should be paid
to the motor fan cover and the cooling ns between the drive and the motor.
• Provide ample cross ventilation.
2. Protect against dirt:
• Protect from any foreign matter.
• Do not store (or spill) pool chemicals near the motor.
• Avoid sweeping or stirring up dust near the motor while it is operating.
• If a motor has been damaged by dirt it may void the motor warranty.
3. Protect against moisture:
• Protect from splashing pool water.
• Protect from the weather.
• Protect from lawn sprinklers.
• If motor internals have become wet - let it dry before operating. Do not allow the pump to
operate if it has been ooded.
• If a motor has been damaged by water it may void the motor warranty.
Note: DO NOT wrap motor and controller with plastic or other air tight materials. The motor and
controller may be covered, but not wrapped in plastic, during a storm, for winter storage, etc., but
never when operating, or expecting operation.

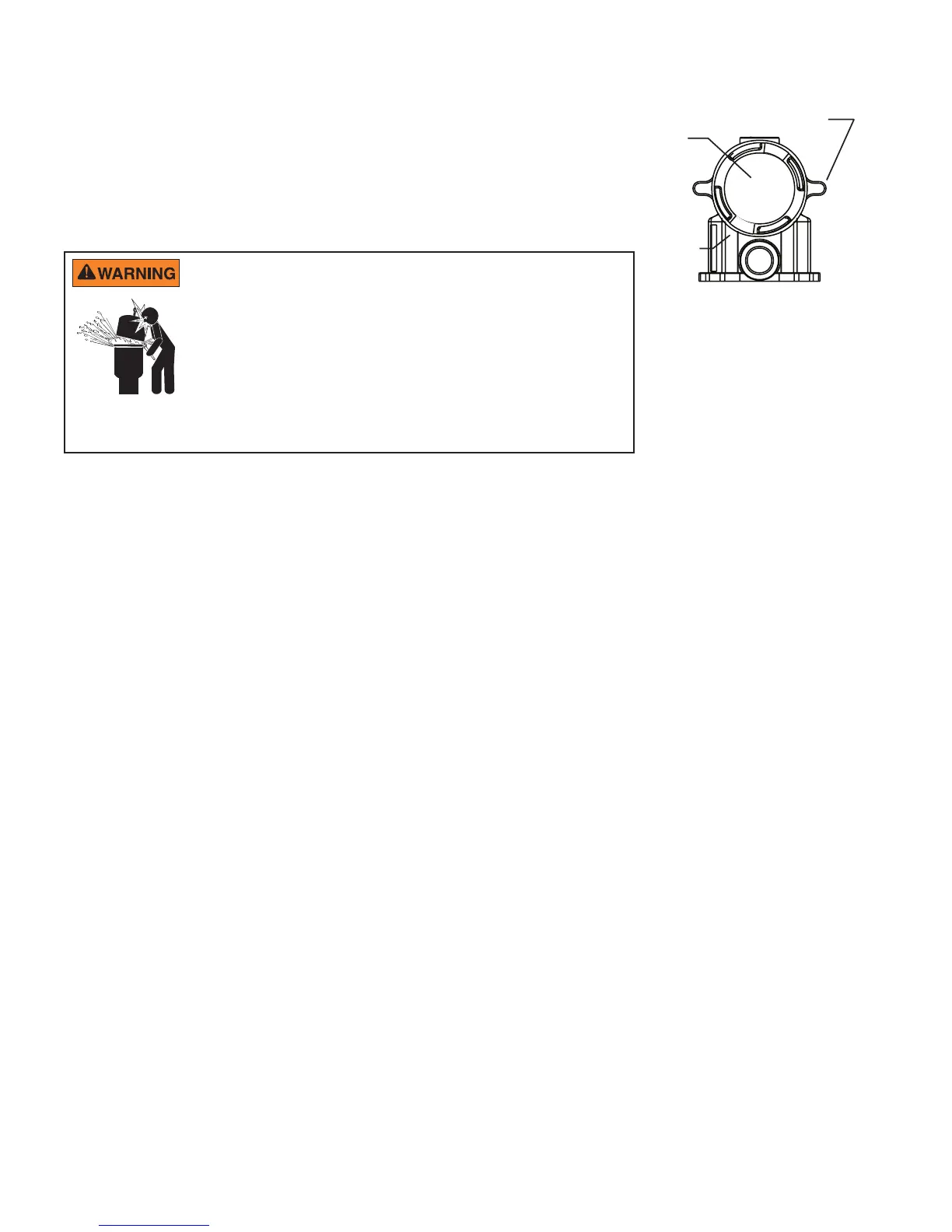

Clamp
Lid
Volute
