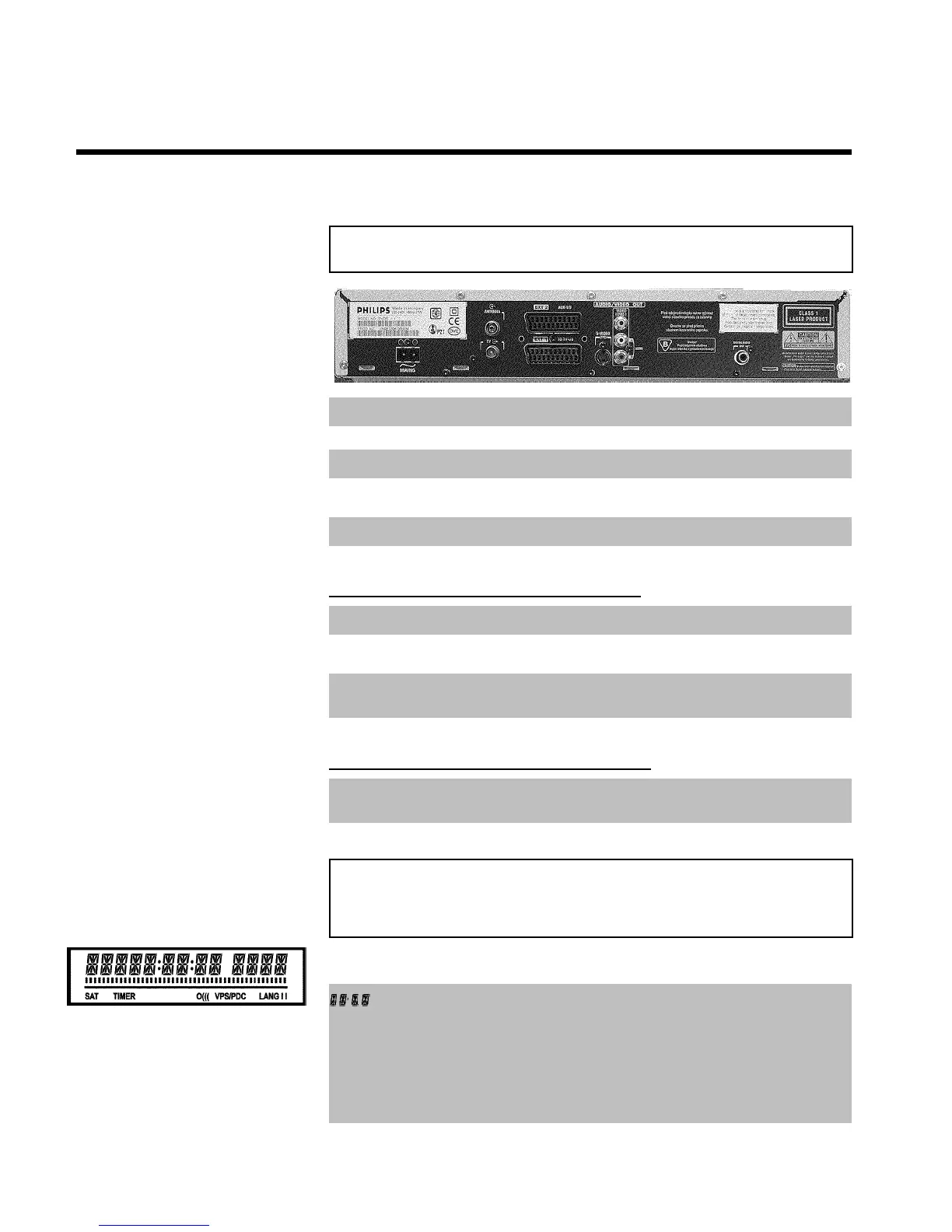

Back of the unit
4MAINS Mains socket: Connection to the mains supply (230V/50Hz)
ANTENNA IN Aerial input: Connection of the aerial
TV OUT Aerial output: Connection of the TV set
EXT 2 AUX-I/O Scart socket 2: Connection of an additional device (satellite receiver,
set-top box, video recorder, camcorder, etc.)
EXT 1 TO TV-I/O Scart socket 1: Connection of a TV set. RGB output
Output sockets (AUDIO/VIDEO OUT)
OUT S-VIDEO (Y/C) SVideo output: Connection of an S-Video-compatible TV set
OUT VIDEO
(CVBS)
Video output (yellow socket): Connecting a TV set with a video
input (CVBS, Composite Video)
OUT L AUDIO R Analogue audio output (white/red socket): Connection of a TV
set with audio input sockets or connection of an additional device
Output socket (DIGITAL AUDIO OUT)
DIGITAL AUDIO
OUT
Digital audio output: Connection of a digital audio device
(amplifier/receiver)
The symbols on your DVD recorder
display
These symbols can light up on your DVD recorder display:
Multi-function display/text line
•) Clock
•) Disc/title playing time
•) OTR switch-off time
•) Title name
•) Display of the programme number of the TV channel/playing
time/channel name/function.
•) Display of information and alerts

Philips DVD Recorder Specifications

General

Video Recording Format	MPEG-2
Disc Compatibility	DVD-R, DVD-RW, DVD+R, DVD+RW
Connectivity	HDMI, Composite, Component
USB Port	Yes
Dimensions	Varies by model
Weight	Varies by model
Tuner	Analog and Digital (depending on model)
Output Resolution	Up to 1080i (upscaling)
Hard Drive	Yes (capacity varies by model)
