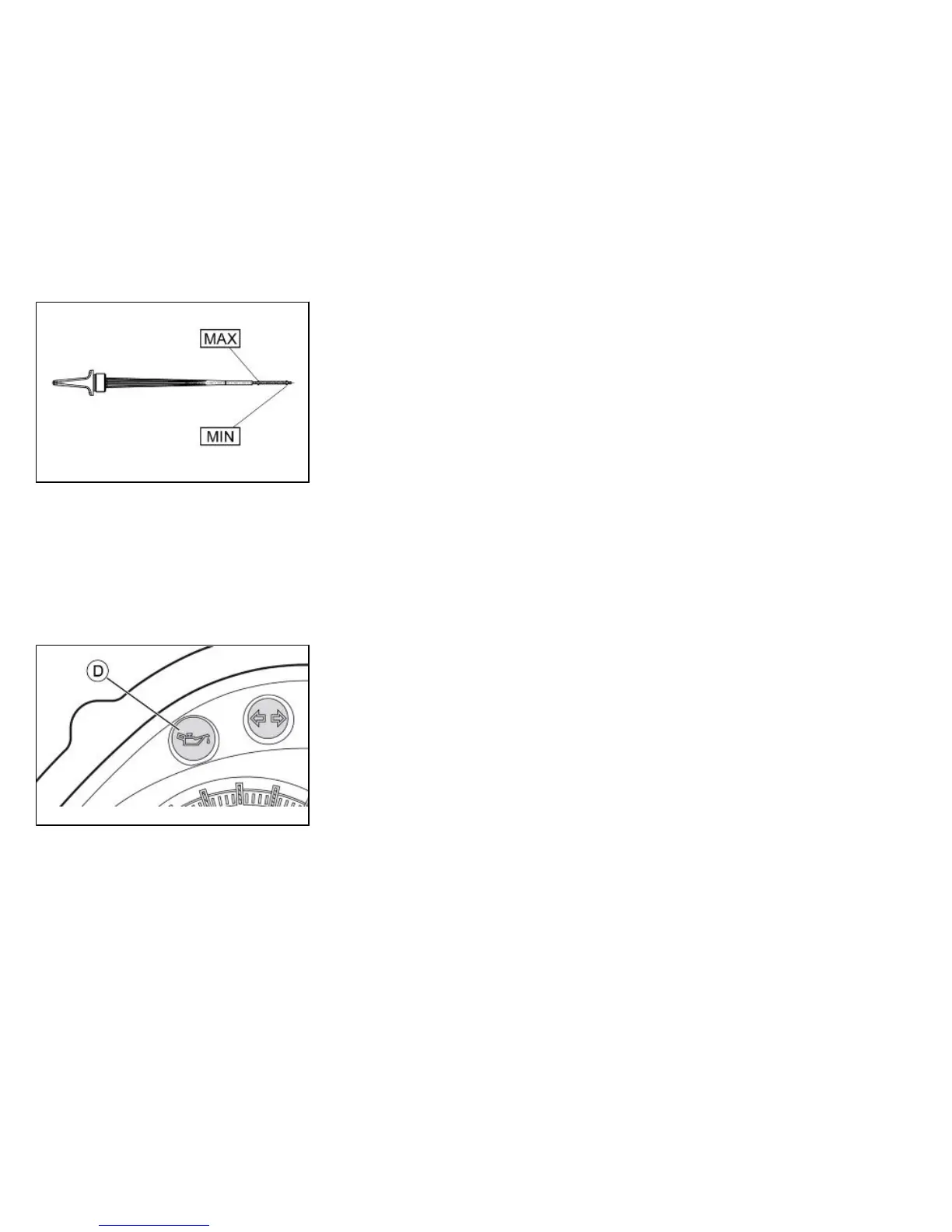

03_02
1,340 cm³ (of which 120 cm³ in the filtering cartridge)
Engine oil top-up
The oil should be topped up after having checked the level and in any case by adding
oil without ever exceeding the MAX. level. It should be checked in any case every
2500 Km at an Authorised Piaggio Service Centre and the engine oil should be
topped up if necessary.
03_03
Warning light (insufficient oil pressure) (03_03)
The scooter is equipped with a warning light "D" that lights up when the key is turned
to the "ON" position. However, this light should come off once the engine has been
started. If the light comes on while braking, at idle speed or while turning a cor-
ner, it is necessary to check the oil level and top it up if required. If after having
topped-up the oil, the warning light still comes on while braking, at idle speed
or while turning a corner, it will be necessary to take your vehicle to an Author-
ised Service Centre.
35
