Front light group (03_17, 03_18)
To access the headlight bulbs, remove the front of the handlebar cover, as follows:
1) Remove the rear-view mirrors; for this operation follow the instructions described
and illustrated in the «Rear-view mirrors» section.

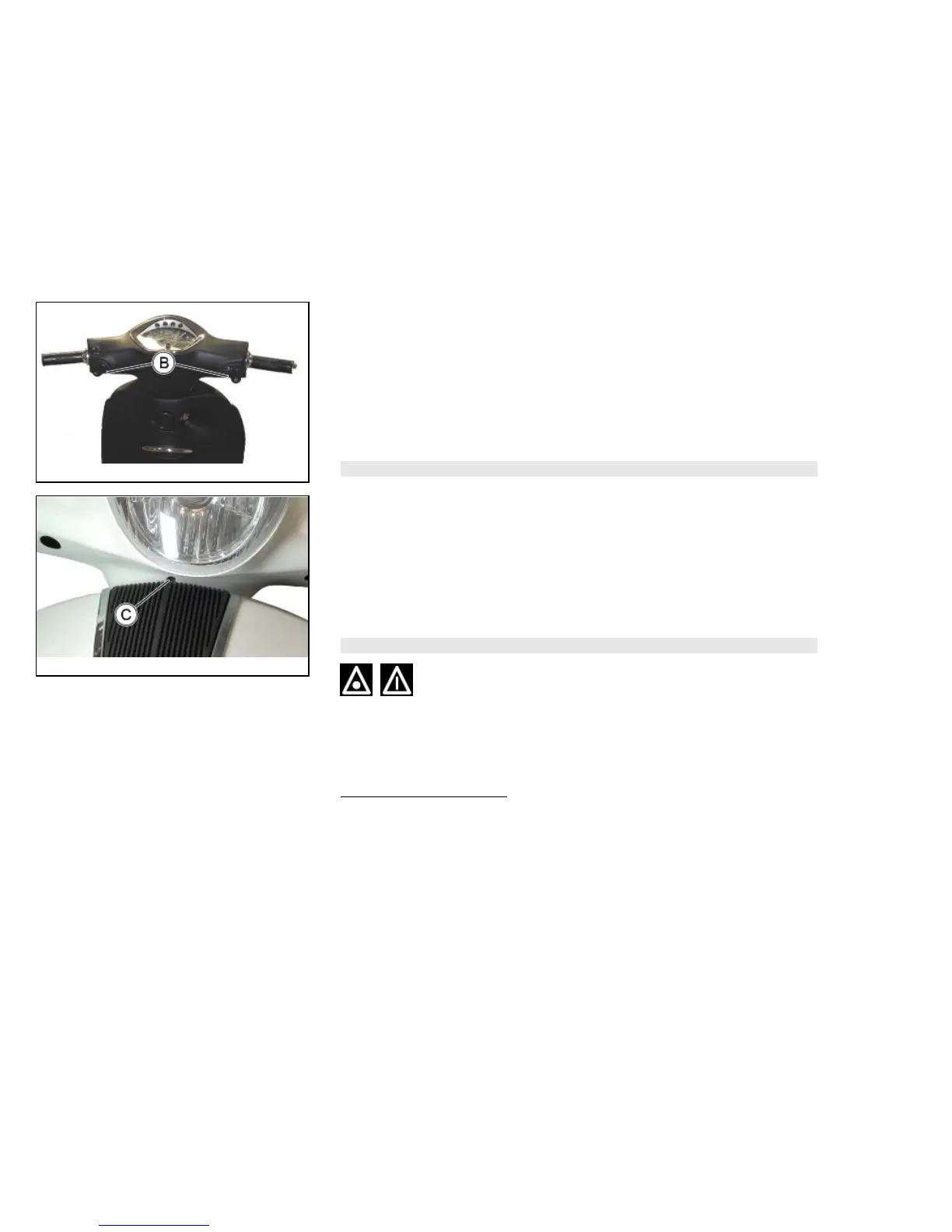

2) Unscrew the 3 screws holding the handlebar cover. The front central one «C» and
the rear 2 «B». Once this is done, the handlebar cover can be removed.
3) Remove the handlebar cover to access the headlight and the bulbs.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS ATTRIBUTABLE TO HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT THE AFTER-SALES SERVICE
NETWORK.
CAUTION
DO NOT PLACE, TRANSPORT OBJECTS AND/OR CLOTHES OVER THE FRONT
HEADLIGHT ASSEMBLY, WHEN THE HEADLIGHT IS TURNED ON OR OFF.
FAILURE TO FOLLOW THIS PRECAUTION MAY CAUSE OVERHEATING AND
THE SUBSEQUENT FUSION OF THE GLASS.
Electric characteristic
Bulbs
n.1 bulb 12V-35/35W for high- and low beam light
1 12V-5W bulb for side light
