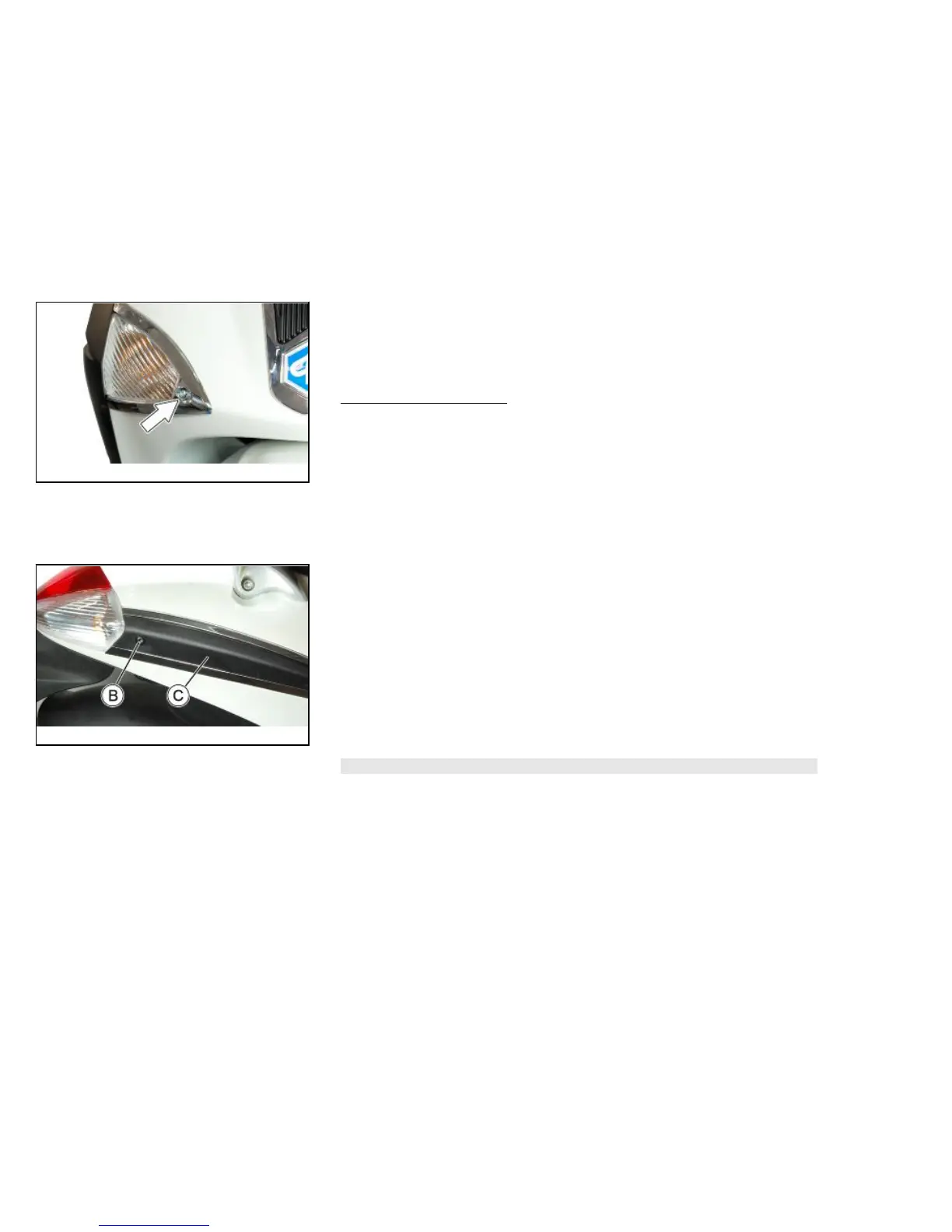

Front direction indicators (03_21)
In order to replace the front turn indicator bulbs remove the light taking off the retaining
screws, then remove the bulb holder form its support; gently turn the bulb around 30º
and remove it. Follow the process in reverse order to refit.
Electric characteristic
Front turn indicator light bulb
Type: Amber spherical
Power: 12V - 10W
Quantity: 1 RHS + 1 LHS
03_22
Rear optical unit (03_22, 03_23, 03_24, 03_25)
In order to reach the rear light bulb proceed as follows:
- Undo the screw «B» and remove the cover «C». Do this on both sides.
- Undo the screw «D» on both sides of the headlight assembly.
- Remove the plastic cover, undo the screw «E» and remove the rear handle.
- Detach the headlight assembly as shown in the picture.
The bulbs have a bayonet coupling, to remove them press gently and turn it anti-
clockwise about 30°. To refit follow the same steps but in reverse order.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS ATTRIBUTABLE TO HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
