03_19
03_20

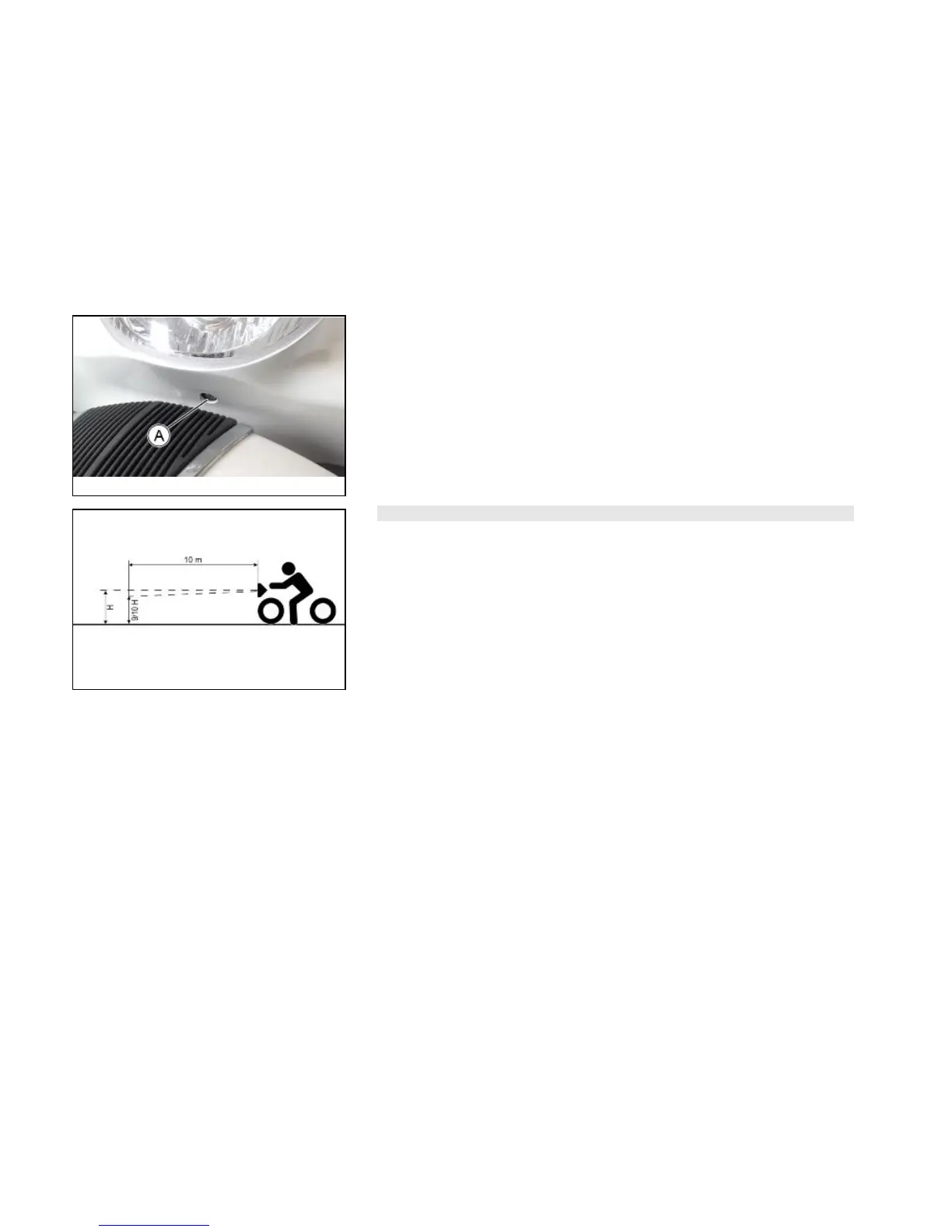

Head light adjustment (03_19, 03_20)
Proceed as follows:
1. Position the vehicle in running order and with the tyres inflated to the prescribed
pressure, onto a flat surface 10 m away from a half-lit white screen; ensure that the
longitudinal axis of the vehicle is perpendicular to the screen;
2. Turn on the headlight and check that the boundary of the light beam projected onto
the screen is not higher than 9/10 or lower than 7/10 of the distance between the centre
of the headlight and the ground;
3. Otherwise, adjust the right headlight with screw «A».
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VE-
HICLE IS USED.
52
