PIAGGIO MSS X10 500ie Executive User Manual

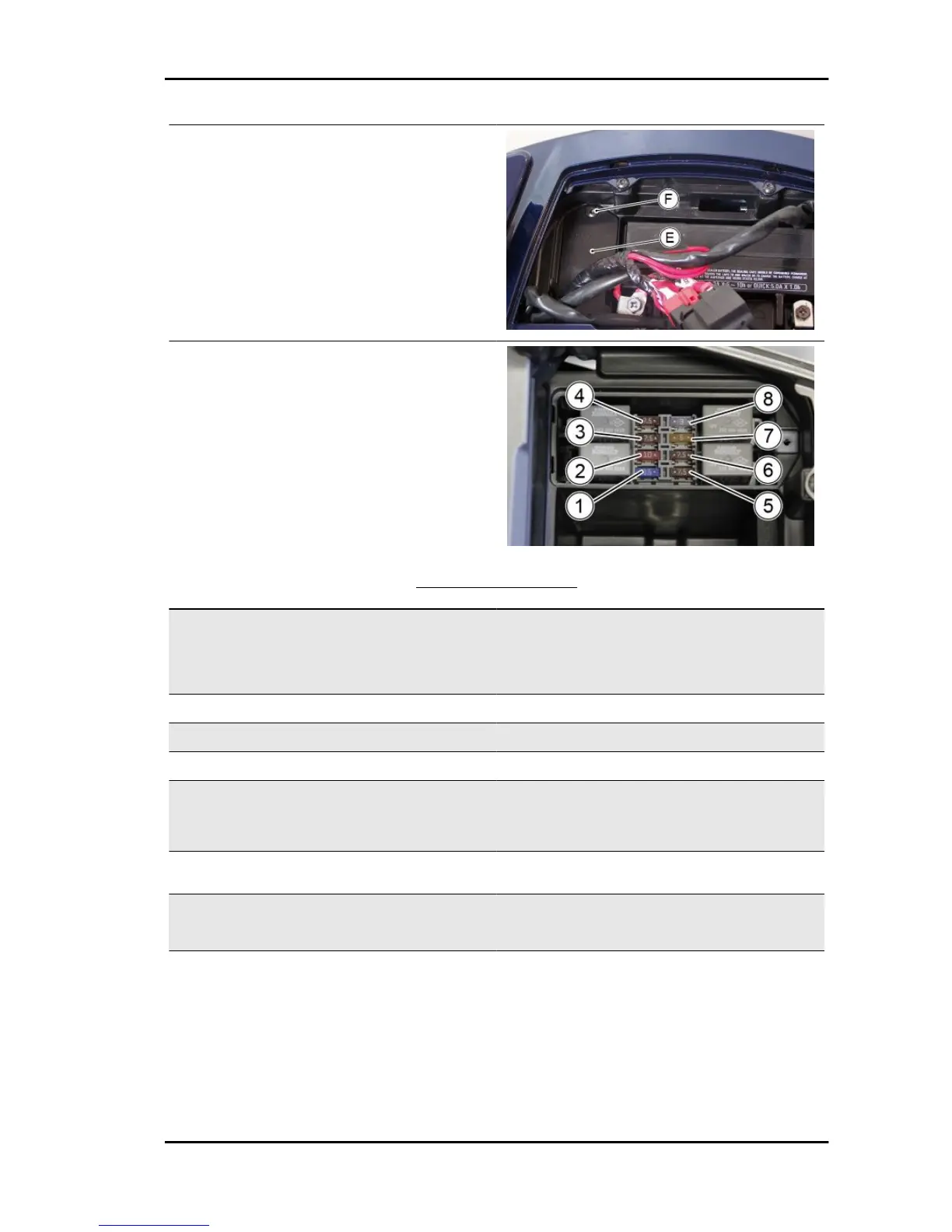

Once the main fuse box «A» is removed, unscrew
the screw «F» and remove the cover«E» of the
secondary fuse box.
SECONDARY FUSES
SECONDARY FUSES
Specification
Desc./Quantity
Fuse No. 1 Capacity: 15 A
Protected circuits: Powered by battery LV socket, helmet
compartment bulb, turn indicators control device, instrument
panel, antitheft-device pre-installation.
Seat opening actuator ignition switched live and fuel door open-
ing actuator.
Fuse No. 2 Capacity: 10A
Protected circuits: Light relay, light switch.
Fuse No. 3 Capacity: 10A
Protected circuits: control unit, injection load relay.
Fuse No. 4 Capacity: 7.5 A
Protected circuits: Electric fan relay.
Fuse No. 5 Capacity: 7.5 A
Protected circuits: satellite navigator pre-installation ignition
switched live, USB socket, shock absorber control device, turn
indicators control device, instrument panel, antitheft device
pre-installation, horn, stop light bulb, starter relay.
Fuse No. 6 Capacity: 7.5 A
Protected circuits: high beam light bulbs ignition switched
live, high beam warning light, antitheft device pre-installation.
Fuse No. 7 Capacity: 5A
Protected circuits (live):Control unit, ABS control unit, immo-
bilizer antenna, anti-tipping sensor, injection load solenoid,
Light solenoid.
Fuse No. 8 Capacity: 3A
Protected circuits (live):Daylight running light, license plate
light, control lighting, instrument lighting.
MSS X10 500ie Executive Electrical system
ELE SYS - 79

PIAGGIO MSS X10 500ie Executive Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	493 cc
Cooling System	Liquid cooled
Fuel System	Electronic fuel injection
Seat Height	760 mm
Fuel Capacity	15.5 liters
ABS	Yes
Front Tire	120/70-15
Width	800 mm
Torque	46 Nm @ 5, 250 rpm
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual hydraulic shock absorbers
Front Brake	Double disc
Rear Brake	Single disc
Rear Tire	150/70-13
