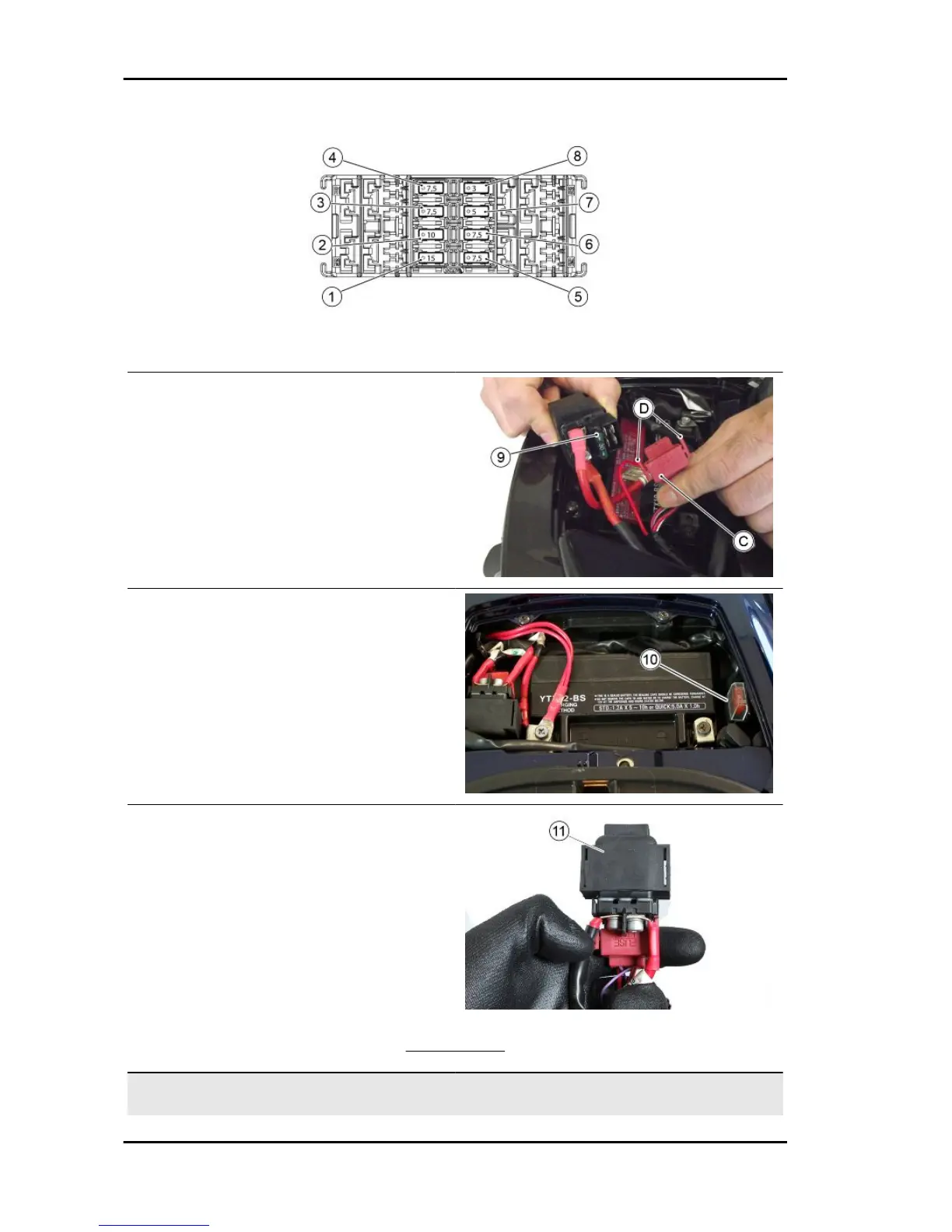

MAIN FUSES
Working on the side fins«D», remove the cov-
er«C» to access the main fuse «9».
On the other side of the battery compartment, the
main fuse is located instead «10».
The spare fuse «11» is positioned in the same box,
but on the side.
MAIN FUSES
Specification
Desc./Quantity
Fuse No. 9 Capacity: 30 A
Protected circuits:Recharge, fuses No. 5, No. 6, No. 7 and
No. 8 (live).
Electrical system MSS X10 500ie Executive
ELE SYS - 80
