En
Easy connections
This is a basic setup that allows you to watch discs on your TV using
just the cables supplied.
Important
• This player is equipped with copy protection technology. Do not
connect this player to your TV via a VCR using AV cables, as the
picture from this player will not appear properly on your TV. (This
player may also not be compatible with some combination TV/
VCRs for the same reason; refer to the manufacturer for more
information.)
• Do not unplug the player from the power outlet while it is
switched on.
• Do not plug this player into a switched power supply found on
some amplifiers and AV receivers.

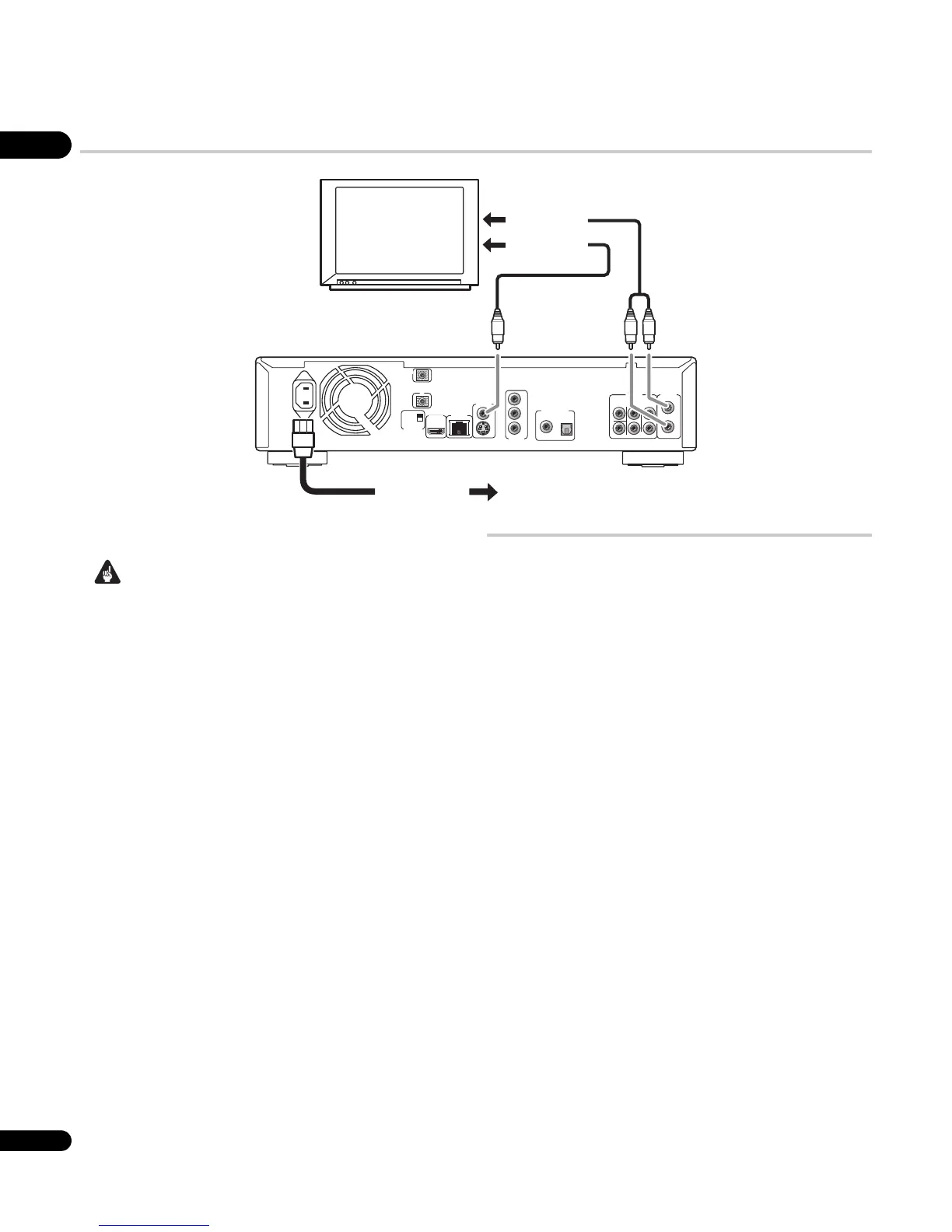

1 Connect the VIDEO OUT and one pair of AUDIO OUT (2ch)
jacks to a set of audio/video inputs on your TV.
Use the supplied red/white stereo audio and yellow video cables.
Make sure you match up the left and right audio outputs with their
corresponding inputs for correct stereo sound.
See Using other types of video output below if you want to use a
different type of connection.
2 Connect the supplied AC power cord to the AC IN inlet,
then plug into a power outlet.
Using other types of video output
This player has standard (composite), S-Video and component video
outputs, as well as an HDMI connector (for digital video/audio).
In order to be able to watch HD (high definition) BDs at their full
resolution, you should connect the player to your TV using either the
component video output, or (even better) the HDMI output.
An HDMI connection will additionally give you HD output when
watching DVDs.
If your display has neither of these connection types, an S-Video jack
is also provided, which should give slightly better video quality than
using the standard video output.
AUDIO OUT
(5.1ch)
DIGITAL AUDIO OUT
AUDIO OUT
(2ch)
CENTER
SUB WOOFER
FRONT
SURROUND
L
L
R
R
COAXIAL OPTICAL
COMPONENT
VIDEO OUT
VIDEO OUT
LAN(100)
HDMI OUT
Y
S
P
B
P
R
SETTING 2
SETTING 1
IR RECEIVER
IR
CONTROL
IN
IN
AC IN
To power outlet
TV
To video input
To audio input
