Chapter 2
Connecting up

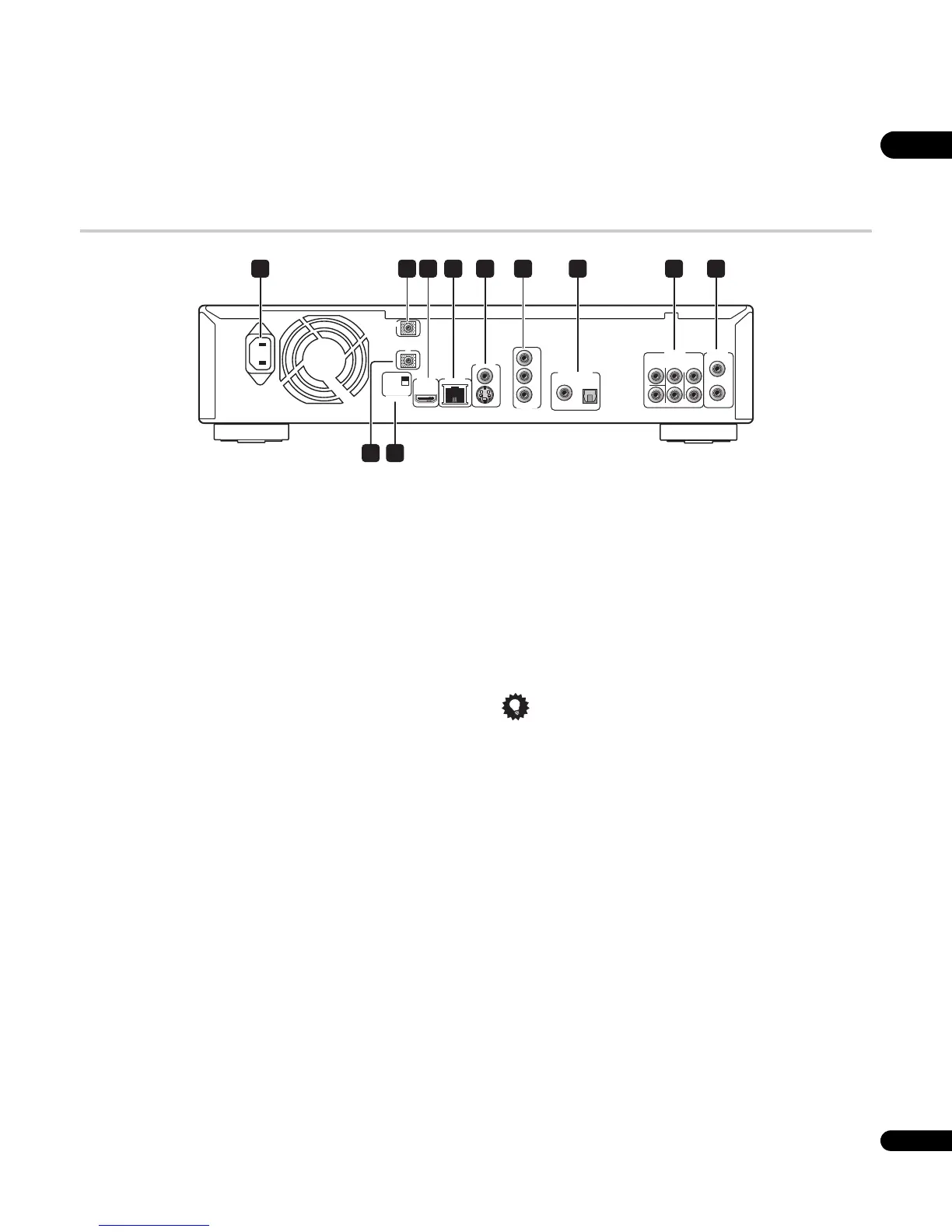

Rear panel
1AC IN
Connect the supplied power cord here, then plug into a power
outlet.
2 CONTROL IN
Use to control this player from the remote sensor of another Pioneer
component with a CONTROL OUT terminal and bearing the 
mark. Connect the CONTROL OUT of the other component to the
CONTROL IN of this player using a mini-plug cord (page 14).
3 HDMI OUT
HDMI output providing a high quality interface for digital audio and
video (page 11).
4 LAN (100)
Ethernet port for 100BASE-TX (100 Mbps) network connection
(page 14).
5 VIDEO OUT and S-VIDEO OUT
Video output (composite) that you can connect to your TV or AV
receiver using the supplied video cable (page 10).
S-Video output that you can use instead of the VIDEO OUT jacks
(page 12).
6 COMPONENT VIDEO OUT
High quality video output for connection to a TV, monitor or AV
receiver that has component video inputs.
Connect using a commercially available three-way component video
cable (page 11).
7 DIGITAL AUDIO OUT (COAXIAL/OPTICAL)
Digital audio outputs for connection to a PCM, Dolby Digital, and/or
DTS-compatible AV receiver (page 13).
8 AUDIO OUT (5.1ch)
Multi-channel (5.1ch) analog audio outputs for connection to an AV
receiver with multi-channel analog audio inputs (page 13).
9 AUDIO OUT (2ch)
Stereo analog audio outputs for connection to your TV, AV receiver
or stereo system (page 10).
10 IR IN
Jack for an external IR (infrared) remote control receiver (page 15).
11 IR RECEIVER switch
Switch to the setting compatible with your external IR remote
control receiver (page 15).
Tip
• When connecting this player to your TV, AV receiver or other
equipment, make sure that all components are ‘switched off’
and ‘unplugged’.
• You may find it useful to have the manuals supplied with your
other components handy when connecting this player.
AUDIO OUT
(5.1ch)
DIGITAL AUDIO OUT
AUDIO OUT
(2ch)
CENTER
SUB WOOFER
FRONT
SURROUND
L
L
R
R
COAXIAL OPTICAL
COMPONENT
VIDEO OUT
VIDEO OUT
LAN(100) HDMI OUT
Y
S
P
B
P
R
SETTING 2
SETTING 1
IR RECEIVER
IR
CONTROL
IN
IN
AC IN
1
10
2
11
3 4 5 6 7 8 9

Pioneer BDP-LX70A Specifications

General

Depth	353 mm
Wi-Fi	No
Width	420 mm
Height	103 mm
Weight	6500 g
Full HD	Yes
Device type	Blu-Ray player
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Disc types supported	BD-ROM, CD-R, CD-ROM, CD-RW, DVD-R, DVD-R DL, DVD-RW
Playback disc formats	Blu-Ray video, CD audio, CD video
Supported video modes	1080p
Card reader integrated	-
USB 2.0 ports quantity	1
Audio formats supported	MP3, WAV, WMA
Image formats supported	GIF, JPG, PNG
Video formats supported	MPEG
Analog signal format system	NTSC, PAL
Power consumption (standby)	0.5 W
Power consumption (typical)	35 W
Audio output channels	5.1 channels
