Pioneer DJM-800 Service Manual

DJM-800
147
5678
56
7
8
C
D
F
A
B
E
7.3 DISASSEMBLY

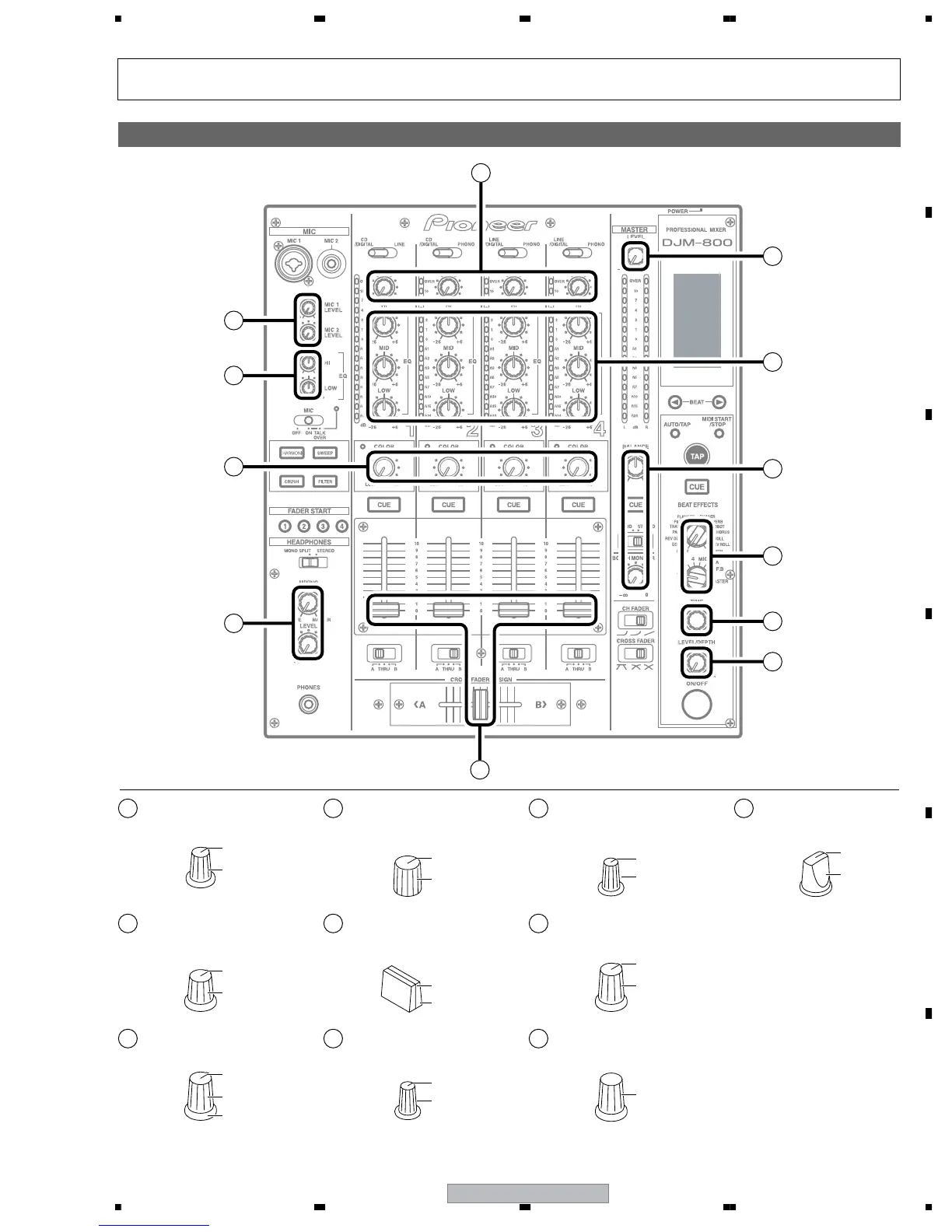

Knobs and Volumes Location
A
B
A
Rotary SW knob S (C)
(DAA1204) ×4
White
Gray
B
Rotary SW knob (MA)
(DAA1198) ×3
C
Rotary SW knob (B)
(DAA1176) ×12
D
Rotary SW knob (HM)
(DAA1197) ×4
E
Slider knob (L2)
(DAC2371) ×5
F
Rotary SW knob S (B)
(DAA1178) ×2
G
Rotary SW knob S (A)
(DAA1177) ×2
H
Rotary SW knob (A)
(DAA1175) ×3
I
Rotary SW knob (C)
(DAA1180) ×1
J
Select knob
(DAA1179) ×2
C
J
I
H
E
H
D
G
F
B
Silver
White
Gray
White
Black
White
Black
White
Black
Black
White
Black
White
White
Black
Black
White
White
Note: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.

Pioneer DJM-800 Specifications

General

Equalizer	Yes
Product color	Black
Audio output channels	4.0 channels
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.005 %
Connectivity technology	Wired
Digital audio coaxial out	1
Dimensions (WxDxH)	320 x 108 x 381 mm
Power consumption (typical)	30 W

Weight and Dimensions

Weight	8000 g
