Pioneer DJM-800 Service Manual

DJM-800
70
1234
1234
C
D
F
A
B
E

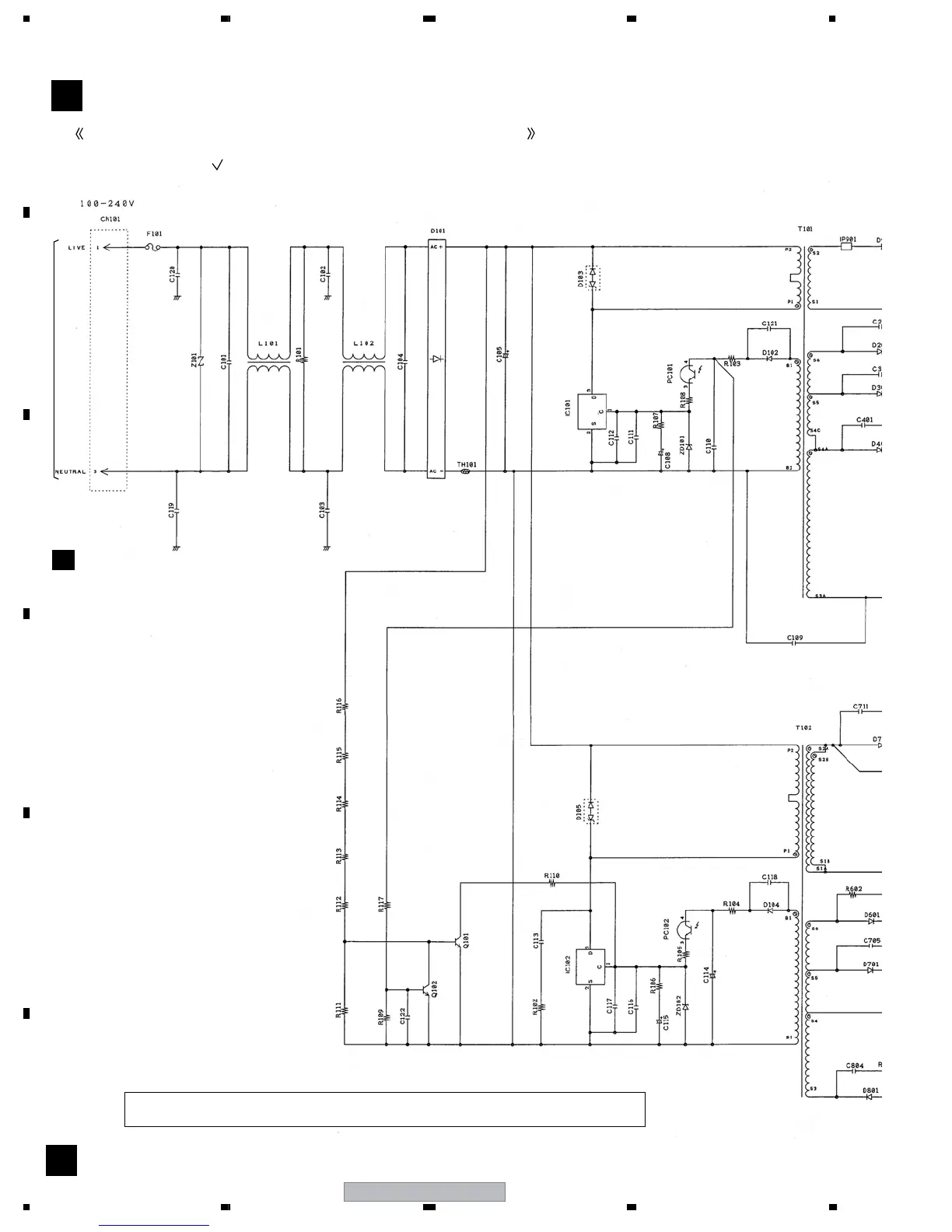

3.28 SW POWER SUPPLY UNIT
Q
NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) UNIT
• In case of repairing, use the described parts only to prevent an accident.
• Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Unit is repaired.
• Please take care to keep the space, not touching other parts when replacing the parts.
SW POWER SUPPLY UNIT (DWR1433)
Q
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
R
ACSW
ASSY
