Pioneer DJM-800 Service Manual

DJM-800
66
1234
1234
C
D
F
A
B
E
3.25 HPAMP ASSY
Power Supply
HP D/A
(HPD)
(HP)
(HPD)
6
7
8
1
2
1/3
CN12
I
CN203
Q

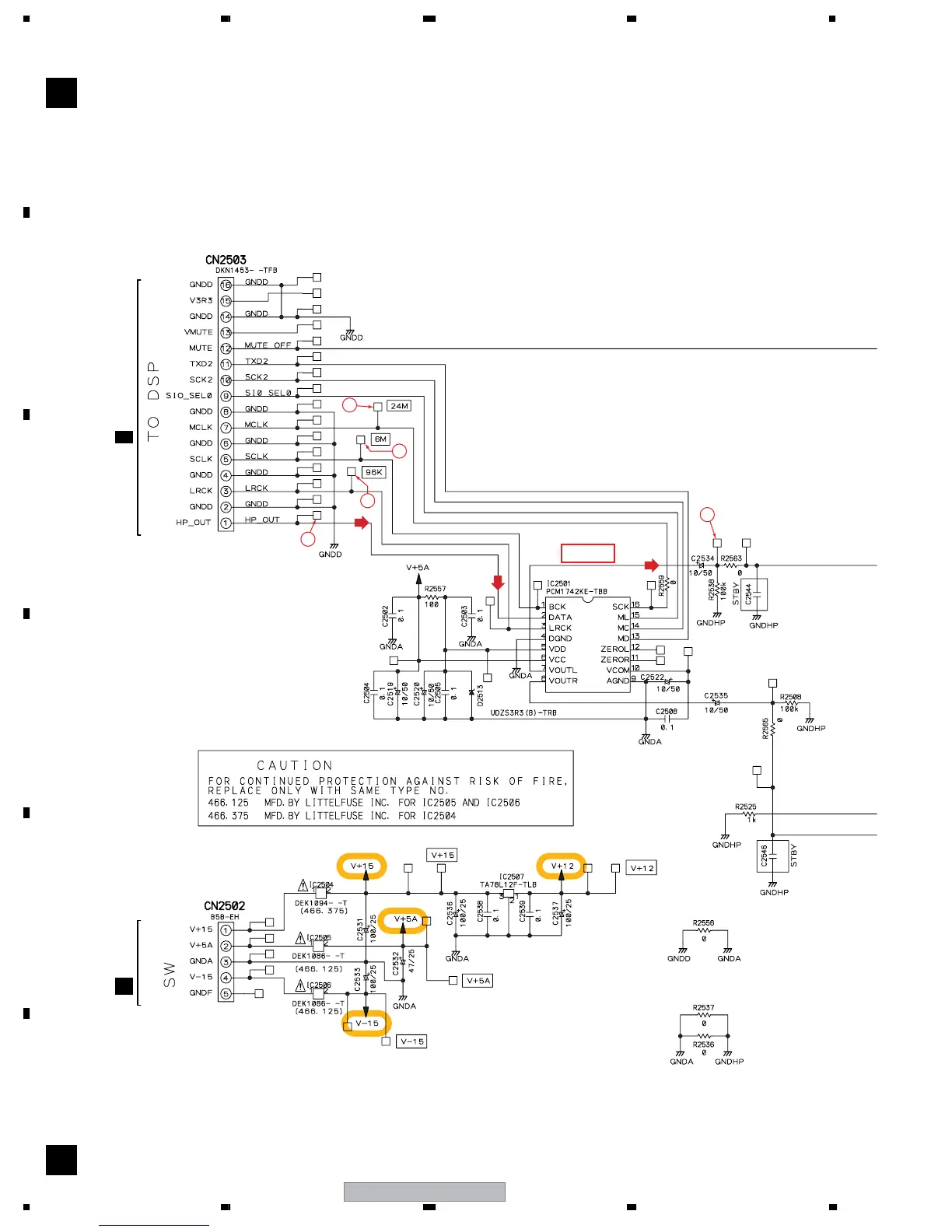

HPAMP ASSY (DWX2556)
O
O

Pioneer DJM-800 Specifications

General

Equalizer	Yes
Product color	Black
Audio output channels	4.0 channels
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.005 %
Connectivity technology	Wired
Digital audio coaxial out	1
Dimensions (WxDxH)	320 x 108 x 381 mm
Power consumption (typical)	30 W

Weight and Dimensions

Weight	8000 g
