6 Area indicating the remote control’s
status
7 Nothing displayed
Nothing is displayed here when the remote
control code sending mode is set to IR.
8 Scroll indicators
Light when there are more selectable items
when making the various settings.
9 Receiver input indicator
This indicates the input function currently
selected for the receiver’s zone.
10 Receiver display
The same information as on the receiver’s dis-
play is displayed here.
11 Master volume display
This indicates the volume of the receiver’s
main zone using, as an icon and in decibels
(dB). When the sound is muted, the
icon is
displayed.
12 Area indicating the receiver’s status
RF adapter
Front
21
Rear
3
1 LED
2 SETTING
Use to pairing the RF adapter and remote con-
trol (page 71).
3 IR blaster terminals
Connect the IR blaster cable (page 71).
En
10

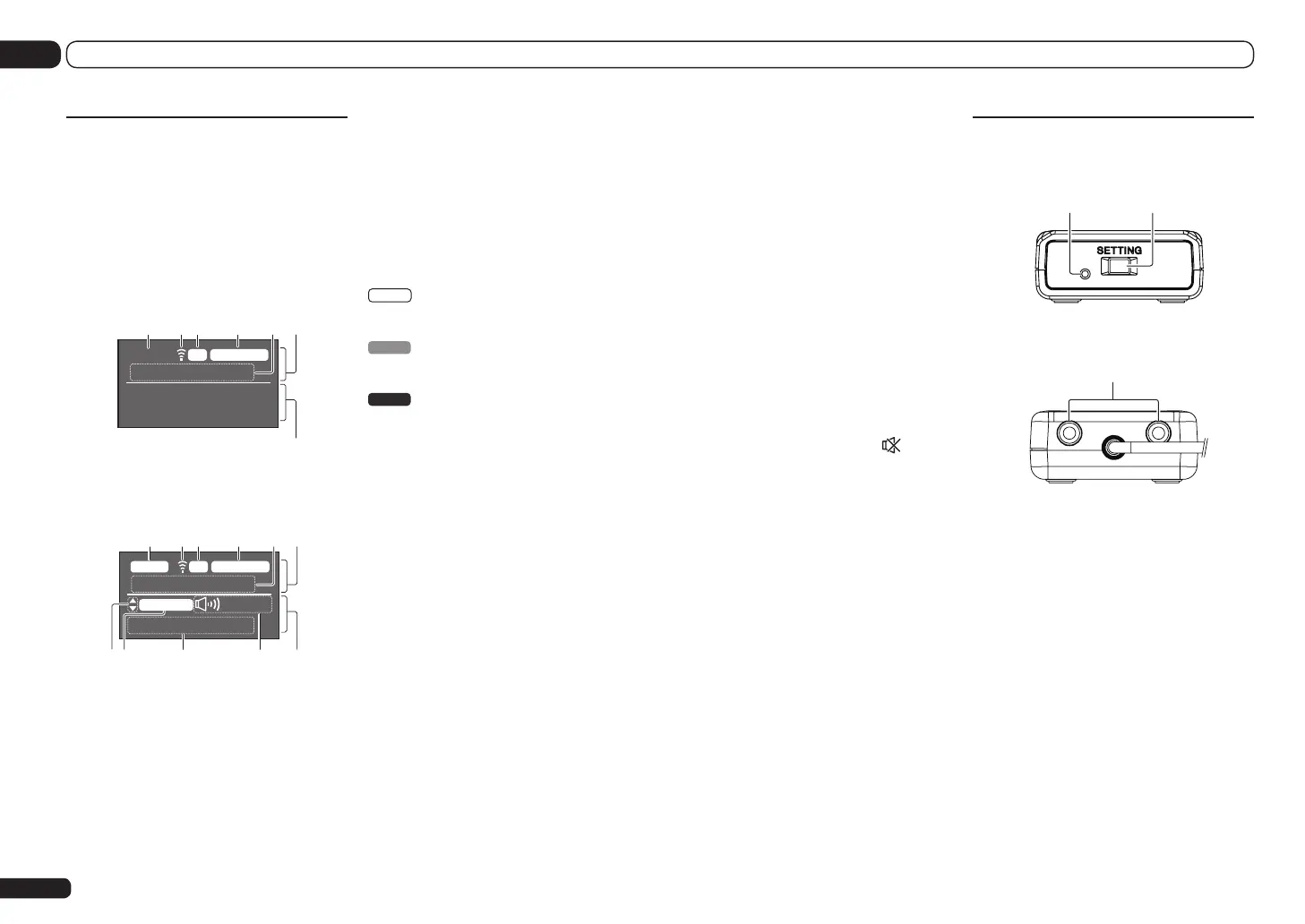

02 Controls and displays
Remote control display
The display lights when a remote control opera-
tion is performed, then turns off after 20 sec-
onds if no other operation is performed. When
in the Remote Setup mode, the setup is can-
celed and the display turns off if no operation is
performed for 1 minute (page 64).
Remote control display for infrared
signal transmission (default)
MAIN SOURCEIR
iPod/USB
1 2 3 4
56
7
Remote control display for RF two-
way communications
MAIN
VIDEO
RCV CTRLRF
AV RECEIVER
1. Adv MCACC
+12.0dB
1 2 3 4
56
89
10 11 12
! This is displayed when an RF adapter is
connected to the receiver and paired with the
remote control. For details, see Using the RF
communications function on page 70.
! Depending on the communications
environment, two-way communications may
not work well and the remote control display
may not reflect the receiver’s status.
1 Remote control operating zone
indicator
This indicates which zone the remote control is
currently set to operate. The display indicates
the setting of the MULTI-ZONE operation selec-
tor switch.
Only when RF two-way communications:
The box display here indicates the communica-
tion status between this remote control unit and
the receiver.
MAIN
(White box with black letters): Two-
way communications are established and the
receiver’s power is on.
MAIN
(Gray box with black letters): Two-way
communications are established and the
receiver’s power is off.
MAIN
(White letters only): Two-way commu-
nications are not working well. In this case, the
area indicating the receiver’s status (12) is not
displayed.
2 Remote control code sending indicator
This appears when signals are sent from the
remote control.
3 Remote control code sending mode
indicator
This indicates whether remote control codes
are being sent by infrared (IR) signal or RF
communications.
4 Remote control operation indicator
This indicates which operation mode the
remote control is currently set to. The display
indicates the setting of the remote control
operation selector switch.
5 Input function and sending code
indicator
This indicates what input function can currently
be operated with the remote control. Also, when
a button is pressed and its operation code is
sent, the name of that code is displayed.
