Pioneer SX-1080 Service Manual

SX-1 080

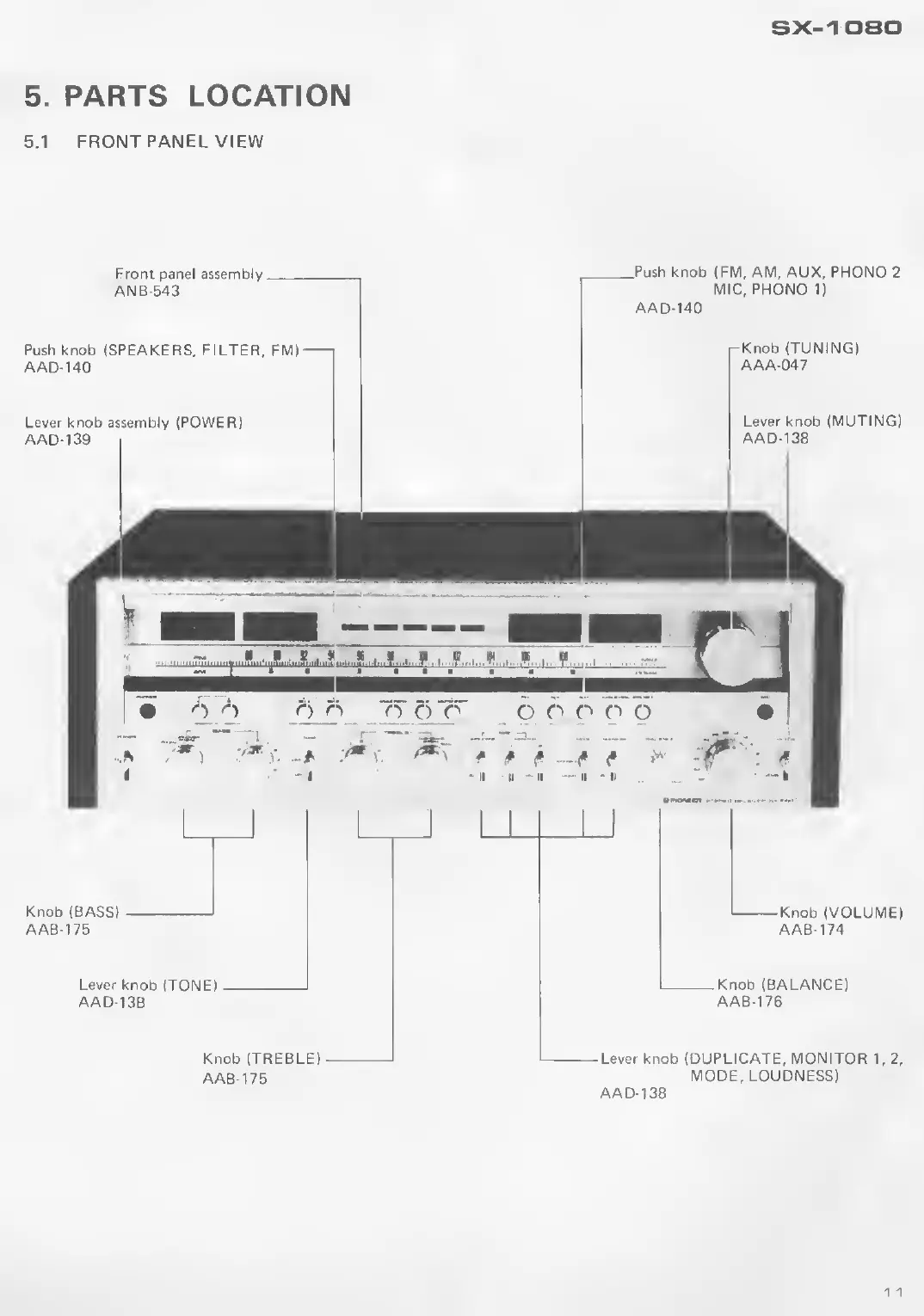

5. PARTS LOCATION
5.1 FRONT PANEL VIEW
Front panel assembly
ANB-543
Push knob (SPEAKERS. FILTER. FM)
AAD-140
Lever knob assembly (POWER}
AAD-139
Push knob {FM, AM, AUX, PHONO 2
MIC, PHONO 1)
rKnob (TUNING}
AAA047
Lever knob (MUTING)
Knob (BASS)
AAB-175
Knob (VOLUME)
AAB-174
Lever knob (TONE
AAD-138
Knob (TREBLE)
AAB-175
Knob (BALANCE)
AAB-176
Lever knob (DUPLICATE, MONITOR 1,2,
MODE, LOUDNESS)
AAD-138

Pioneer SX-1080 Specifications

General

Total Harmonic Distortion	0.1% (at rated power)
Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line), 1V (Pre out)
Speaker Load Impedance	4Ω to 16Ω
Frequency Response	5Hz to 100kHz
Signal to Noise Ratio	90dB (line)
Semiconductors	4 x FET, 6 x IC
Power Output	120 watts per channel (8 ohms, 20Hz-20kHz)
