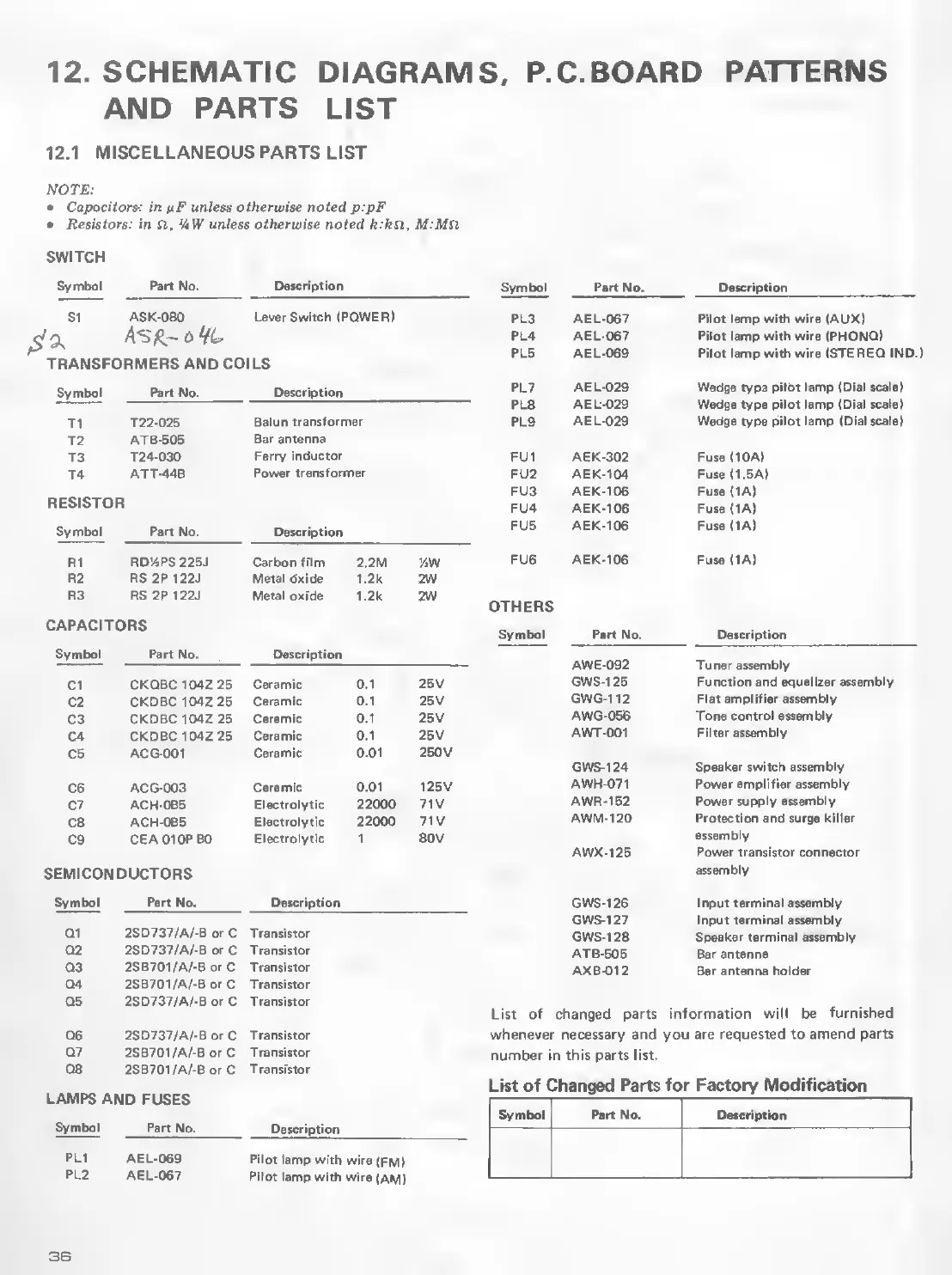

12.
SCHEMATIC
DIAGRAMS,
P.C.BOARD
PATTERNS
AND
PARTS
LIST
12.1
MISCELLANEOUS
PARTS
LIST
NOTE:
•
Capacitors:
in
fiF
unless
otherwise
noted
p:pF
•
Resistors:
in
unless
otherwise
noted
k:kSl,
M:Mil
SWITCH
Symbol
Part
No.
Description
S1
ASK-080
Lever
Switch
<POWER)
TRANSFORMERS
AND
COILS
Symbol
Part
No.
Description
T1
T22-025
Baiun
transformer
T2
ATB-505
Bar
antenna
T3
T24-030
Ferry
inductor
T4
ATT-448
Power
transformer
RESISTOR
Symbol
Part
No.
Description
R1
RD’/^PS
225J
Carbon
film
2.2M
V4W
R2
RS
2P
122J
Metal
<5xide
1.2k
2W
R3
RS
2P
122J
Metal
oxide
1.2k
2W
CAPACITORS
Symbol
Part
No.
Description
C1
CKDBC
104Z
25
Ceramic
0.1
25V
C2
CKDBC
104Z
25
Ceramic
0.1
25V
C3
CKDBC
104Z
25
Ceramic
0.1
25V
C4
CKDBC
104Z
25
Ceramic
0.1
25V
C5
ACG-001
Ceramic
0.01
250V
C6
ACG-003
Ceramic
0.01
125V
C7
ACH-085
Electrolytic
22000
71V
C8
ACH-085
Electrolytic
22000
71V
C9
CEA010P80
Electrolytic
1
80V
SEMICONDUCTORS
Symbol
Part
No.
Description
Q1
2SD737/A/-B
or
C
Transistor
Q2
2SD737/A/-B
or
C
Transistor
03
2SB701/A/-BorC
Transistor
04
2SB701/A/-BorC
Transistor
05
2SD737/A/-B
or
C
Transistor
06
2SD737/A/-BorC
Transistor
07
2SB701/A/-B
or
C
Transistor
08
2SB701/A/-BorC
Transistor
LAMPS
AND
FUSES
Symbol
Part
No.
Description
PLl
AEL-06g
Pilot
lamp
with
wire
(pi^)
PL2
AEL-067
Pilot
lamp
with
wire
(AM)
Symbol
Part
No.
Description
PL3
AEL-067
Pilot
lamp
with
wire
(AUX)
PL4
AEL-067
Pilot
lamp
with
wire
(PHONO)
PL5
AEL'069
Pilot
lamp
with
wire
(STEREO
IND.)
PL7
AEL-02g
Wedge
typa
pilot
lamp
(Dial
scale)
PL8
AEL-029
Wedge
type
pilot
lamp
(Dial
scale)
PL9
AEL-02g
Wedge
type
pilot
lamp
(Dial
scale)
FU1
AEK-302
Fuse
(10A)
FU2
AEK-104
Fuse
(1.5A)
FU3
AEK-106
Fuse
(1A)
FU4
AEK-106
Fuse
(1A)
FU5
AEK-106
Fuse
(1A)
FU6
AEK-106
Fuse
(1A)
OTHERS
Symbol
Part
No.
Description
AWE-092
Tuner
assembly
GWS-125
Function
and
equalizer
assembly
GWG-112
Flat
amplifier
assembly
AWG-056
Tone
control
assembly
AWT-001
Filter
assembly
GWS-124
Speaker
switch
assembly
AWH-071
Power
amplifier
assembly
AWR-152
Power
supply
assembly
AWM-120
Protection
and
surge
killer
assembly
AWX-125
Power
transistor
connector
assembly
GWS-126
Input
terminal
assembly
GWS-127
Input
terminal
assembly
GWS-128
Speaker
terminal
assembly
ATB-506
Bar
antenna
AXB-012
Bar
antenna
holder
List
of
changed
parts
information
will
be
furnished
whenever
necessary
and
you
are
requested
to
amend
parts
number
in
this
parts
list.
List
of
Changed
Parts
for
Factory
Modification
Symbol
Part
No.
Description
3B
