Pioneer SX-1080 Service Manual

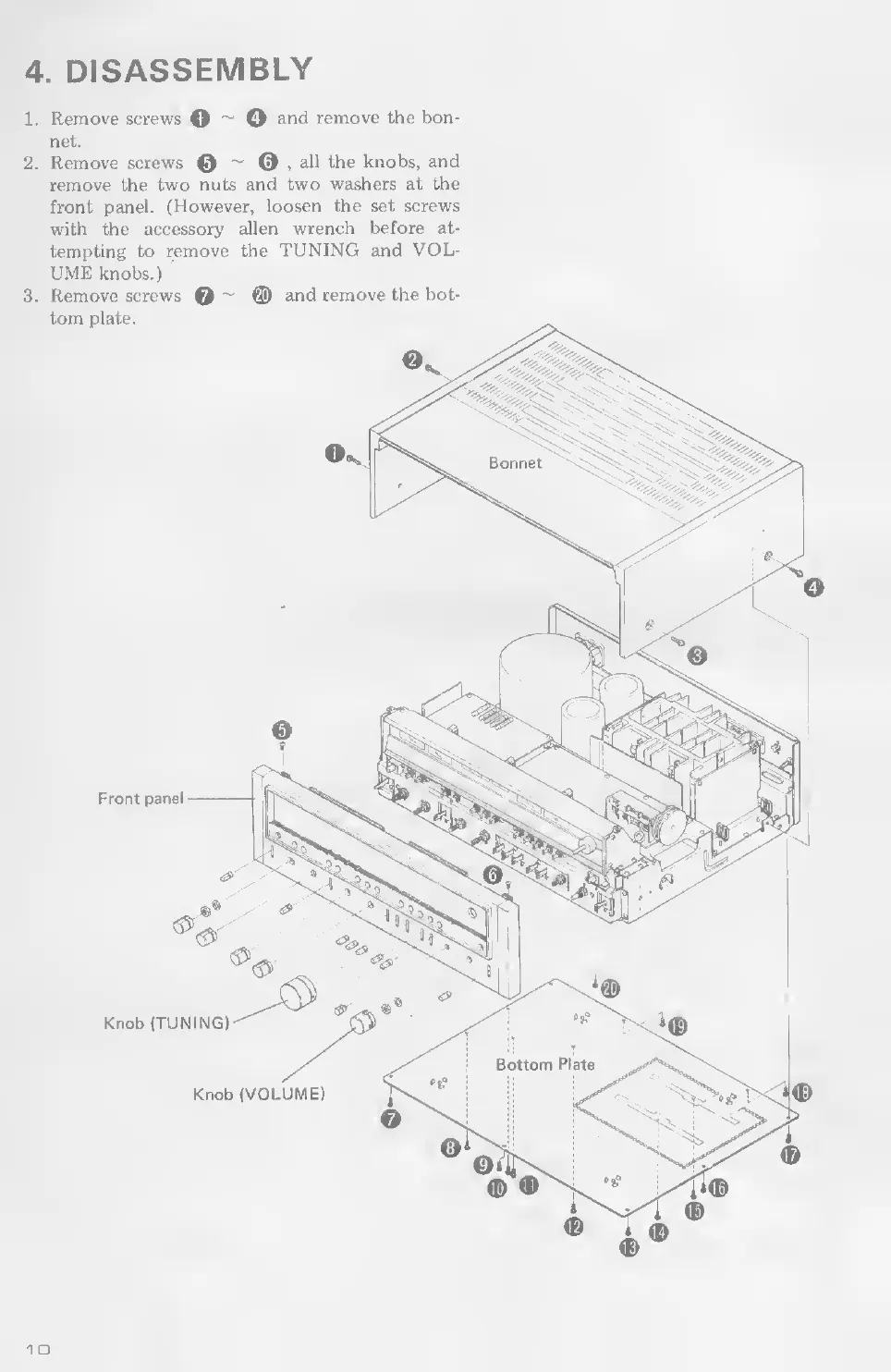

4. DISASSEMBLY
1. Remove screws O ~ O remove the bon¬
net.
2. Remove screws 0-0 , all the knobs, and
remove the two nuts and two washers at the
front panel. (However, loosen the set screws
with the accessory alien wrench before at¬
tempting to remove the TUNING and VOL¬
UME knobs.)
3. Remove screws © ~ 0 and remove the bot-
1 o
