Pioneer SX-1080 Service Manual

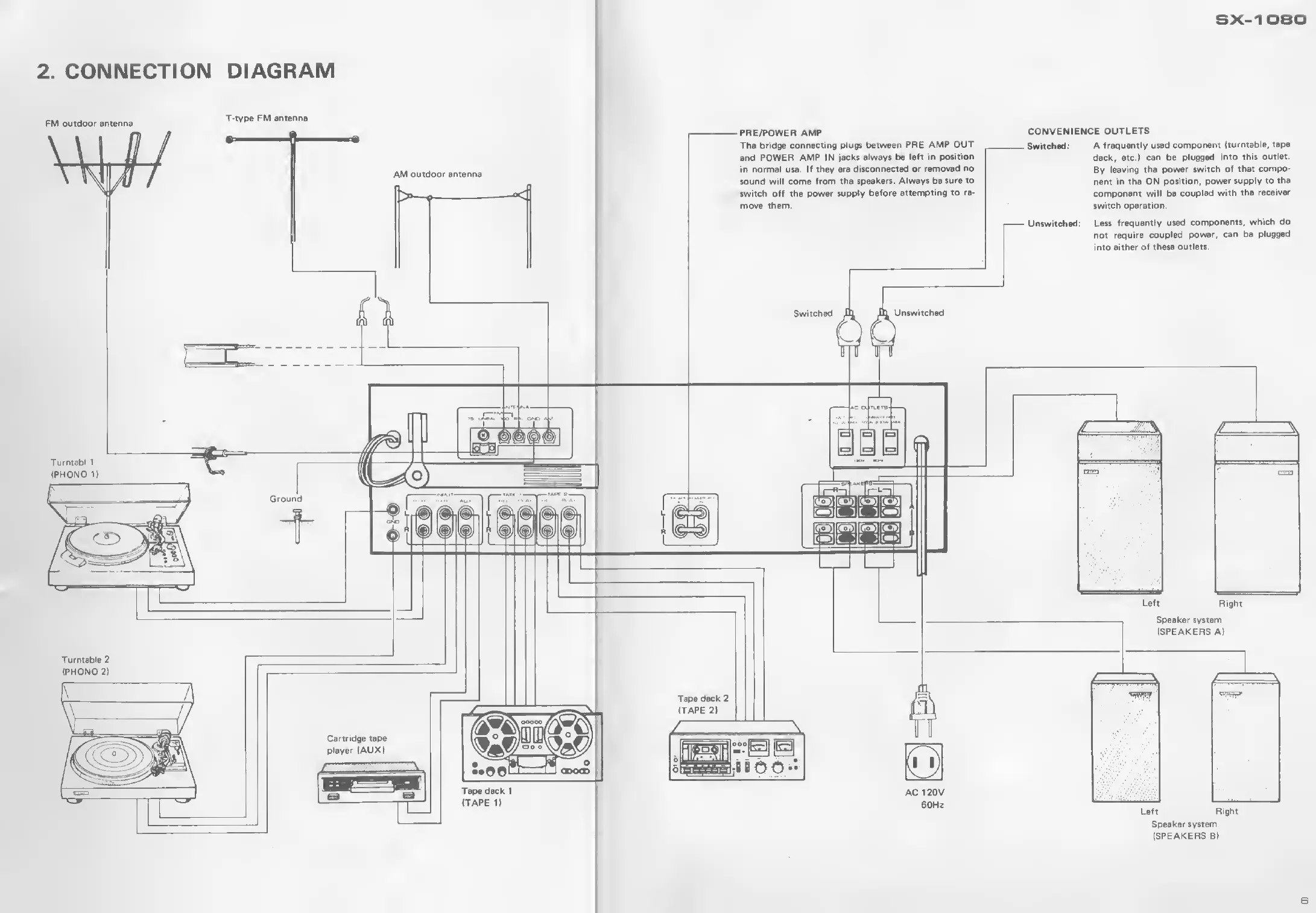

2. CONNECTION DIAGRAM
FM outdoor antenna
T-type FM antenna
O’O'
SX-i 080
Tape deck 2
ITAPE 21
tSBOO*;
AC 120 V
60Hz
Left Right
Speaker system
(SPEAKERS B>
B

Pioneer SX-1080 Specifications

General

Total Harmonic Distortion	0.1% (at rated power)
Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line), 1V (Pre out)
Speaker Load Impedance	4Ω to 16Ω
Frequency Response	5Hz to 100kHz
Signal to Noise Ratio	90dB (line)
Semiconductors	4 x FET, 6 x IC
Power Output	120 watts per channel (8 ohms, 20Hz-20kHz)
