Pioneer SX-1080 Service Manual

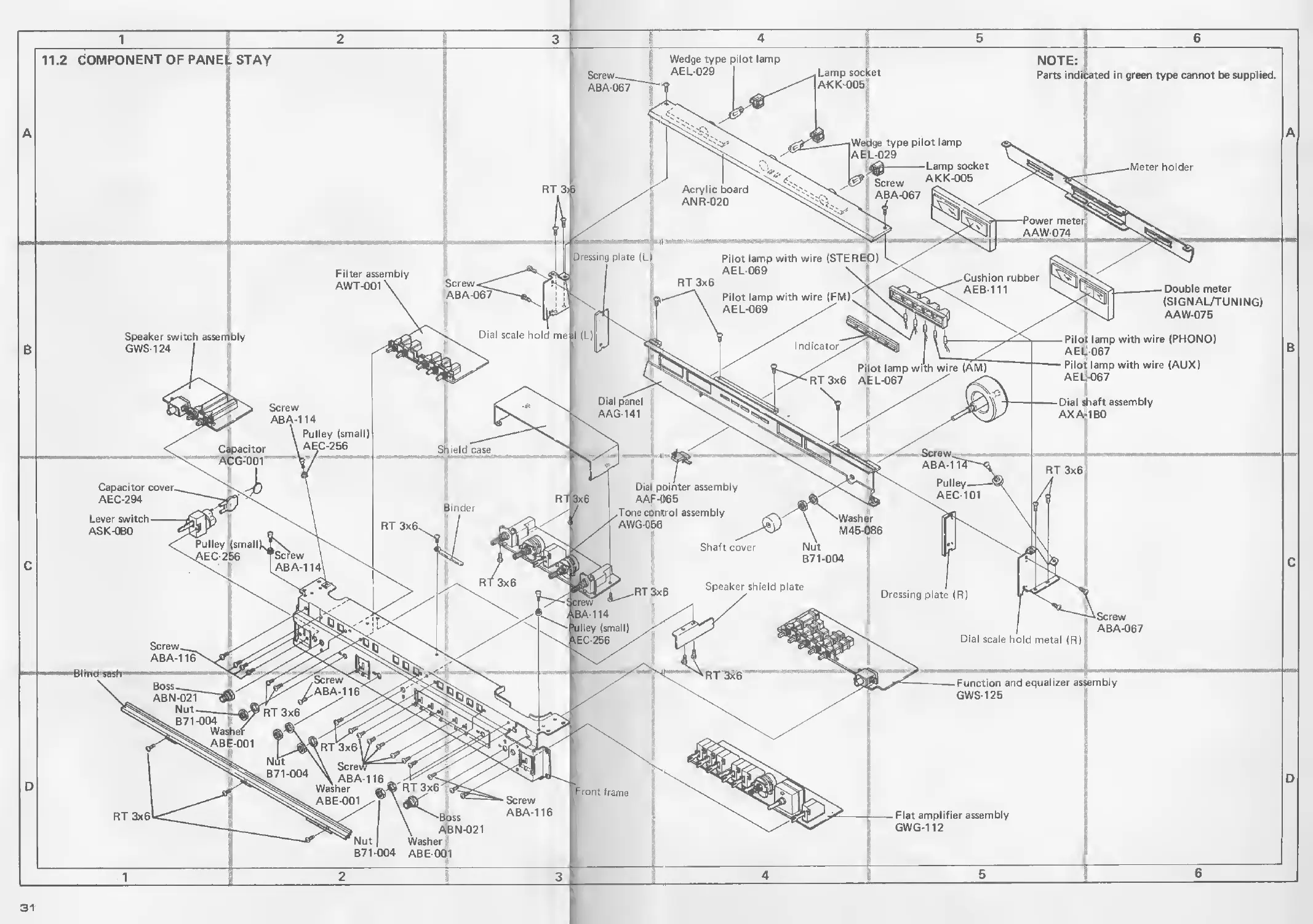

11.2 COMPONENT OF PANE|. STAY
Wedge type pilot lamp
AEL-029 I
NOTE:
Parts indicated in green type cannot be supplied,
Lamp socket
AKKO05
Screw—
ABA-067
•Wedge type pilot lamp
IaE1--029
socket
■ Meter holder
Screw AKK-OOB
ABA-067
Acrylic board
ANR-020
•Power meter
AAW-074
Dressing plate (L)
Pilot lamp with wire (STEREO)
AEL-069 \
Filter assembly
AWT-001\
Cushion rubber
AEB-111
Screwc:;;]
ABA-067
Double meter
Pilot lamp with wire (FM)
AEL-069 /
(SIGNAL/TUNING)
AAW-075
Speaker switch assembly
GWS-124 /
lamp with wire (PHONO)
■ 067
lamp with wire (AUX)
Indicator
Pilot lamp with wire (AM)
RT3x6 AEL-067 /
Dial ^aft assembly
AXA-180
Screw
ABA-114
Pulley (small)
A EC-256
Capacitor
Shield case
Screw.
Capacitor cover.
AEC-294
Lever switch-
ASK-080
Dial pointer assembly
AAF-065
Tone control assembly
AWG-0B6
Binder
Washer
M45-08
Shaft cover
'Screw \
ABA-114'
Speaker shield plate
Dressing plate |R)
Screw
ABA-067
Dial scale hold metal (R)
Screw^
ABA-116
Screw
ABA116
Function and equalizer as$embly
GWS-125
B71-004
Washer
ABE-001
Washer
ABE-001
Screw
ABA-116
Flat amplifier assembly
GWG-112
■ Boss
ABN-021
Washer
ABE-00‘1
1
2
3
31

Pioneer SX-1080 Specifications

General

Total Harmonic Distortion	0.1% (at rated power)
Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line), 1V (Pre out)
Speaker Load Impedance	4Ω to 16Ω
Frequency Response	5Hz to 100kHz
Signal to Noise Ratio	90dB (line)
Semiconductors	4 x FET, 6 x IC
Power Output	120 watts per channel (8 ohms, 20Hz-20kHz)
