Pioneer SX-1080 Service Manual

5X-1 080

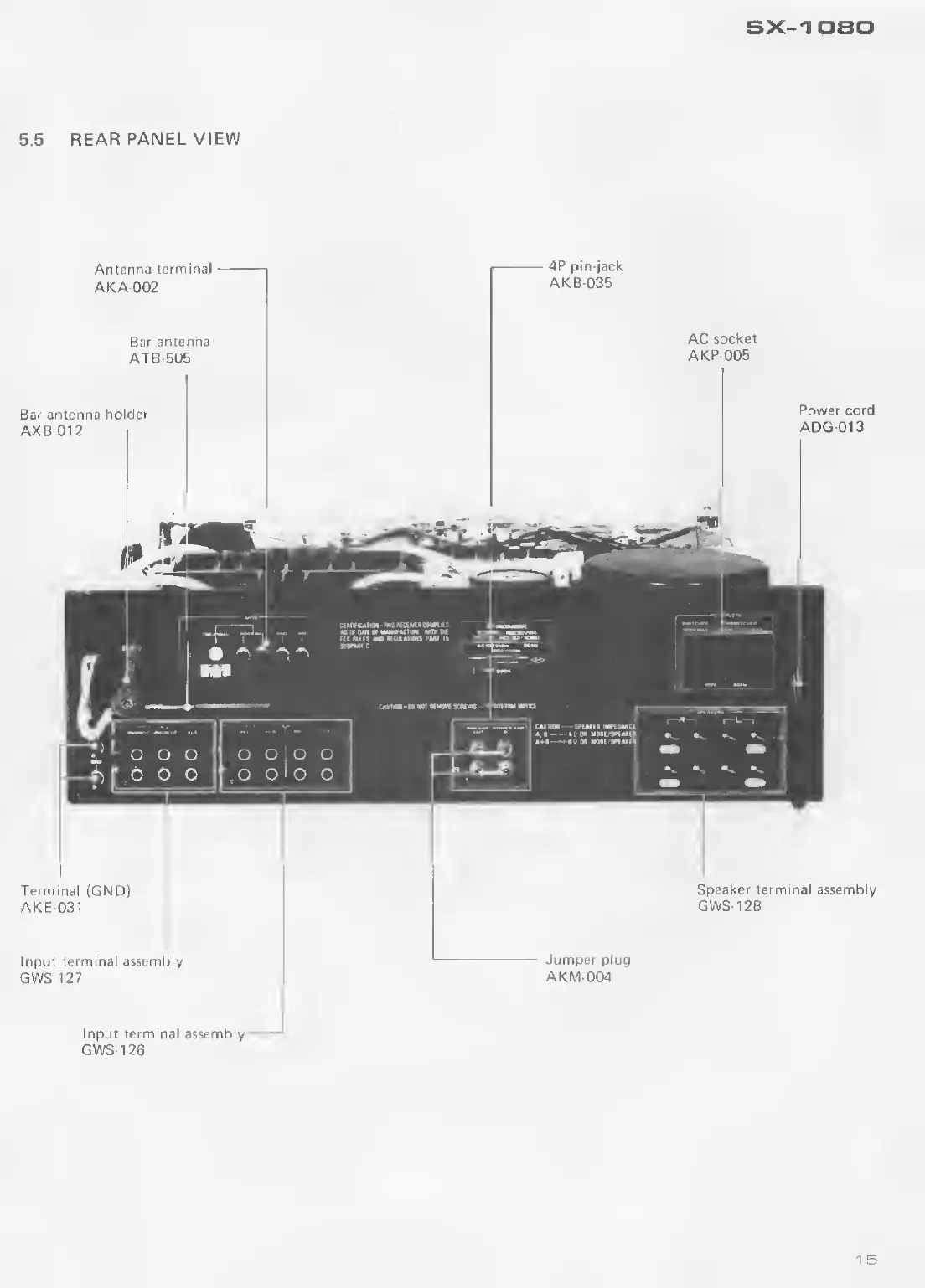

5.5 REAR PANEL VIEW
Antenna terminal
AKA002
4P pin-jack
AKB-035
Bar antenna
ATB-505
Bar antenna holder
AXB-012 I
AC socket
AKP-005
Power cord
ADG-013
Terminal (GNDI
AKE-031
Speaker terminal assembly
GWS-128
Input terminal assembly
GWS-127
— Jumper plug
AKM-004
Input terminal assembly
GWS-126

Pioneer SX-1080 Specifications

General

Total Harmonic Distortion	0.1% (at rated power)
Tuning Range	FM, MW
Damping Factor	30
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line), 1V (Pre out)
Speaker Load Impedance	4Ω to 16Ω
Frequency Response	5Hz to 100kHz
Signal to Noise Ratio	90dB (line)
Semiconductors	4 x FET, 6 x IC
Power Output	120 watts per channel (8 ohms, 20Hz-20kHz)
