Pioneer SX-1080 Service Manual

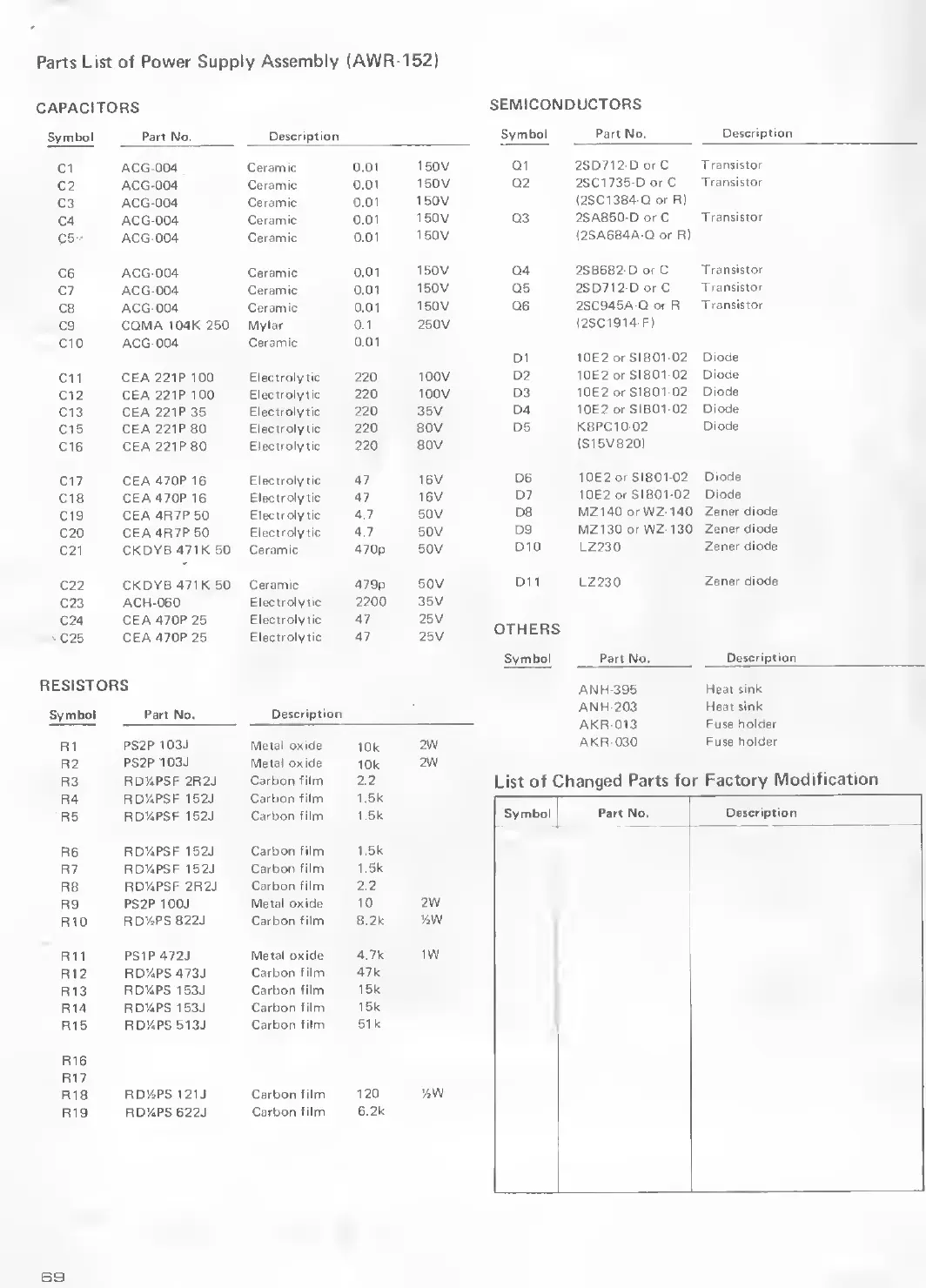

Parts List of Power Supply Assembly (AWR-152)
CAPACITORS
SEMICONDUCTORS
Symbol
Part No. Description
Symbol
Part No.
Description
Cl
ACG-004 Ceramic 0.01
150V
Q1
2SD712-D or C
T ransistor
C2
ACG-004
Ceramic 0,01
150 V
Q2
2SC1735-D or C
Transistor
C3
ACG-004 Ceramic 0,01
150V
(3SC1384-Q or R)
C4 ACG-004
Ceramic 0,01
150V Q3
2SA850-D or C
T ransistor
C5 ACG-004
Ceramic 0.01
150 V
<2SA684A-Q or R
C6
ACG-004
Ceramic 0.01
150V
Q4
2SB682-D or C
Transistor
C7 ACG-004
Ceramic 0.01
150 V Q5
2SD712-D or C
Transistor
C8 ACG-004
Ceramic 0.01
150V Q6
2SC945A-Q or R
Transistor
C9
COMA 104K 250 Mylar 0.1
250V
(2SC1914-F)
CIO
ACG-004 Ceramic
0.01
D1
10E2 orSIB01-02 Diode
C11
CEA 221P 100
Electrolytic 220
100 V
D2
10E2 or SIB01-02
Diode
C12
CEA 221P 100 Electrolytic
220
100 V
D3
10E2 or SIB01-02
Diode
C13
CEA 221P 35
Electrolytic
220 35V
D4
10E2 or SIB01-02
Diode
C15
CEA 221P 80
Electrolytic
220 80V
D5
KBPC10-02
Diode
C16
CEA 221P80
Electrolytic 220
80V
<S15VB20)
C17 CEA 470P 16
Electrolytic
47
16V
D6
10E2 or SIB01-02
Diode
C18
CEA 470P 16
Electrolytic 47
16V
D7
10E2 or SIB01-02 Diode
C19
CEA 4R7P 50
Electrolytic
4.7
50V
D8
MZ140 or WZ-140 Zener diode
C20
CEA 4R7P 50 Electrolytic
4,7
50V
D9
MZ130 or WZ-130 Zener diode
C21
CKDYB471K 50 Ceramic
470p
50V
DIO
LZ230
Zener diode
C22
CKDYB 471K 50 Ceramic
479p
50V
D11
LZ230
Zener diode
C23
ACH-060
Electrolytic 2200
35V
C24
CEA 470P 25
Electrolytic
47
25V
C25
CEA 470P 25
Electrolytic
47 25V
Symbol Part No.
Description
RESISTORS
ANH-395
Heat sink
Symbol
Part No.
Description
ANH-203
Heat sink
--
AKR-013
Fuse holder
R1
PS2P 103J Metal oxide
10 k
2 W
AKR-030
Fuse holder
R2
PS2P 103J Metal oxide
10k
2W
R3
RD’APSF 2R2J
Carbon film 2.2
List of Changed Parts for Factory Modification
R4 RD’APSF 152J
Carbon film
R5
RD’/.PSF 152J
Carbon film
1.5k
Symbol
Part No.
Description
R6
RD’APSF 152J
Carbon film
1.5k
R7
RD’/.PSF 152J
Carbon film
1.5k
R8
RD’/.PSF 2R2J
Carbon film 2,2
R9 PS2P 10OJ
Metal oxide 10
2W
R10
RD’^PS 822J Carbon film
8 .2k
’/.W
R11
PS1P 472J
Metal oxide
4.7k IW
R12
RD’/.PS 473J
Carbon film
47k
R13
RD’/.PS 153J Carbon film
15k
R14
RD’/.PS 153J
Carbon film
15k
R15 RD’/.PS 513J
Carbon film
51 k
R16
R17
R18
RD’/.PS 121J Carbon film
120
’/.W
R19
RD’/.PS 622J
Carbon film
6 .2k
B9
