Pioneer SX-750 Service Manual

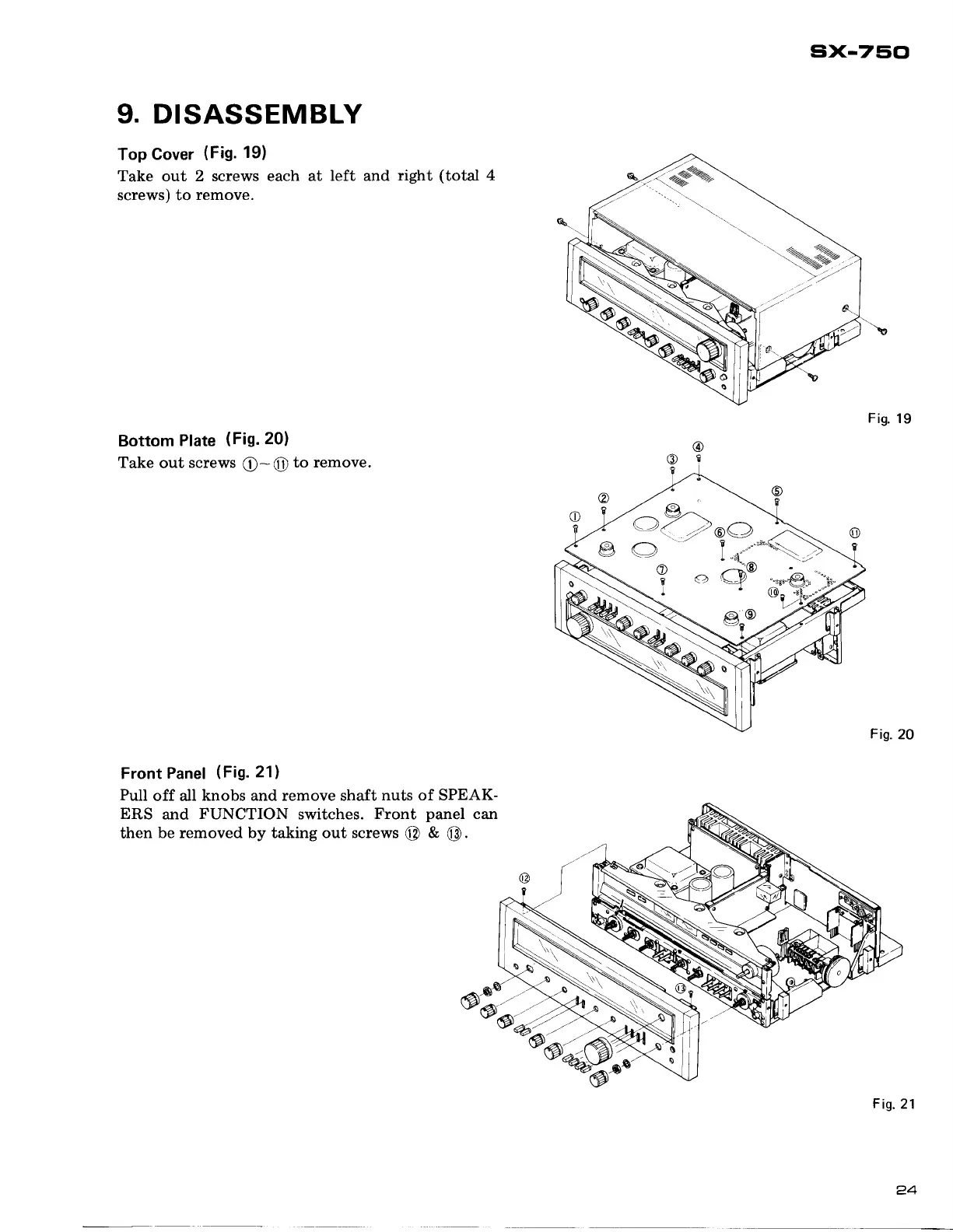

9. DISASSEMBLY
Top
Cover
(Fig.
19)
Take
out
2 screws each at
left and
right
(total
4
screws) to
remove.
Bottom
p161s
(Fig.20)
Take
out
screws
e- @
to remove.
Front
Panel
(Fig.
21)
Pull
off all
knobs and remove shaft
nuts of SPEAK-
ERS
and
FUNCTION
switches.
Front
panel
can
then
be removed by taking out screws
@
&
@.
six-7scl
Fis.
19
Fis.
20
Fig.21
{=7?X
24

Pioneer SX-750 Specifications

General

Signal to Noise Ratio	75dB (MM), 90dB (line)
Tuning Range	FM, MW
Damping Factor	30
Power Output	50 watts per channel (8 ohms, 20Hz-20kHz)
Frequency Response	10Hz to 50kHz
Total Harmonic Distortion	0.3%
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line)
Speaker Load Impedance	4Ω to 16Ω
