sx-75C'

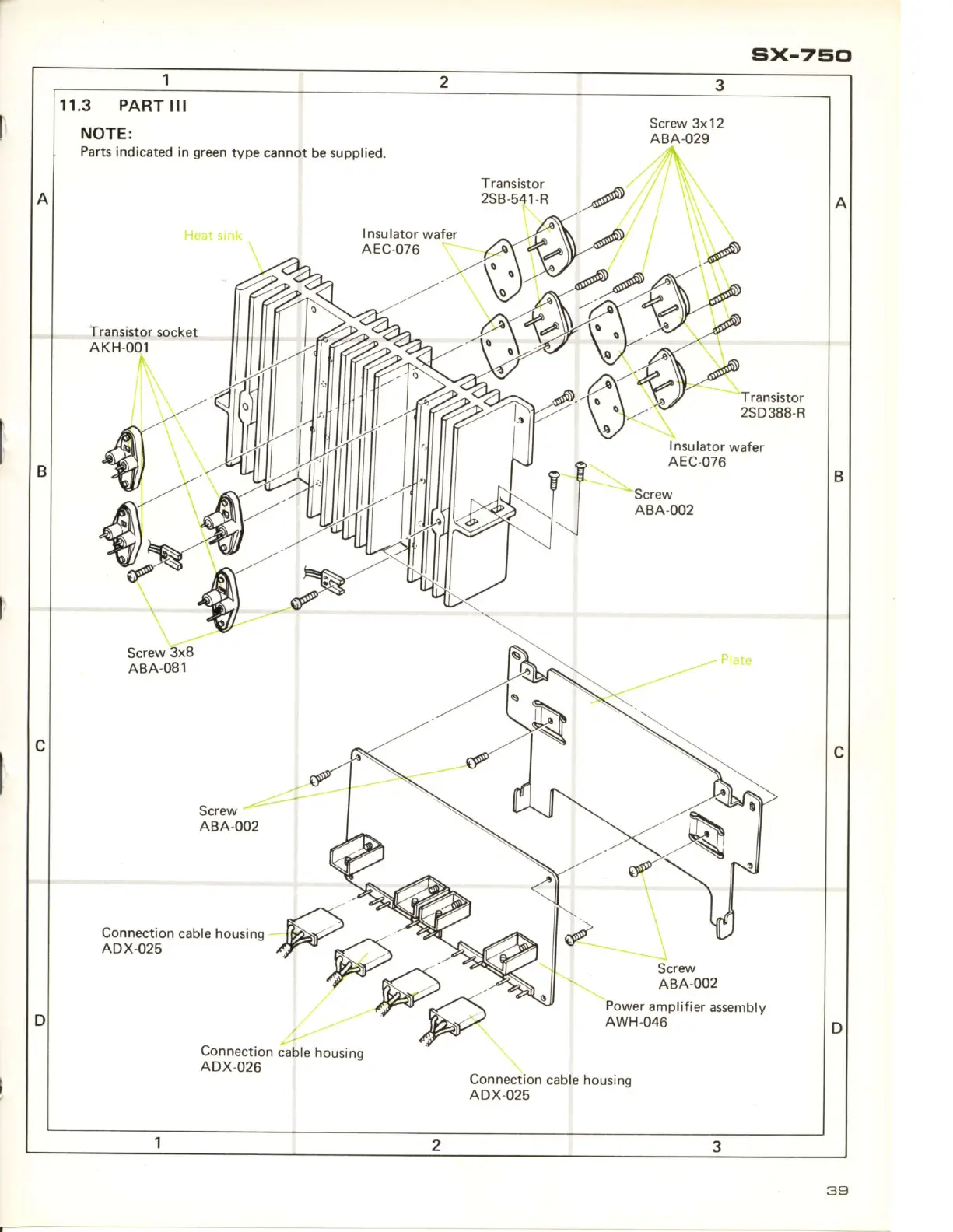

11.3 PART
ill
NOTE:
Parts
indicated in
green
type cannot
be supplied.
Screw
3x12
ABA-029
Transistor
25B-541-R
Insulator
wafer
AEC-076
Transistor
socket
AKH.OOl
Transistor
25D388.R
lnsulator
wafer
AEC.076
Screw
ABA.OO2
-F
Screw
3x8
ABA.O81
Screw
ABA.OO2
Connection
cable housing
ADX-025
Screw
ABA.OO2
Power
amplifier
assembly
AWH-O46
.'
Connection
cable housing
ADX.026
Connection
cable housing
ADX.O25
A
A
B
B
c
c
D
D
