Pioneer SX-750 Service Manual

12.3
INTERNAL

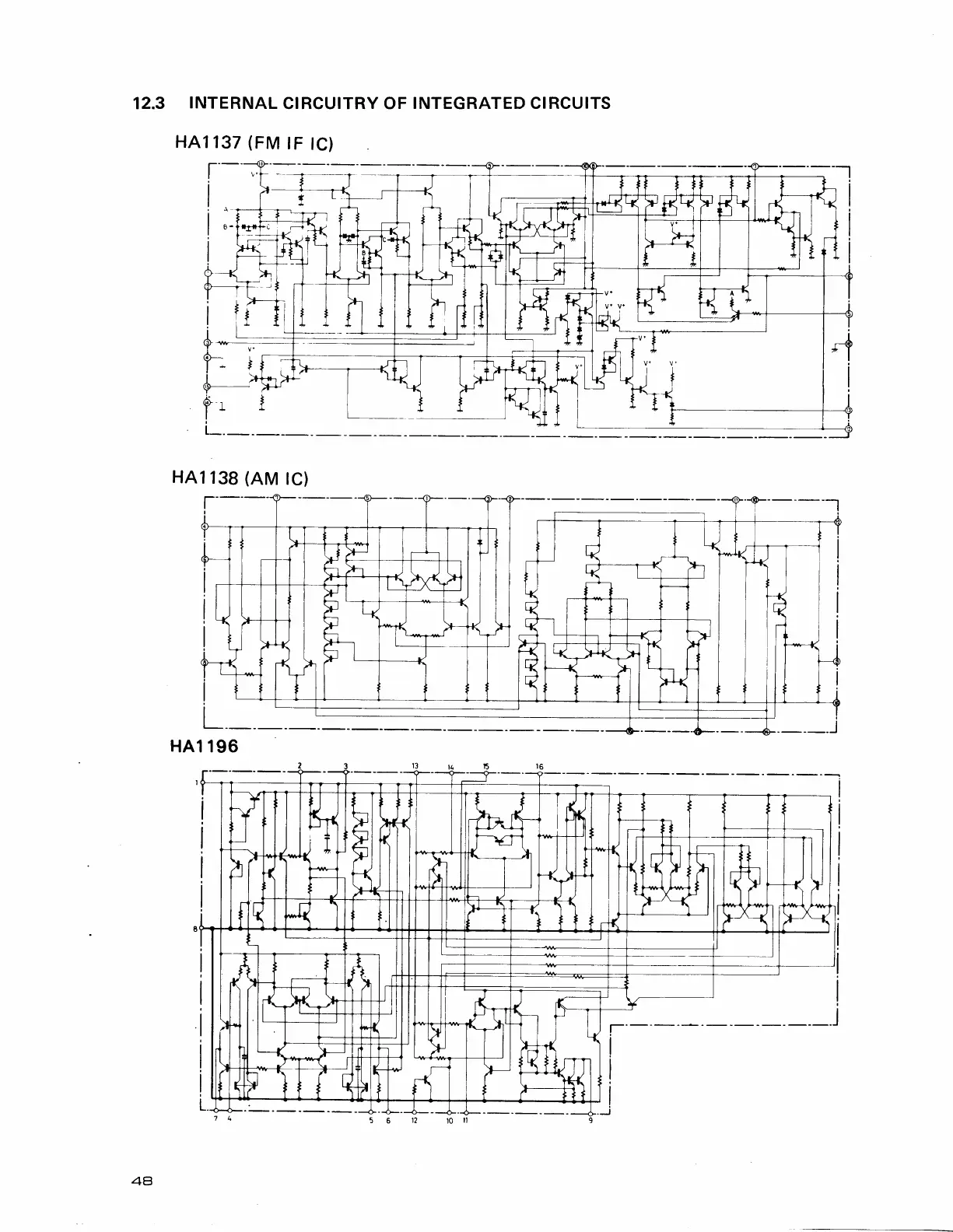

CIRCUITRY OF
INTEGRATED CIRCUITS
HAl 137
(FM
tF
tc)
++-lt
l_-:
i
HA1138
(AM
tC)
I t l*
|
-i-
,
t_
191
l(
HA
48

Pioneer SX-750 Specifications

General

Signal to Noise Ratio	75dB (MM), 90dB (line)
Tuning Range	FM, MW
Damping Factor	30
Power Output	50 watts per channel (8 ohms, 20Hz-20kHz)
Frequency Response	10Hz to 50kHz
Total Harmonic Distortion	0.3%
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line)
Speaker Load Impedance	4Ω to 16Ω
