Pioneer SX-750 Service Manual

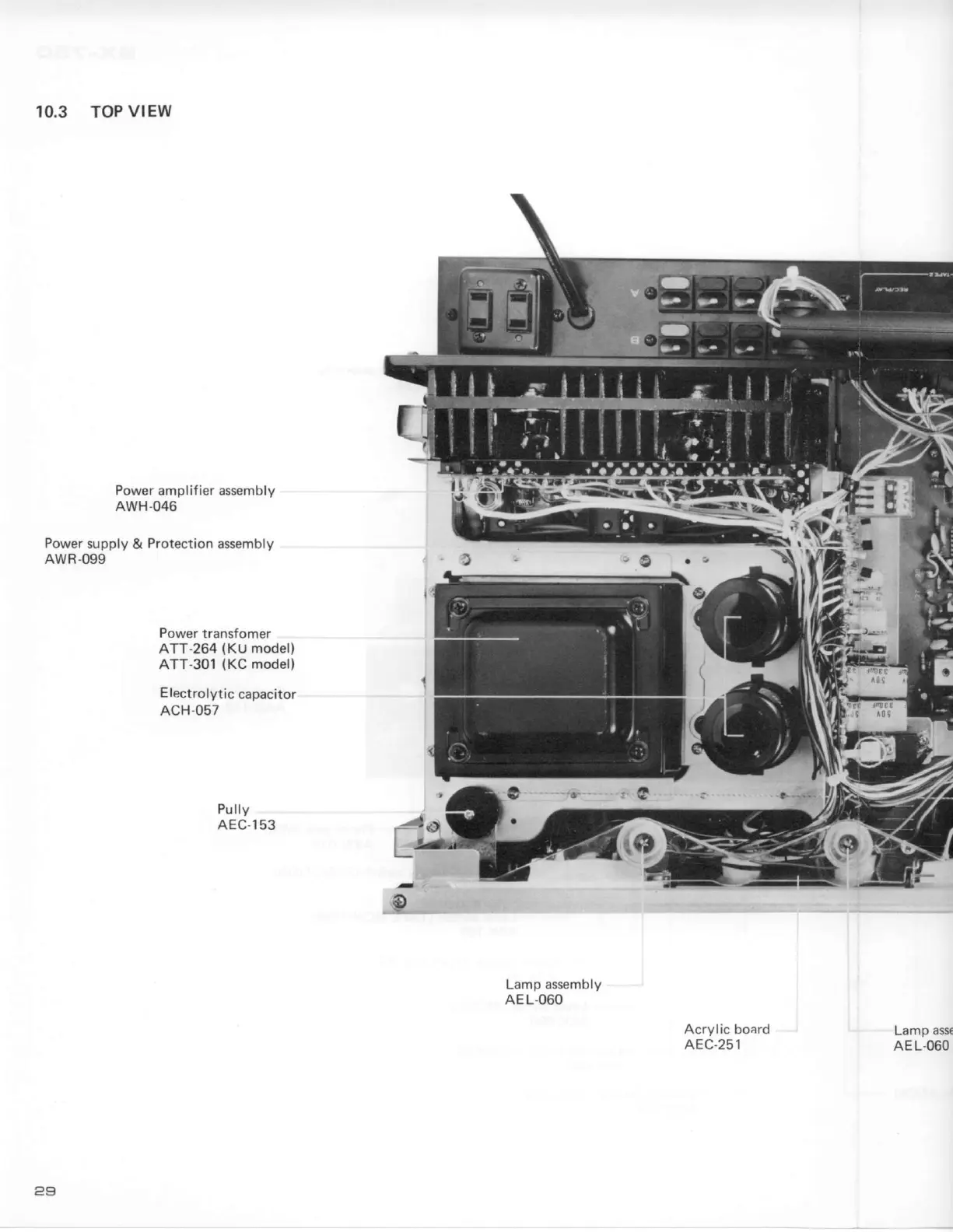

10.3 TOP
VIEW
Power amplif ier assembly
AWH,O46
Power
supply
&
Protection
assembly
AWR.O99
Power
transfomer
4TT-264
(Ku
model)
ATT'301
(KC
model)
E
lectrolytic
capacitor
ACH,057
Pu lly
AEC.153
Lamp
assembly
AE L.060
Acrylic
board
AEC 251
Lamp
ass€
AE L-060

Pioneer SX-750 Specifications

General

Signal to Noise Ratio	75dB (MM), 90dB (line)
Tuning Range	FM, MW
Damping Factor	30
Power Output	50 watts per channel (8 ohms, 20Hz-20kHz)
Frequency Response	10Hz to 50kHz
Total Harmonic Distortion	0.3%
Input Sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line)
Speaker Load Impedance	4Ω to 16Ω
