Staple Cartrigde and Stapler Head

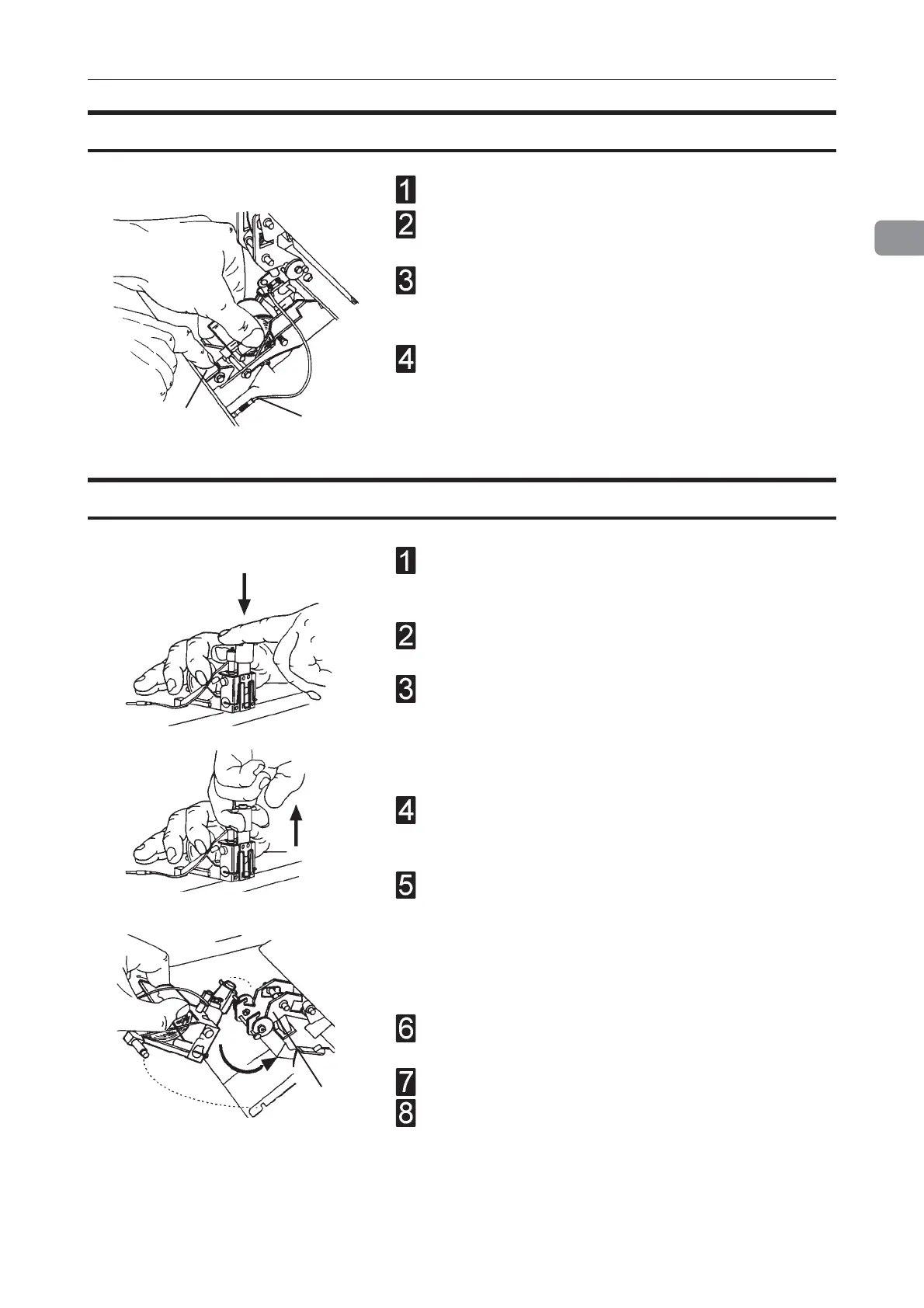

Open the top cover.

Disconnect the staple indication lead (A) from the

socket.

Hold the stapler head in place, press the release

latch (B) to release the rear end of the stapler head

and lift up this end.

Lift out the head, allowing it to rotate around the

front end. The stapler assembly is spring loaded

and will follow the rotation of the stapler.

Removing stapler head

Installing stapler head / clearing staple jam

Remove stapler cartridge. Look inside stapler

head to locate jammed staples by eject point.

Remove staples if any.

Position the stapler head on the edge of a firm

surface (for example the top of a table).

While securely holding the head, actuate the Stapler

up and down through full travel. Perform this opera-

tion first without staple cartridge then with staple

cartridge. Repeat this a few times to ensure that the

staples are ejected at each down movement.

Reinstall the stapler head by inserting the pin at the

top of the stapler head into the stapler retraction

swing arm (C).

While rotating the stapler head, insert the pin

located at the rear end of the stapler head into the

slots in the frame of the stapler head assembly.

Press down the rear end of the stapler head until

the release lever snaps into place, locking the

stapler head in position.

Press down the front end of the stapler head until it

snaps in position under the frame assembly.

Reconnect the staple indication lead (A).

Close the top cover. Hand feed a two sheet set.

The booklet maker will automatically cycle and

advance staples until both stapler heads are driving

staples. If not and/or error message persists,

repeat procedure.

Plockmatic SR90 User Manual
