FUEL SYSTEM/CARBURETION
3.13
1. Carburetor Assembly
2. Gasket
3. Throttle Spring
4. Bolt
5. Washer
6. Valve, Throttle
7. Jet Needle
8. Needle Jet
9. Seal, Float Chamber
10. Main Jet
11. Overflow Tube
12. Pilot Jet
13. Pilot Air Screw
14.Drain Plug
15. Bolt
16. Washer .
17.Bolt
18. Starter Plunger
19.O-ring
20. Throttle Screw
21. Needle and Seat
22. Float Pin
23. Cable Adjuster Nut

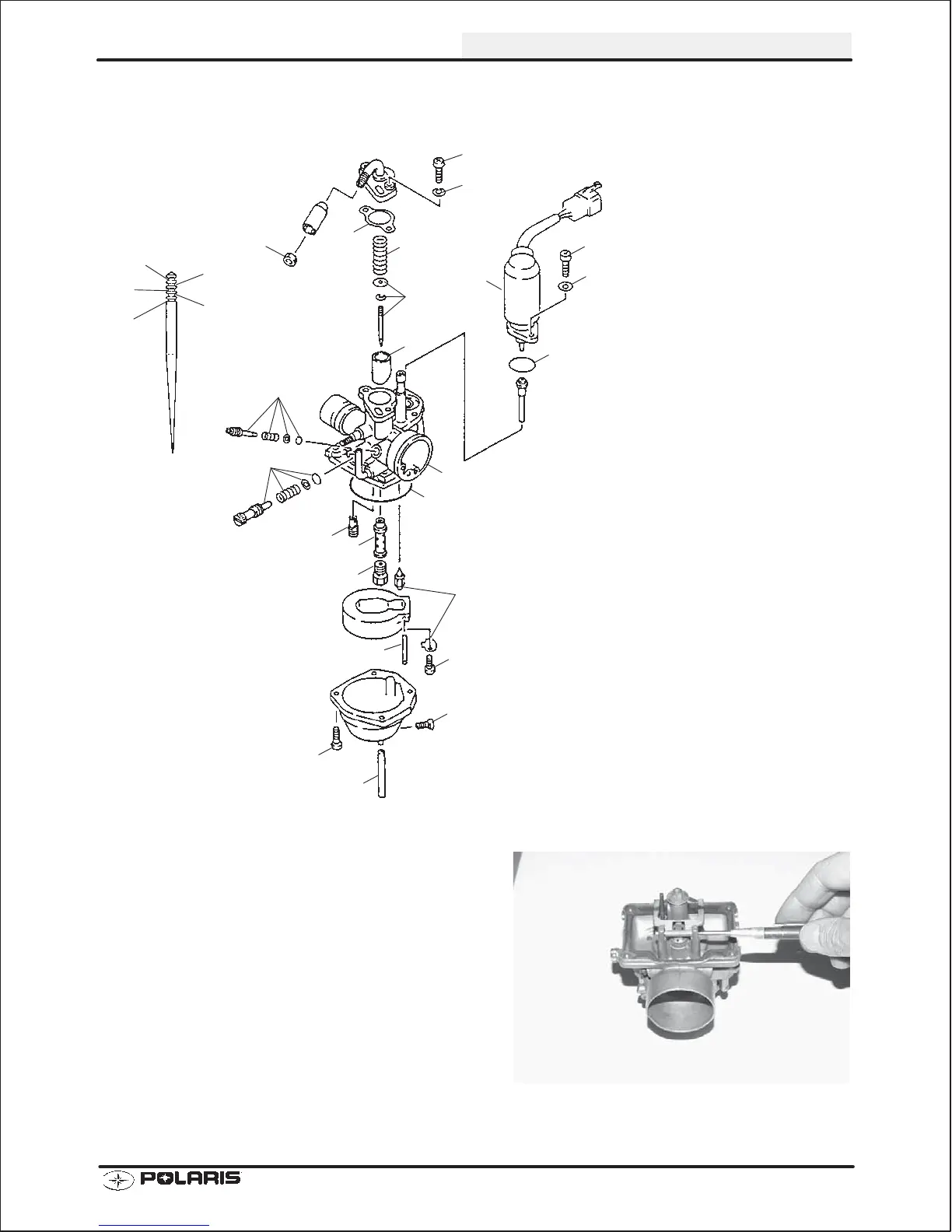

Carburetor Exploded View
1
2
3
4
5
Jet Needle “E”
Clip Position
Use a spring loaded center punch to
remove press-fit float pin.
NOTE:Set the center punch to the softest setting
(if adjustable) to avoid damage to float pin tower.
23
2
4
5
3
7
18
15
16
19
6
13
20
1
9
12
8
10
21
17
22
14
11
4
