BODY / STEERING / SUSPENSION
4.6

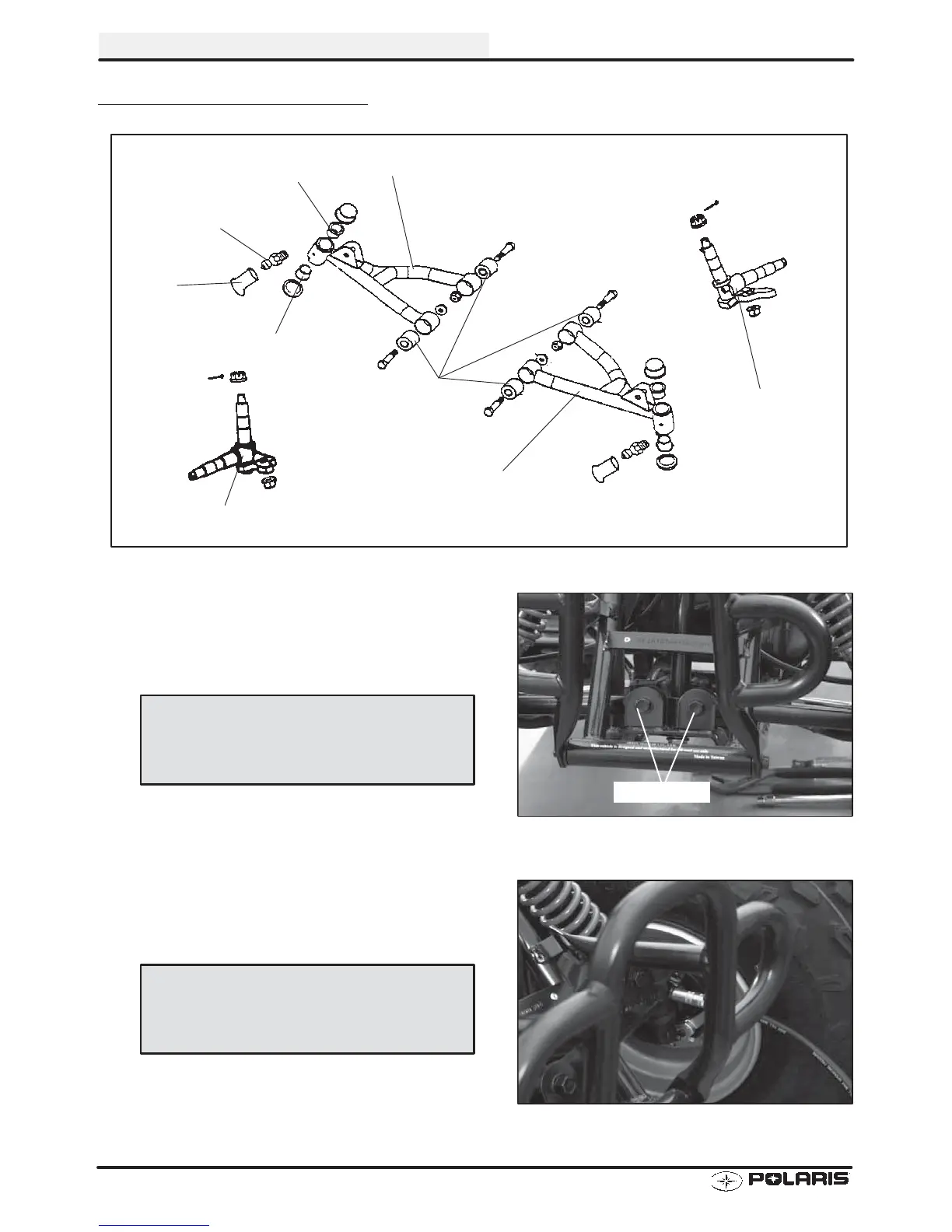

SUSPENSION A-ARMS
1. Mount the A-arms to the frame body. The A-arm
marked “R” is for right side, and A-arm marked “L”
is for left side. Torque the bolts to specification.
Mount the shock in the A-arm and torque bolt to
specification.
2. Grease spindles and mount the spindles on the
A-arms. The spindle marked “R” is for right side,
and “L” for left side. Torque the spindle nut to
specification. Insert cotter key.
A-arm Bolts
A-arm Mounting Bolt Torque:
26-30 ft.lbs. (36-40 Nm)
Shock Mounting Bolt Torque:
15 ft.lbs. (20 Nm)
Spindle Nut Torque:
40-45 ft.lbs (58-62 Nm)
Right A-arm
Bushings
Upper Spindle Bushing
Lower Spindle Bushing
Left A-arm
Right Spindle
Left Spindle
Grease Fitting
Grease
Fitting
Cap
To Next Page
