BODY / STEERING / SUSPENSION
4.14
FUEL AND OIL TANK

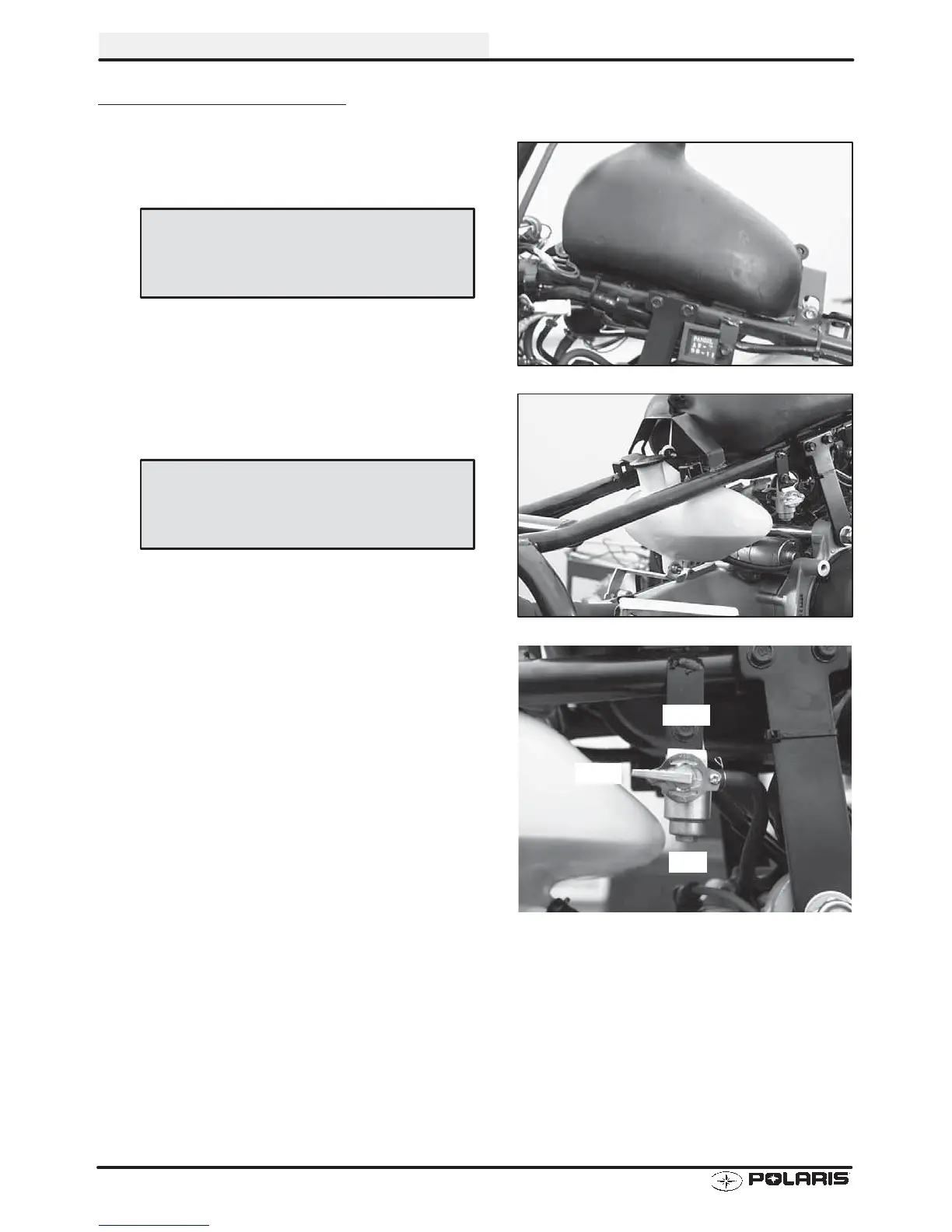

1. Install fuel tank in the frame and tighten bolts to
specification. Make sure the fuel tank pads are in
place and in good condition.
2. Install the oil tank to the frame and tighten bolts to
specification. Always fill the oil reservoir before
riding.
3. The fuel petcock has “ON”, “OFF”, and “RES”.
Make note of these positions on the petcock.
Always turn fuel off when transporting an ATV.
Fuel Tank Mounting Bolt Torque:
103 in.lbs. (12 Nm)
Oil Tank Mounting Bolt Torque:
103 in.lbs. (12 Nm)
OFF
RES
ON
