BODY / STEERING / SUSPENSION
4.10
FRONT BRAKE, CONT.
3. Mount the front brake assembly on the spindle.
4. Mount the brake drum on the backing plate
assembly and tighten the spindle nut to
specification.
5. Connect the brake cable with brake arm.
6. Install the rubber cap.

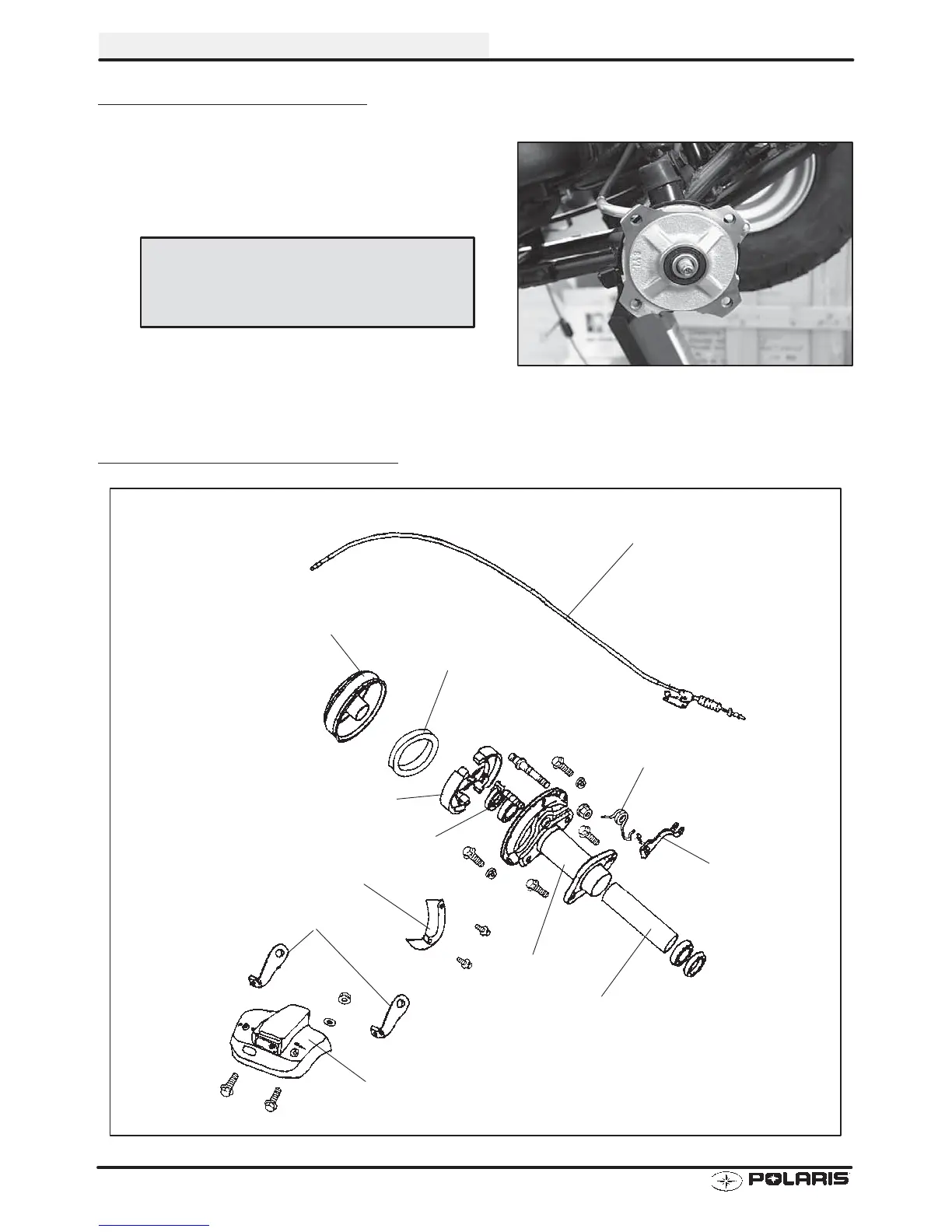

REAR BRAKE AND AXLE
Spindle Nut Torque:
42-45 ft.lbs. (58-62 Nm)
Rear Brake Cable
Rear Brake Drum
Rubber Gasket
Brake Shoes
Brake Cam Shaft
Bearing Carrier
Brake Arm Spring
Rear Brake Arm
Spacer Tube
Protective Cover
Rear Cover Plates
Rear Cover
