MAINTENANCE AND LUBRICATION
Lubrication

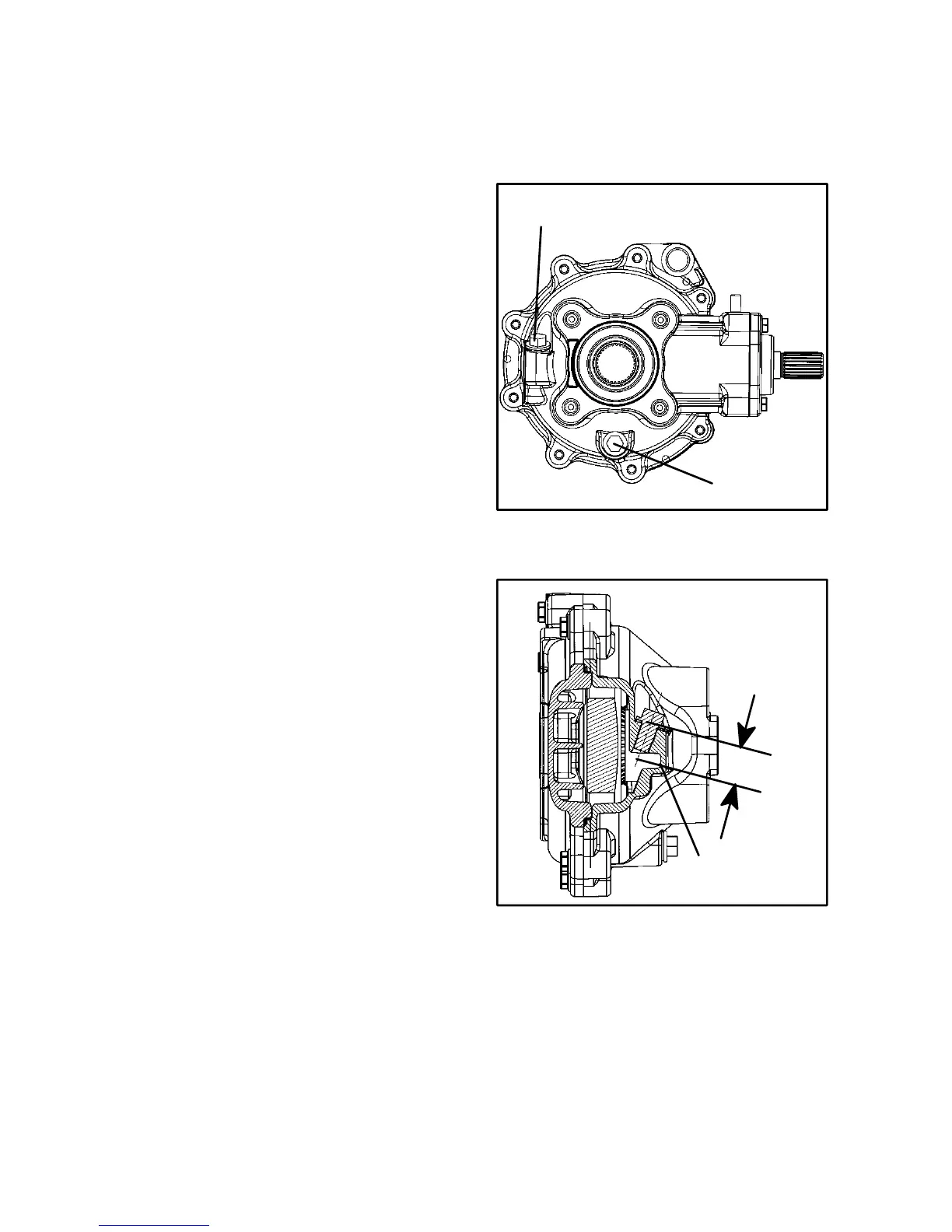

Rear Gearcase Lubrication
With the ATV on a level
surface, remove fill plug and
visually inspect the lubricant
level through the fill hole (1).
Lubricant should be kept even
with the center of the drillpoint
(2) approximately 1 5/8″ below
the top of the fill hole. NOTE:
Do not add lubricant to the
bottom of the fill plug threads.
The correct gearcase lubricant to
use is GL5 80-90 Weight Gear
Lube.
Oil Changing Procedure
1. Remove drain plug (3).
Catchanddiscardusedoil
properly.
2. Clean and reinstall the drain
plug with a new sealing
washer and tighten securely
(14 ft. lbs./1.93 kgm).
3. Remove fill plug and add
10 ounces (300 ml of GL5
80-90 Weight gear Lube and
inspect oil level. Oil level
should be kept even with
the center of the drill point
(approximately 1 5/8″
below the top of the fill
hole).
4. Reinstall the fill plug.
Tighten securely (14 ft.
lbs/1.93 kgm).
5. Check for leaks
