PREPARATION FOR INSTALLING THE EQUIPMENT
33
Anchoring of the equipment
It is the customer’s responsibility to dimension correctly posts anchoring to the foundation,
guaranteeing stability towards horizontal actions.
The equipment must be anchored to a solid and leveled surface (slab), see slab recommendations at
the “Site basis” section.

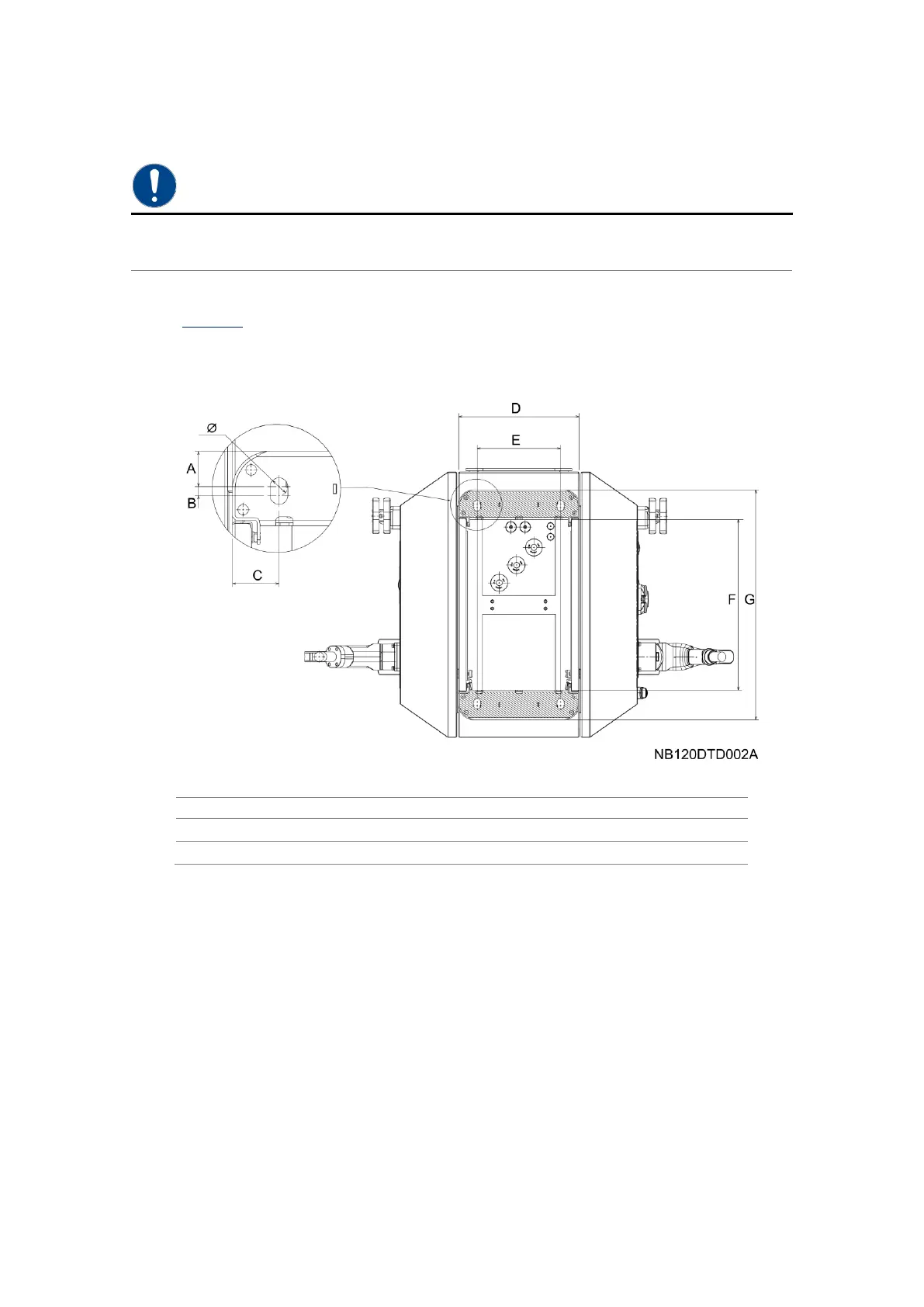

The following image (bottom-up view) shows the location and diameter of the charger´s anchoring holes.
They are located at the foot of the charger.
GENERAL DIMENSIONS
A
B
C
D
E
F
G
ø
mm
40
10
52,5
340
235
482
650
20
in.
1.57
0.39
20.67
13.39
9.25
18.98
25.59
0.79
It is recommended to use an expansive anchoring M16x145, with a tightening torque of 120Nm
(manufacturer’s recommendation). To guarantee the proper fixing of the equipment, install a total of 4
anchors.
NOTICE
