Page 25 of 68
Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)
Shrinkage mode: Percentage; ABS
Percentage: percent shrinkage scales the averaged measured diameter by the Shrinkage.
Output diameter = (Measured diameter-Preset core) x (1– Shrinkage percentage)
ABS: absolute shrinkage mode deducts the Shrinkage from the averaged measured diameter.
Output diameter = (Measured diameter) – (Shrinkage)
(Note that if the calculated value is negative, the output diameter will be displayed 0.)
MEASUREMENT
Operation mode: Solid; Glass; Helix
Solid: Measure the diameter of opaque objects.
Glass: Measure the diameter of transparent objects such as glass rod (outermost edge detection).
Helix: Measure the envelope diameter that encloses a twisted or braided multi-core cable.
Requires provision of line speed.
SMFD (Single Scan Flaw Detection) is NOT available in “Helix” mode.
Units: Metric; Imperial
Metric: Millimetre (mm) and metre (m) measurement units.
Imperial: Inch (in) and feet (ft) measurement units.

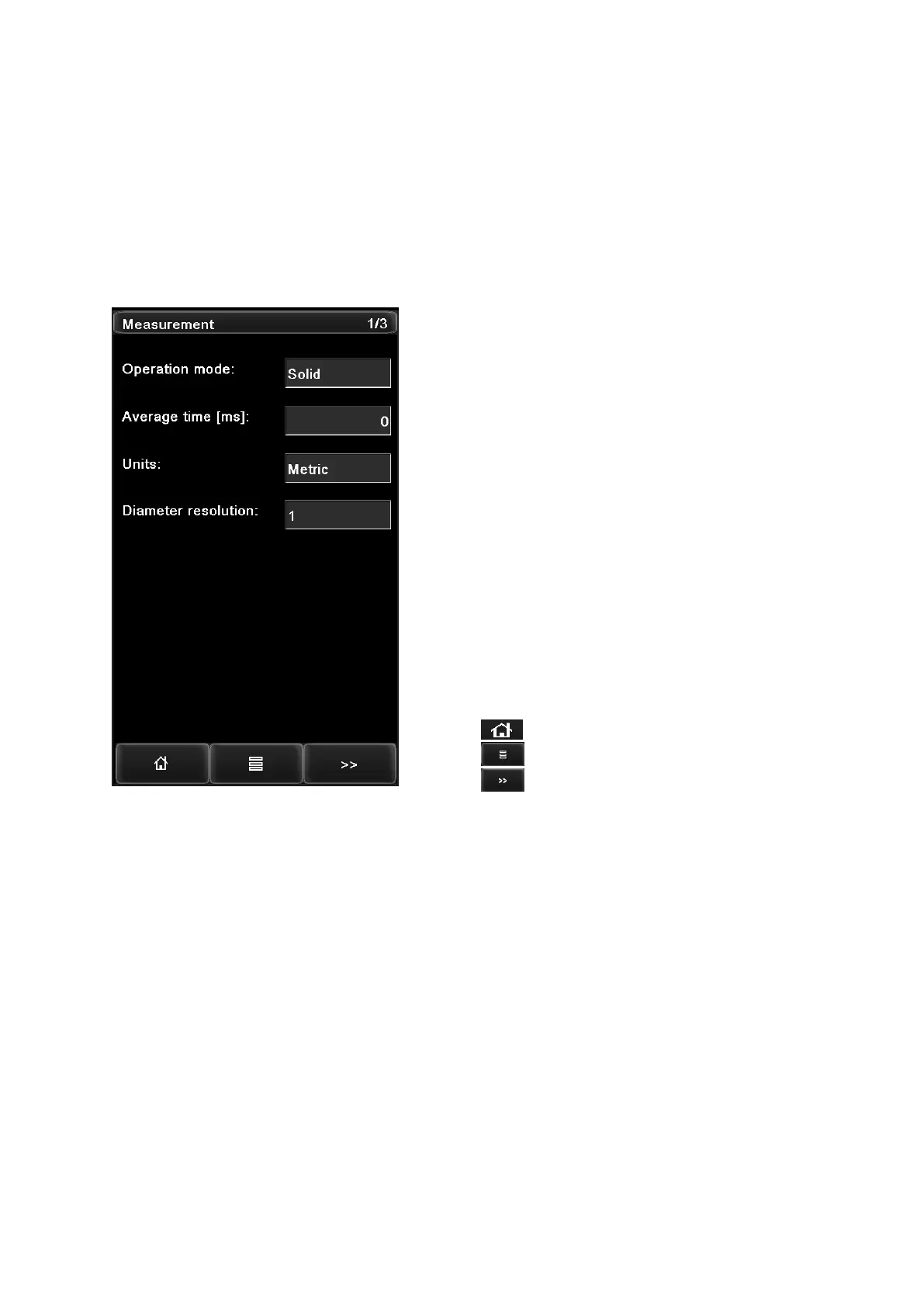

Press the Measurement icon on the Menu page to access
the measurement page 1.
- Select the operation mode from options: Solid; Glass;
Helix.
- Set the time window over which diameter measurements
are averaged.
- Select the measurement unit from options: Metric; Imperial.
- Select diameter resolution from options: 1; 0.1; 0.01; 0.001;
0.0001.
Press the button to return to the home page.
Press the button to access the function menu page.
Press the button to advance to the next page.
To Next Page
