Quectel BC95 Hardware Design

NB-IoT Module Series
BC95 Hardware Design
BC95_Hardware_Design Confidential / Released 20 / 51
VBAT
RESET
Delay>535us

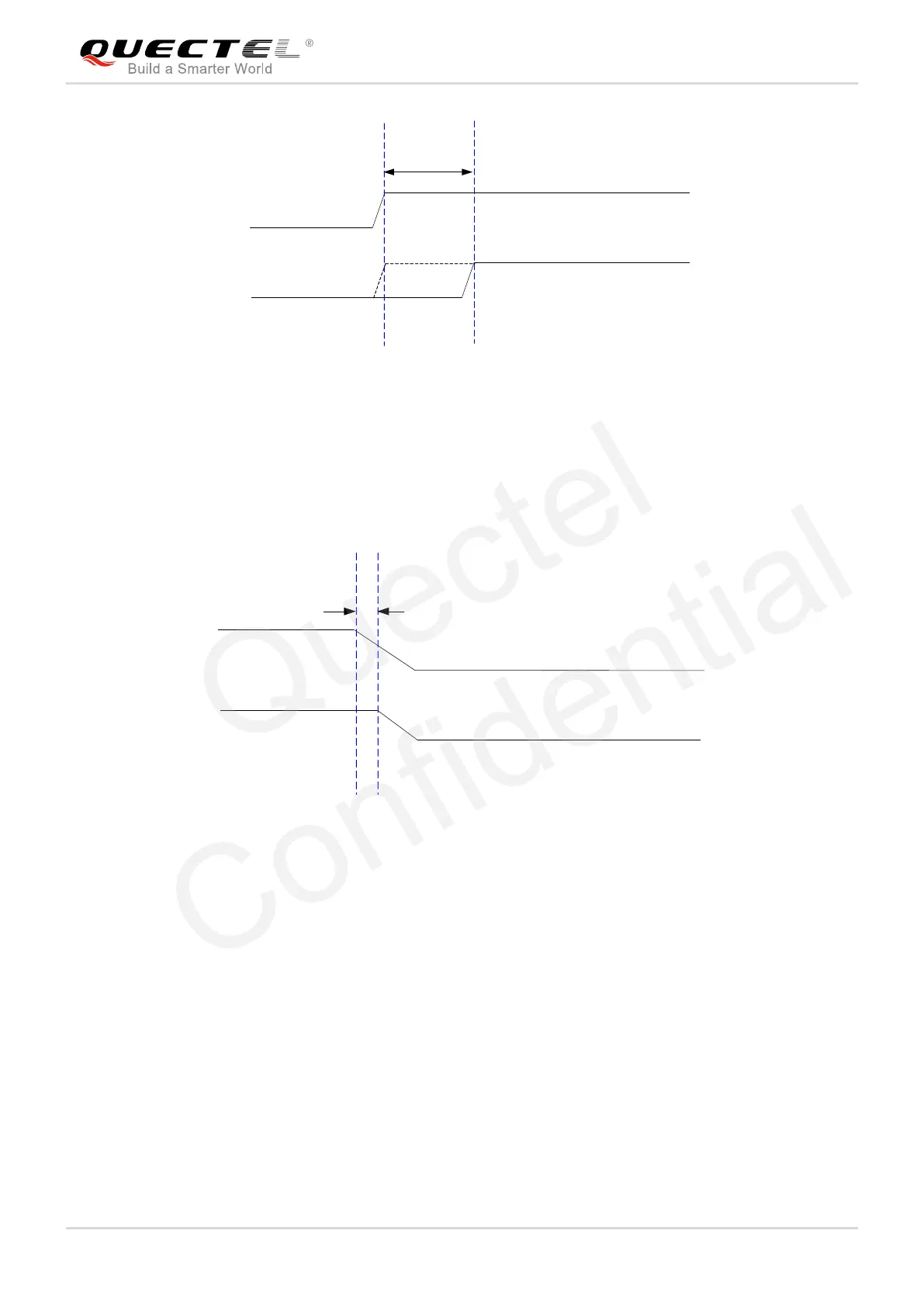

Figure 4: Turn-on Timing
3.6.2. Power down
The module can be turned off by shutting down the VBAT power supply.
VBAT
RESET
Delay>5ms
Figure 5: Turn-off Timing
3.6.3. Reset the Module
The module can be reset by two ways. The reset timing is illustrated as the following table.
 Hardware
Reset the module by driving the reset pin to a low level voltage for a certain time.
 Software
Reset the module using command “AT+NRB”, please refer to document [5].
