7.3.
Packaging
The
modules
are
stored
inside
a
vacuum-sealed
bag
which
is
ESD
protected.
It
should
not
be
opened
until the dev
i
ces are ready
to be soldered ont
o the a
pplication.
7.3.1.
Tape and Reel Packaging
The reel is 3
30mm in diameter a
nd each reel cont
ains 250
modules.

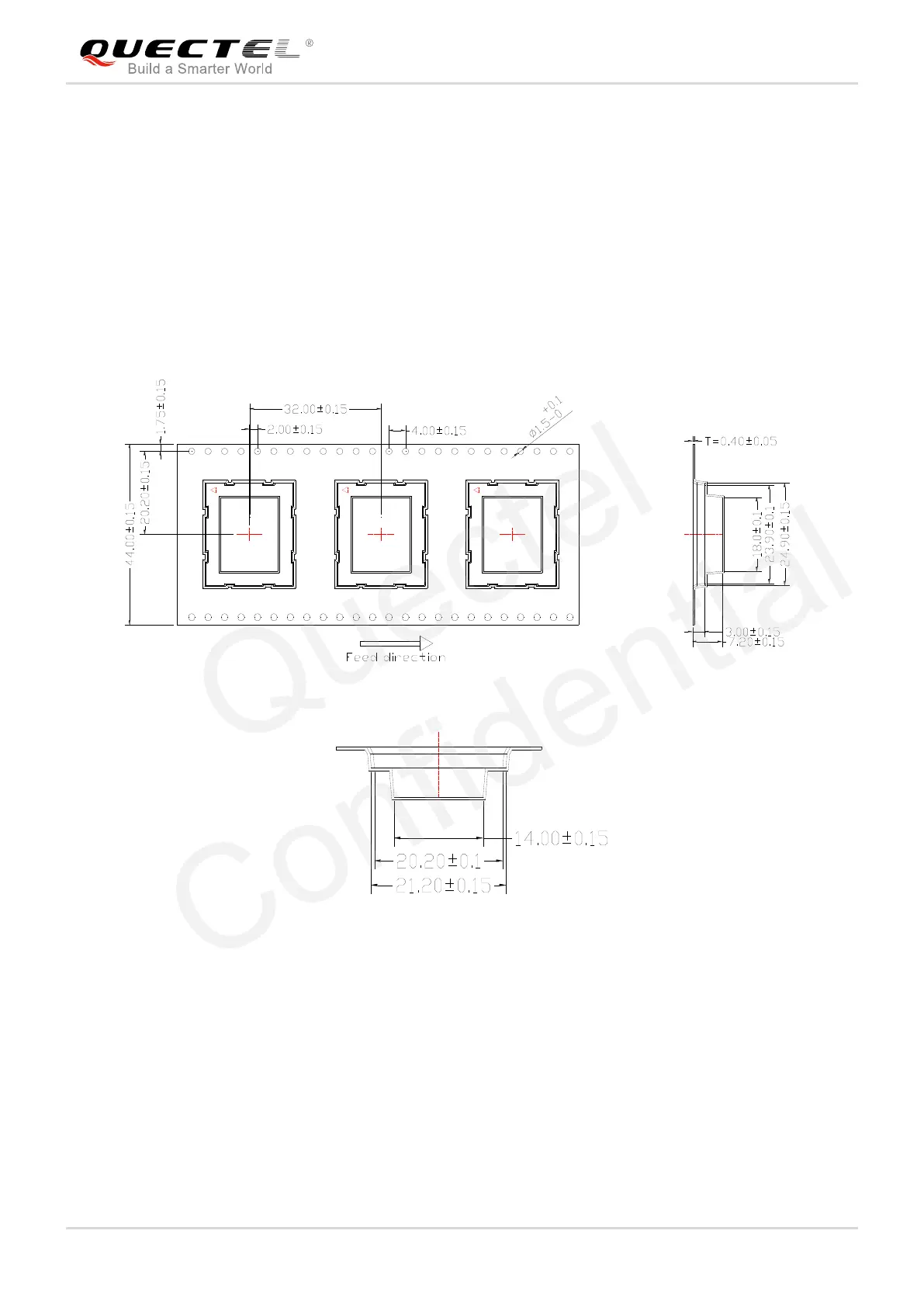

Figure
30
: Tape Dime
nsions
Quectel
Confidential
47
49
