NB-IoT Module Series
BC95 Hardware Design
BC95_Hardware_Design Confidential / Released 36 / 51
4.7. Install the Antenna with RF Connector

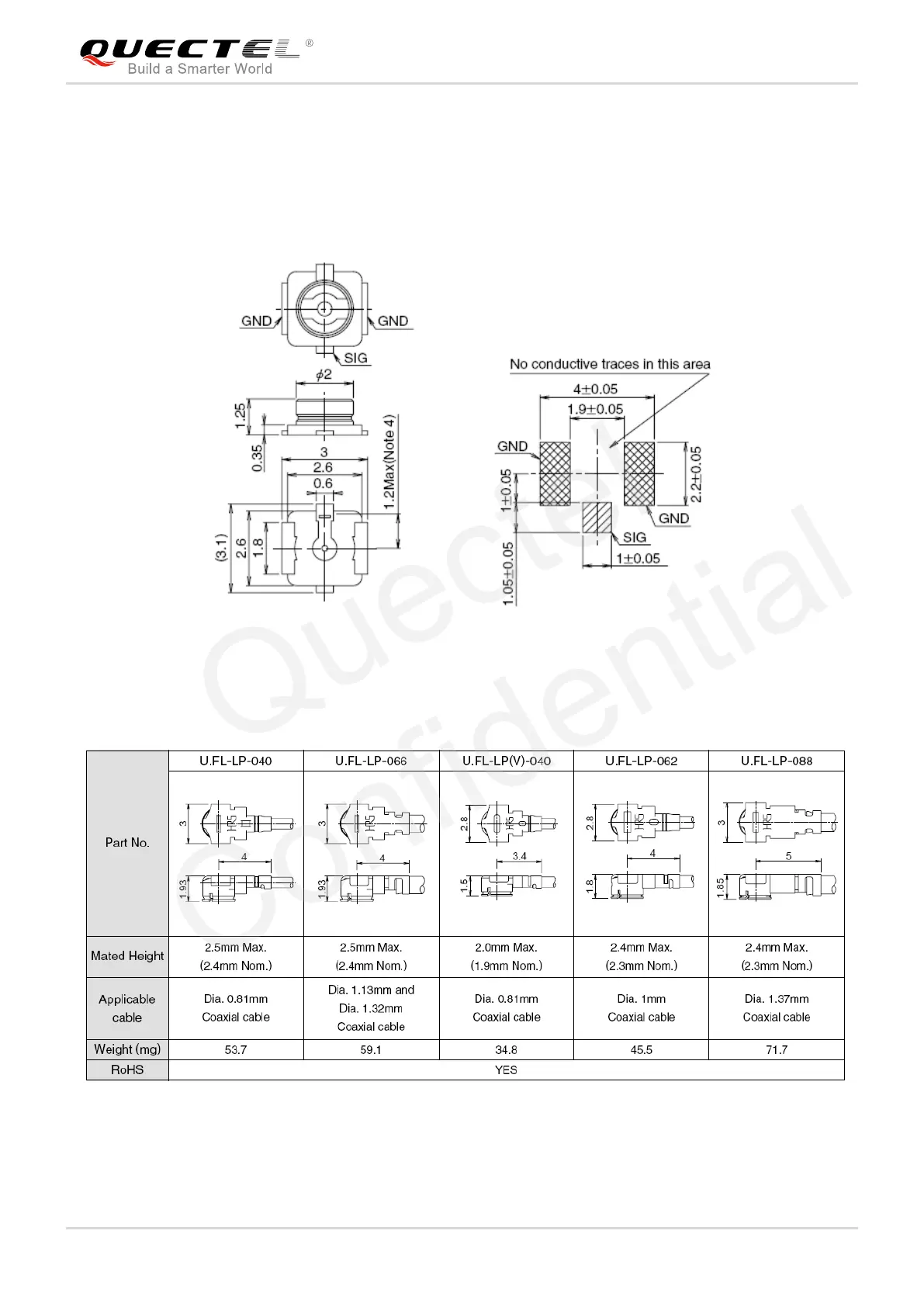

The following figure is the antenna installation with RF connector provided by HIROSE. The
recommended RF connector is UF.L-R-SMT.
Figure 21: Dimensions of the UF.L-R-SMT Connector (Unit: mm)
U.FL-LP series connector listed in the following figure can be used to match the UF.L-R-SMT.
Figure 22: Mechanicals of UF.L-LP Connectors
