Quectel BG96 User Manual

LPWA Module Series
BG96 Hardware Design
BG96_Hardware_Design 53 / 79
Table 29: GNSS Frequency

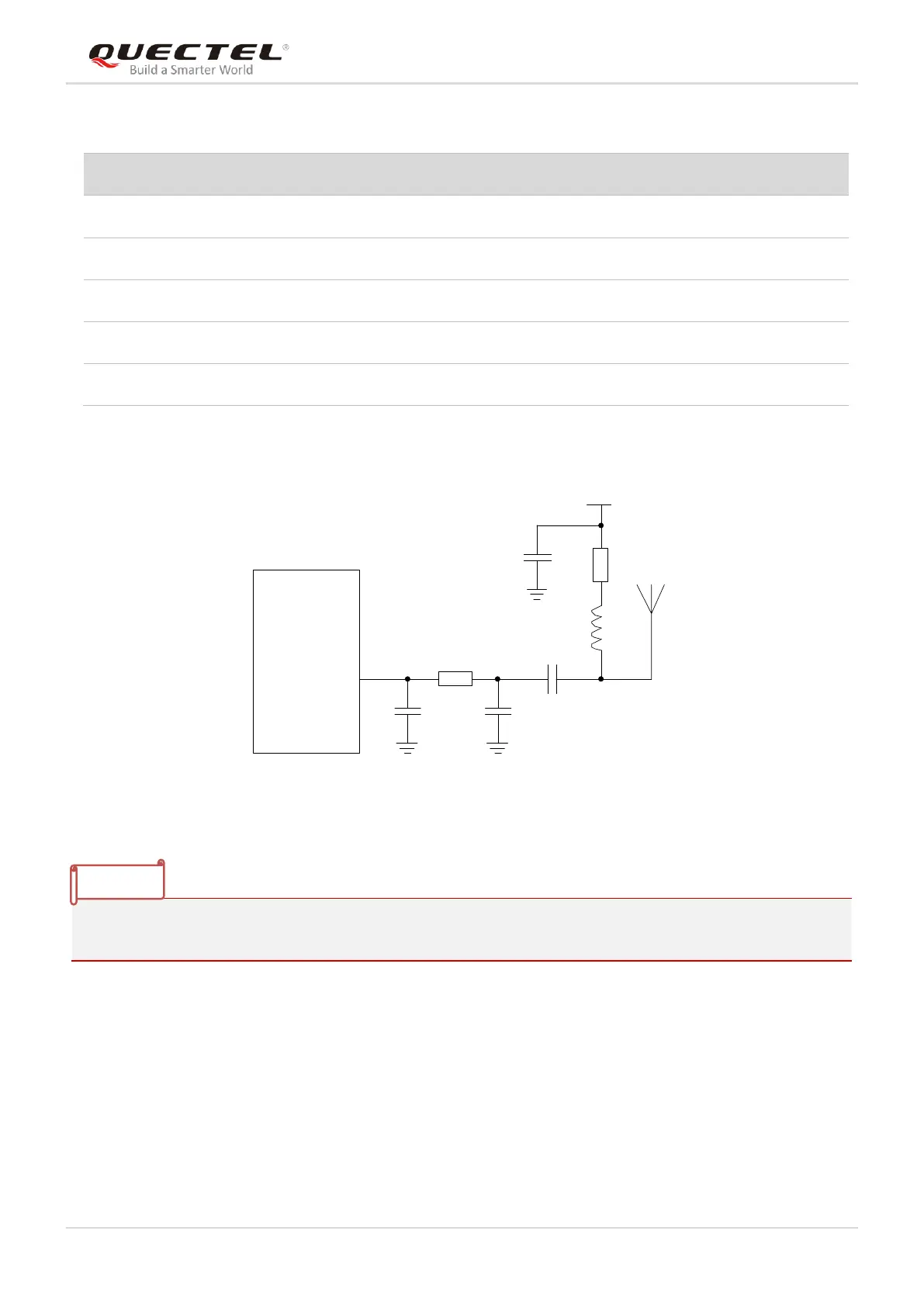

A reference design of GNSS antenna interface is shown as below.
GNSS
Antenna
VDD
Module
ANT_GNSS
47nH
10R
0.1uF
0R
NM NM
100pF
Figure 27: Reference Circuit of GNSS Antenna Interface
1. An external LDO can be selected to supply power according to the active antenna requirement.
2. If the module is designed with a passive antenna, then the VDD circuit is not needed.
5.3. Antenna Installation
5.3.1. Antenna Requirements
The following table shows the requirements on main antenna and GNSS antenna.
Type
Frequency
Unit
GPS
1575.42±1.023
MHz
GLONASS
1597.5~1605.8
MHz
Galileo
1575.42±2.046
MHz
BeiDou
1561.098±2.046
MHz
QZSS
1575.42
MHz
NOTES
