Quectel EG915U Series User Manual

LTE Standard Module Series
EG915U_Series_Hardware_Design 14 / 81
Position Fixing
⚫ Support Wi-Fi Scan
Temperature Range
⚫ Operation temperature range: -35 to +75 °C
4
⚫ Extended temperature range: -40 to +85 °C
5
⚫ Storage temperature range: -40 to +90 °C
Firmware Upgrade
⚫ USB interface and DFOTA
RoHS
⚫ All hardware components are fully compliant with EU RoHS directive

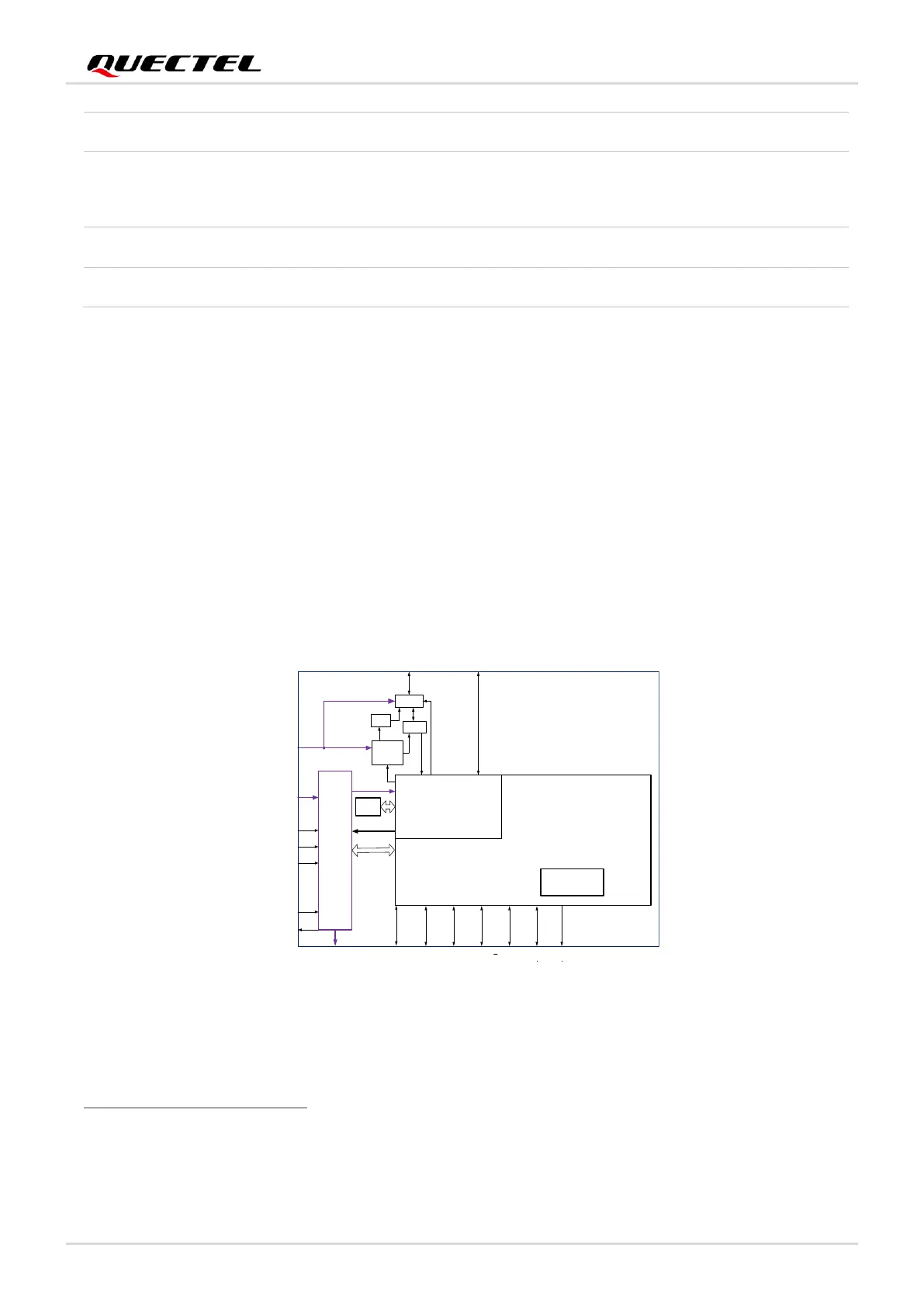

2.3. Functional Diagram
The following figure shows a block diagram of the module and illustrates the major functional parts.
⚫ Power management
⚫ Baseband
⚫ Flash
⚫ Radio frequency
⚫ Peripheral interfaces
Baseband
PMIC
Transceiver
PA
PAM
ANT_MAIN
VBAT_RF
PWRKEY
ADCs
VDD_EXT 2x(U)SIM PCM UARTsI2C
Control
Duplex
Tx
PRx
STATUS
RESET_N
SAW
ANT_BT/WIFI_SCAN
26 MHz
DCXO
SPI Nor Flash (64Mb)
PSRAM (128Mb)
MIC
32 kHz Clock
USB SPI
SPK
Control
VBAT_BB
Figure 1: Functional Diagram
4
Within operating temperature range, the module meets 3GPP specifications.
5
Within extended temperature range, the module remains the ability to establish and maintain functions such as voice,
SMS, data transmission, etc., without any unrecoverable malfunction. Radio spectrum and radio network are not influenced,
while one or more specifications, such as P
out
, may exceed the specified tolerances of 3GPP. When the temperature
returns to the operating temperature range, the module meets 3GPP specifications again.
