Quectel EG915U Series User Manual

LTE Standard Module Series
EG915U_Series_Hardware_Design 36 / 81
3.7. Reset
The RESET_N pin can be used to reset the module. The module can be reset by pulling the RESET_N
pin low for at least 100 ms and then releasing it. The RESET_N signal is sensitive to interference, so it is
recommended to route the trace as short as possible and surround it with ground.
Table 8: Pin Description of RESET_N
The recommended circuit is similar to the PWRKEY control circuit. An open drain/collector driver or button
can be used to control the RESET_N.
Reset pulse
RESET_N
4.7K
47K
≥ 100 ms

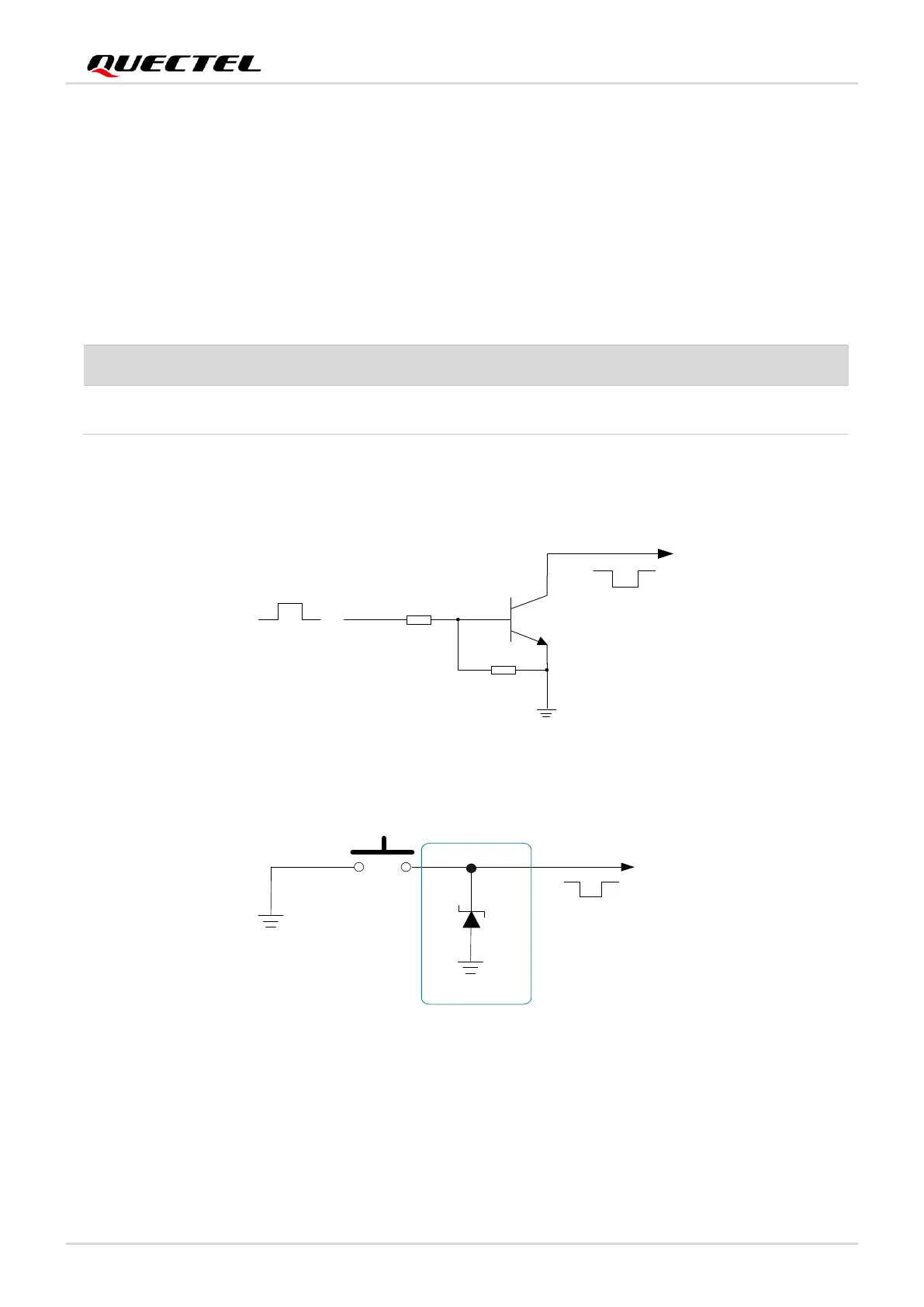

Figure 13: Reference Circuit of RESET_N by Using Driving Circuit
RESET_N
S2
Close to S2
TVS
Figure 14: Reference Circuit of RESET_N by Using Button
The reset scenario is illustrated in the following figure.
Pin Name
Pin No.
I/O
Description
Comment
RESET_N
17
DI
Reset the module
VBAT power domain.
If unused, keep it open.
